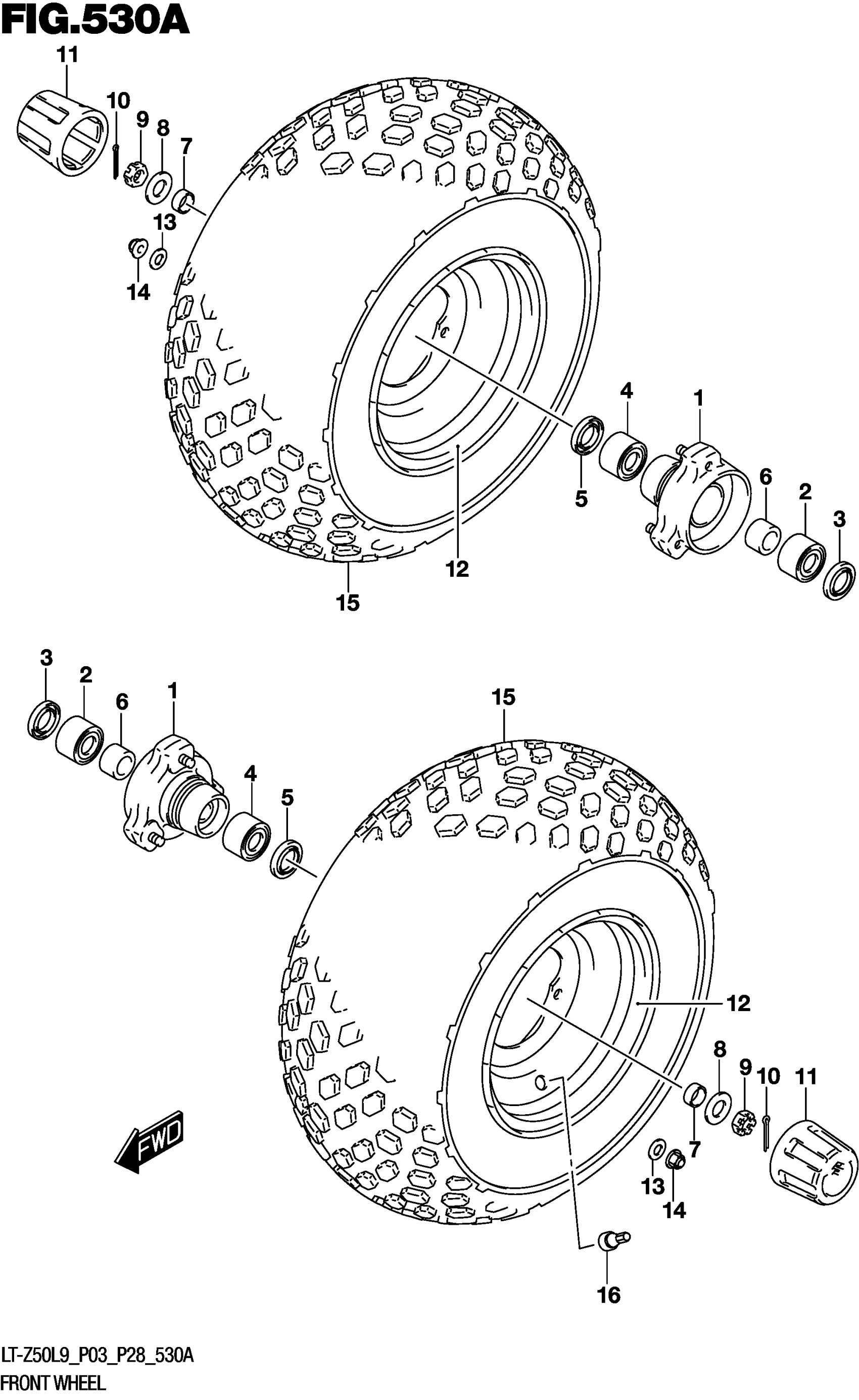

Suzuki LT-Z50L9 (2019) FRONT WHEEL Diagram

#

Description
Price

1

HUB,FRONT WHEEL

54110-43F00

Unavailable

2

BEARING (17X40X12)

09262-17031

$33.65

3

SEAL,OIL (22X40X6)

09283-22028

$8.52

4

BEARING (15X35X11)

09262-15024

$24.83

5

OIL SEAL (20X35X5)

09283-20057

$6.02

6

SPACER,FRONT HUB BEARING INNE

54731-40B00

$4.82

7

SPACER,FRONT AXLE

54741-40B00

$4.82

8

WASHER

08322-0114B

$2.70

9

NUT

08314-4014B

$4.24

10

PIN

04111-3025A

$1.49

11

CAP,WHEEL CENTER

54725-18A00

$10.28

12

RIM,FR WHEEL (7X6.0AT,SILVER)

55310-43F00-13L

$213.37

12

RIM,FR WHEEL (7X6.0AT,SILVER)

55310-43F00-13L

$213.37

13

WASHER

08322-01087

$2.13

14

NUT

08319-3108A

$2.32

15

TIRE (AT16X8-7)

55110-43F10

$191.97

16

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85
