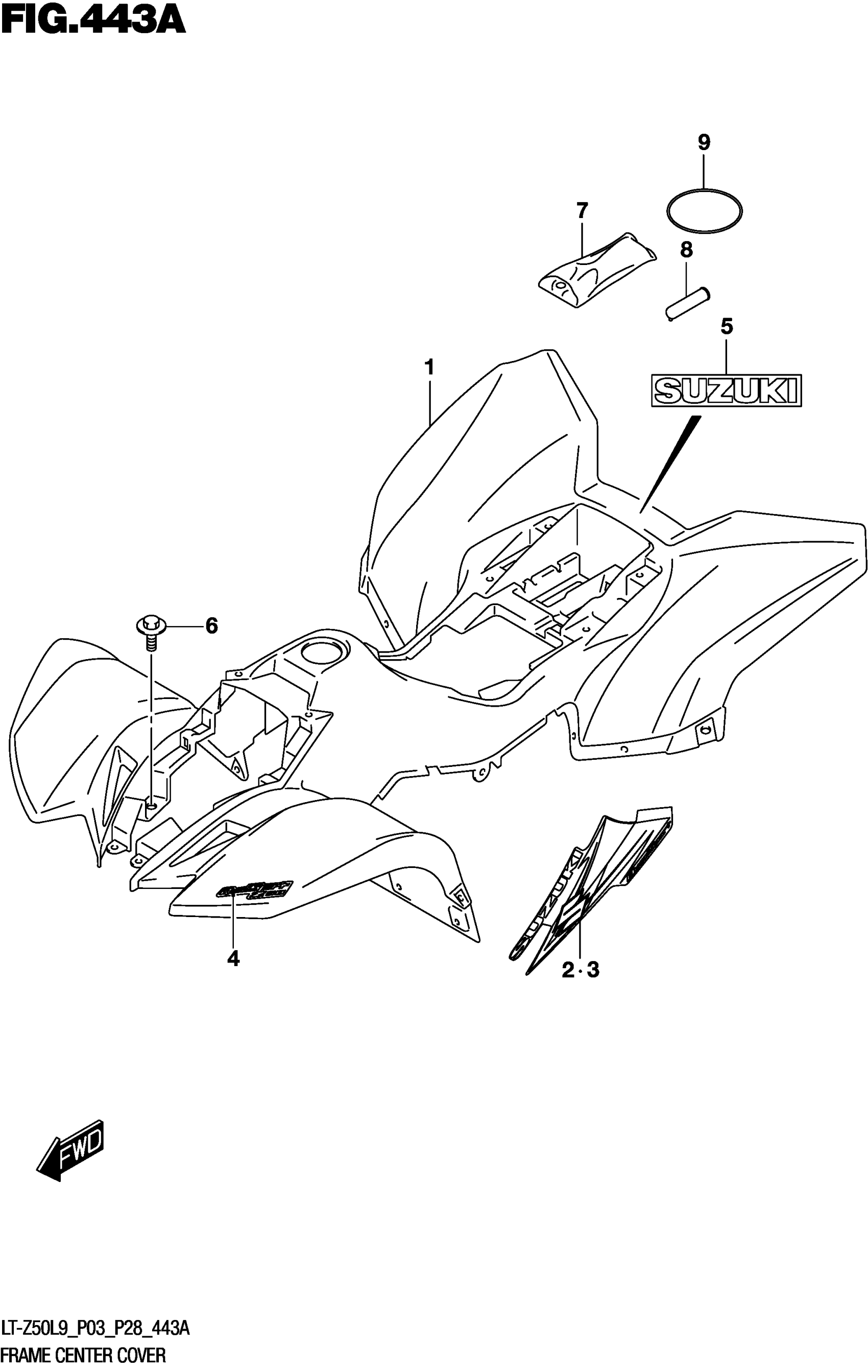

Suzuki LT-Z50L9 (2019) FRAME CENTER COVER Diagram

#

Description

Price

1

COVER,FRAME CTR (YELLOW)

47311-43G00-YU1

$472.28

2

TAPE, FRAME COVER CENTER RH

68135-43GH0-BTT

$120.97

3

TAPE, FRAME COVER CENTER LH

68145-43GH0-BTT

$120.97

4

EMBLEM,FRAME COVER FRONT (WHI

68131-43G00-DCP

$23.47

5

EMBLEM,SUZUKI"" (YELLOW,BLACK

68721-09A00-GY8

$12.82

5

EMBLEM,SUZUKI"" (YELLOW,BLACK

68721-09A00-GY8

$12.82

6

BOLT (6X18)

09111-06081

$4.09

7

TOOL ASSY This part replaces 09800-21004.

09800-21061

$35.48

8

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

9

O-RING (D:3.1,ID:84.4)

09280-85003

$7.25
