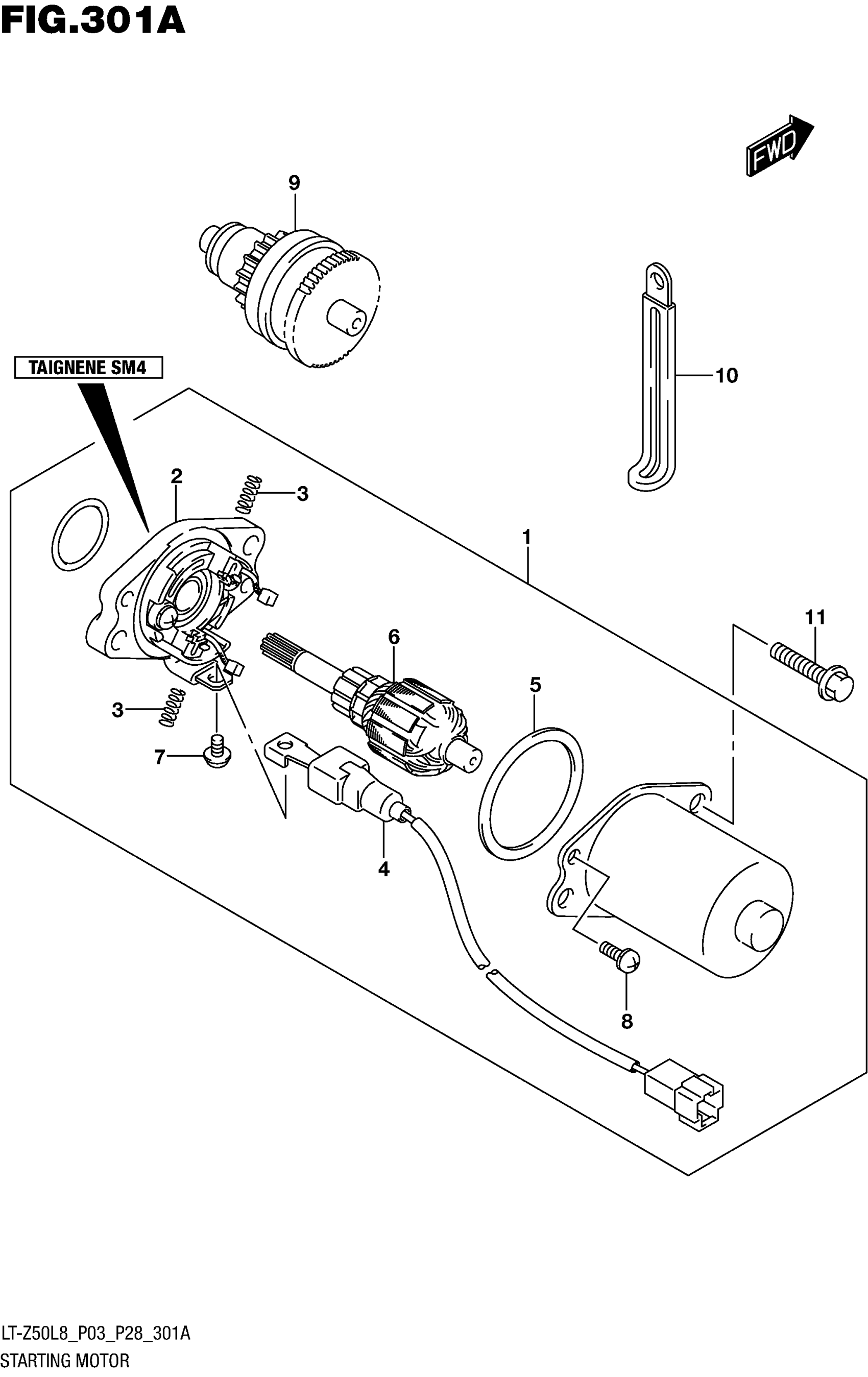

Suzuki LT-Z50L8 (2018) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY,STARTING This part replaces 31100-22G11.

31100-22G00

$351.10

2

.HOLDER ASSY,BRUSH This part replaces 31130-22G10.

31130-37B01

Unavailable

3

.SPRING, BRUSH

31135-22G10

Unavailable

4

.WIRE, LEAD

31142-22G10

$52.62

5

.GASKET

31157-22G10

$7.00

6

.ARMATURE ASSY

31311-22G10

Unavailable

7

.SCREW

02112-3406A

$1.99

8

.SCREW

02112-3410A

$2.20

9

PINION ASSY,STARTING MOTOR This part replaces 31370-22G11.

31370-22G00

$178.35

10

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

11

BOLT, STARTING MOTOR

01547-0625B

$2.45
