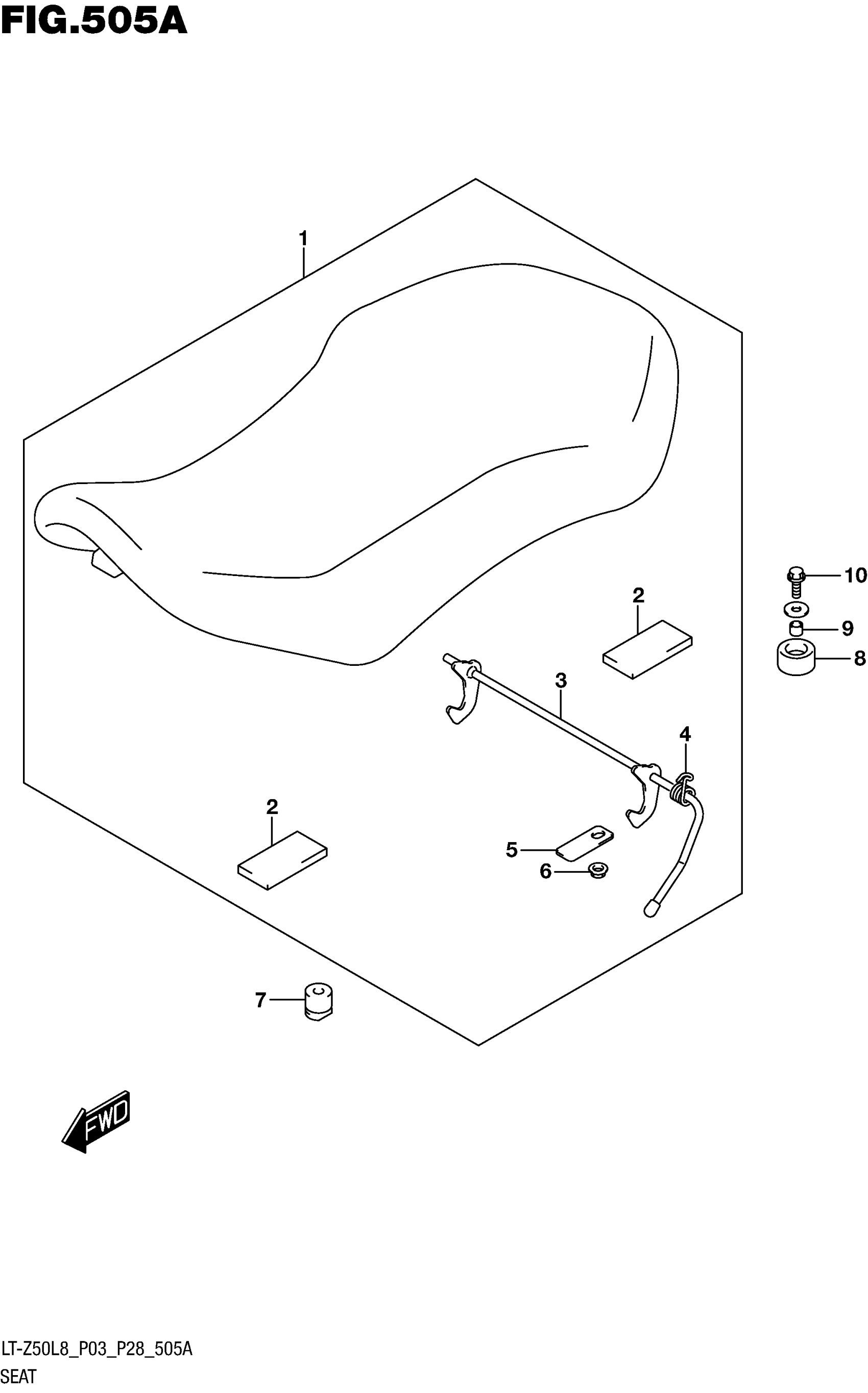

Suzuki LT-Z50L8 (2018) SEAT (LT-Z50L8 P03) Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-43G00-6BY

$390.28

2

.CUSHION

45146-43G00

Unavailable

3

.CLAMP, SEAT LOCK

45210-43G00

Unavailable

4

.SPRING, SEAT LOCK

45135-43F00

$6.83

5

.PLATE, SEAT LOCK RH

45222-43G00

Unavailable

6

.NUT

08316-1006B

$2.50

7

CUSHION,SEAT MOUNT FRONT

45141-43G00

$6.75

8

CUSHION, SEAT MOUNT REAR

45141-09F00

$4.70

9

SPACER

09180-06261

$1.89

10

BOLT

01550-0616B

$2.53
