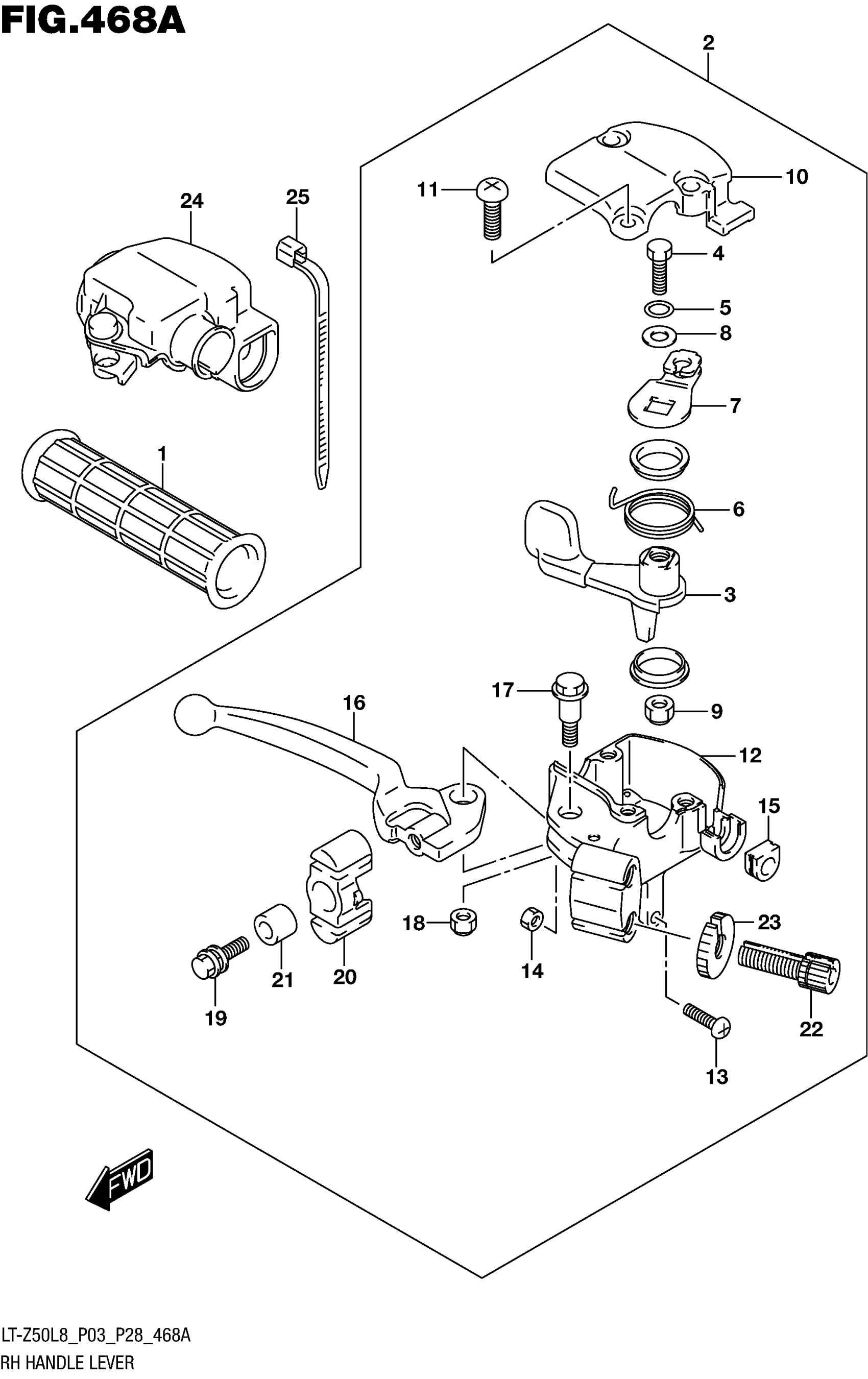

Suzuki LT-Z50L8 (2018) RH HANDLE LEVER Diagram

#

Description
Price

1

GRIP

57211-04600

$4.93

2

LEVER ASSY,FRONT BRAKE

57300-43F00

$129.15

3

.LEVER, THROTTLE

57112-43F00

$21.83

4

.BOLT

01550-0620B

$2.39

5

.BUSH

57136-43F00

Unavailable

6

.SPRING, RETURN

57134-43F00

$5.40

7

.ARM, THROTTLE LEVER

57114-43F00

Unavailable

8

WASHER (6.5X18X1.0)

09160-06028

$1.49

9

.NUT

08319-2106B

$2.32

10

.CASE, UPPER

57121-43F00

$30.47

11

.SCREW

02112-0516B

$1.93

12

.CASE, LOWER

57131-43F00

$40.67

13

.SCREW

02112-0520B

$1.84

14

NUT

08310-0005A

$1.84

15

.DUST SEAL

58333-04200

Unavailable

16

.LEVER, FRONT BRAKE

57421-43F00

$11.07

17

.BOLT, PIVOT

57431-43F00

$5.33

18

.NUT

08319-2106A

$1.91

19

BOLT

01550-0616B

$2.48

20

.EQUALIZER

57396-43F00

$16.38

21

.SPACER

57397-43F00

$7.80

22

.ADJUSTER, CABLE

57441-43F00

$15.25

23

.NUT

57442-43F00

$15.25

24

COVER,THROTTLE CASE

57339-43G00

$12.90

25

CLAMP (L:145)

09407-14407

$3.57
