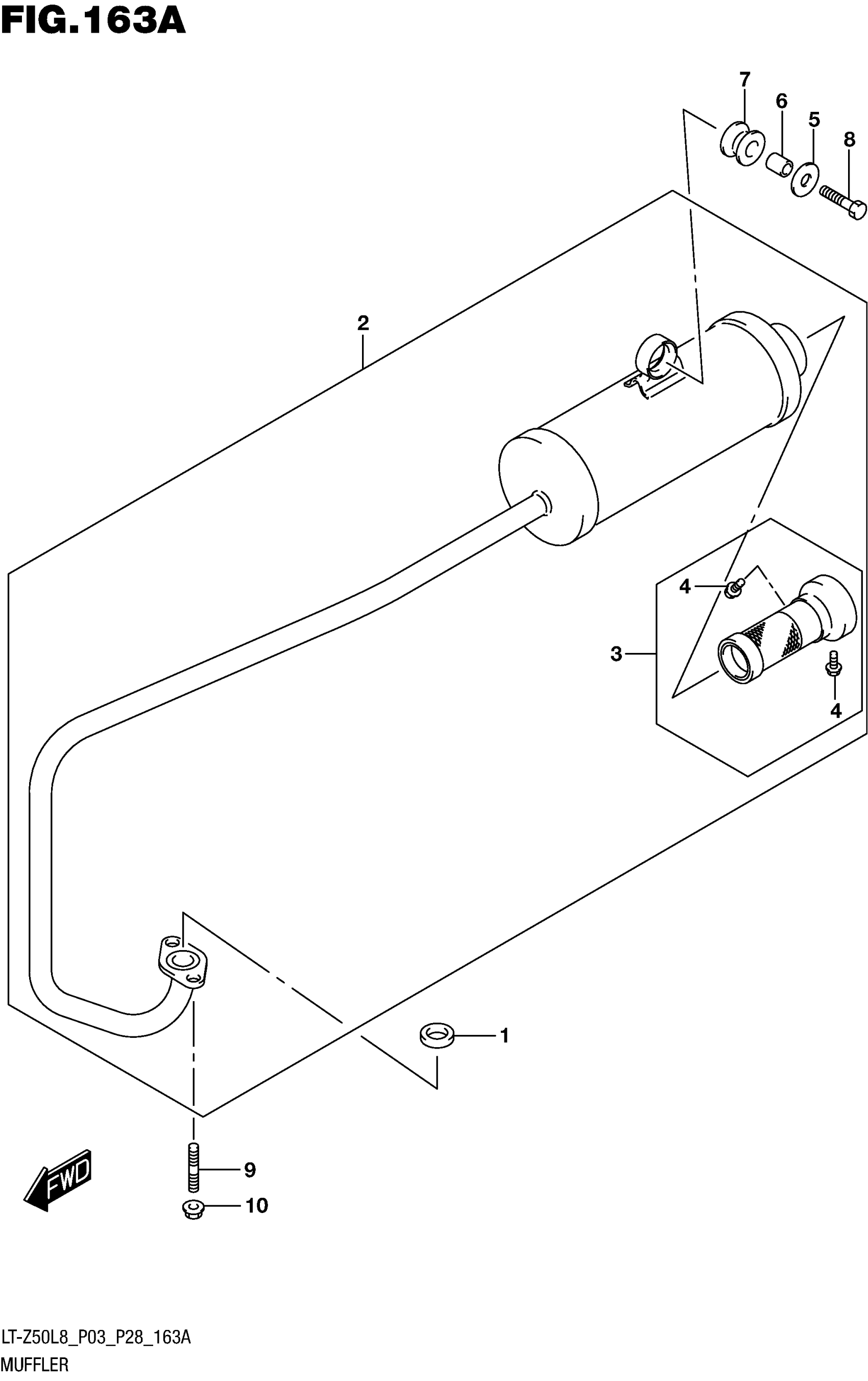

Suzuki LT-Z50L8 (2018) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHA PIPE

14181-22G01

$6.08

2

MUFFLER ASSY

14301-43G00

$354.71

3

.ARRESTER SET This part replaces 14850-43810.

14850-43811

$32.02

4

..BOLT

01547-0610B

$2.47

5

WASHER, (8.5X26X1.6)

09160-08151

$2.00

6

SPACER, (8.5X12X17.5)

09180-08194

$2.80

7

CUSHION

09320-12043

$7.20

8

BOLT, MUFFLER SUPPORT

01500-0835B

$2.80

9

BOLT, STUD

01421-0616B

$2.55

10

NUT

08316-1006B

$2.50
