Description

Price

1

COVER,CYLINDER HEAD

11171-22G00

$14.00

2

GASKET, CYL HEAD COVER

11173-22G00

$4.51

3

BOLT, (6X12)

09103-06172

$1.66

4

HEAD,CYLINDER

11110-22G00

$202.90

5

GASKET, CYLINDER HEAD

11141-22G10

$6.74

6

BOLT, (6X50)

09103-06101

$2.72

7

PIN

04211-09109

$1.70

8-1

SPARK PLUG,CR6HSA (CR6HSA) | NGK

09482-00406

$3.01

8-2

SPARK PLUG,U20FSR-U (U20FSR-U | DENSO

09482-00407

Unavailable

9

PIPE,INTAKE

13111-43G00

$62.78

10

INSULATOR,INTAKE PIPE

13117-43G00

$7.03

11

O RING (D:1.9 ID:14.5)

09280-15006

$2.80

12

O RING ( D:1.9 ID:21.8)

09280-21010

$2.10

13

BOLT, REAR

01550-0620B

$2.44

14

BOLT, FRONT

07120-0620B

$2.82

15

SEAL,OIL (4X11.6X7.9)

09289-04006

$7.55

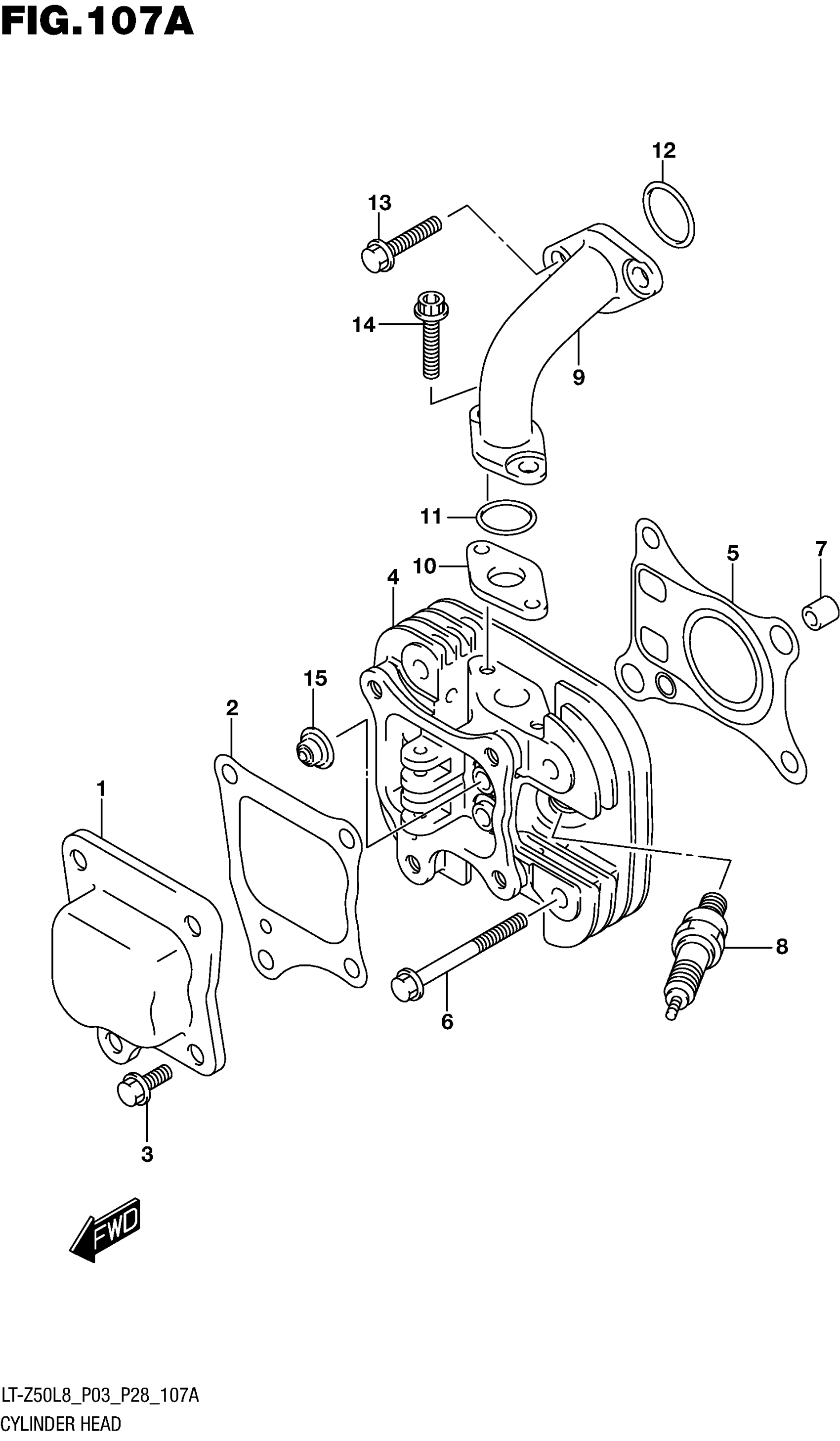

Suzuki LT-Z50L8 (2018) CYLINDER Diagram
