Partiron

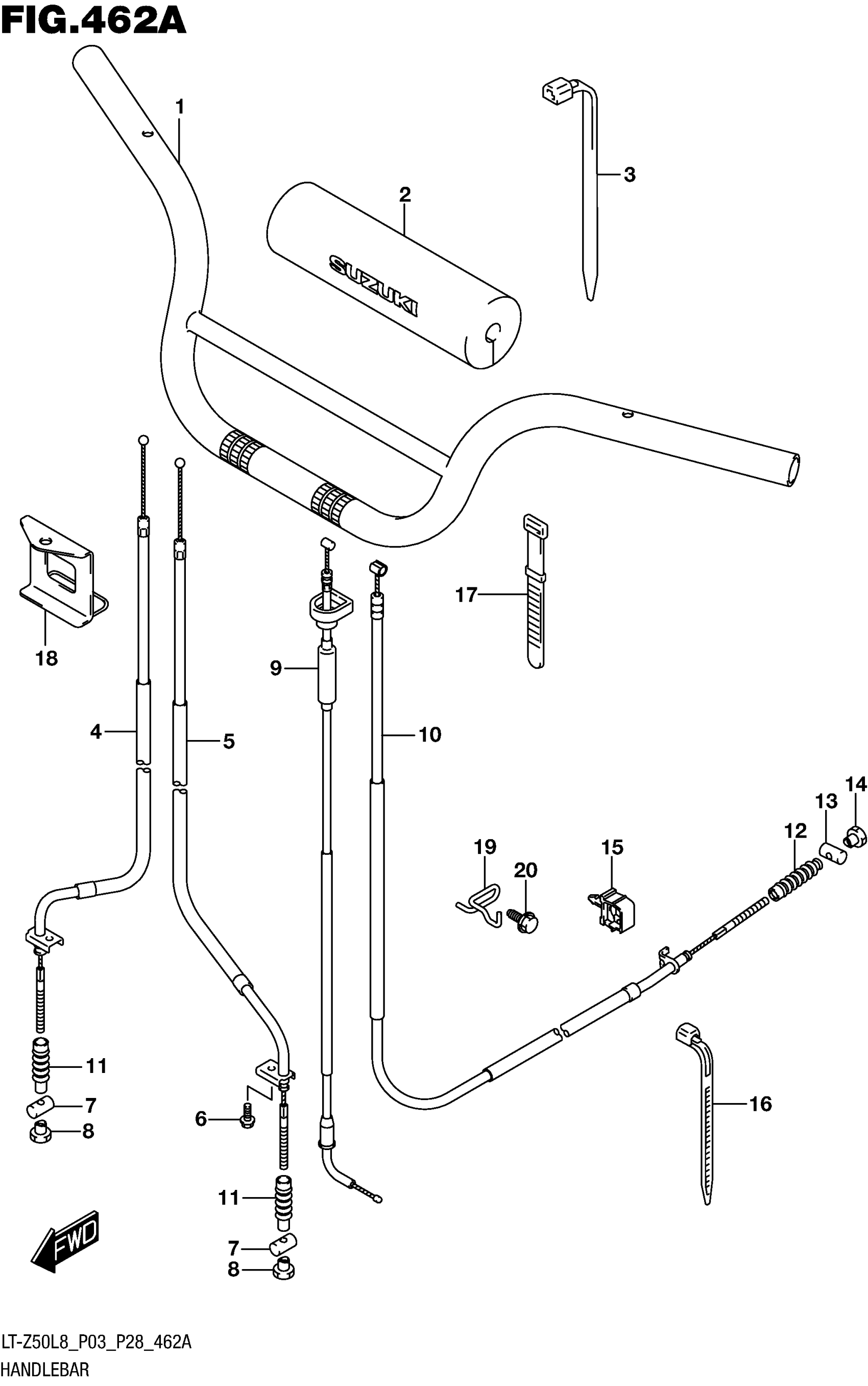

Suzuki LT-Z50L8 (2018) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (SILVER)

56110-43G00-13L

$127.15

2

PAD, CROSS

56172-04600

$14.20

3

CLAMP

09407-18401

$2.07

4

CABLE,FRONT BRAKE,R

58110-43G00

$48.20

5

CABLE,FRONT BRAKE,L

58120-43G00

$48.20

6

BOLT

09106-06076

$3.29

7

PIN

09209-10001

$1.49

8

NUT

09150-05101

$3.04

9

CABLE ASSY,THROTTLE

58300-43G00

$34.60

10

CABLE,REAR BRAKE

58510-43G00

$47.20

11

BOOT,BRAKE CABLE

58553-43F00

$15.35

12

BOOT,FR BRAKE CABLE

58553-43F10

$8.81

13

PIN

09209-10001

$1.49

14

NUT

09150-05101

$3.04

15

CLAMP, REAR BRAKE

09403-12412

$3.73

16

CLAMP (L:125)

09407-14403

$2.26

17

CLAMP (L:120)

09407-12402

$3.04

18

GUIDE, FRONT BRAKE CABLE

58620-43F00

Unavailable

19

GUIDE,REAR BRAKE CABLE

58621-43G00

Unavailable

20

BOLT

09103-06172

$1.68
