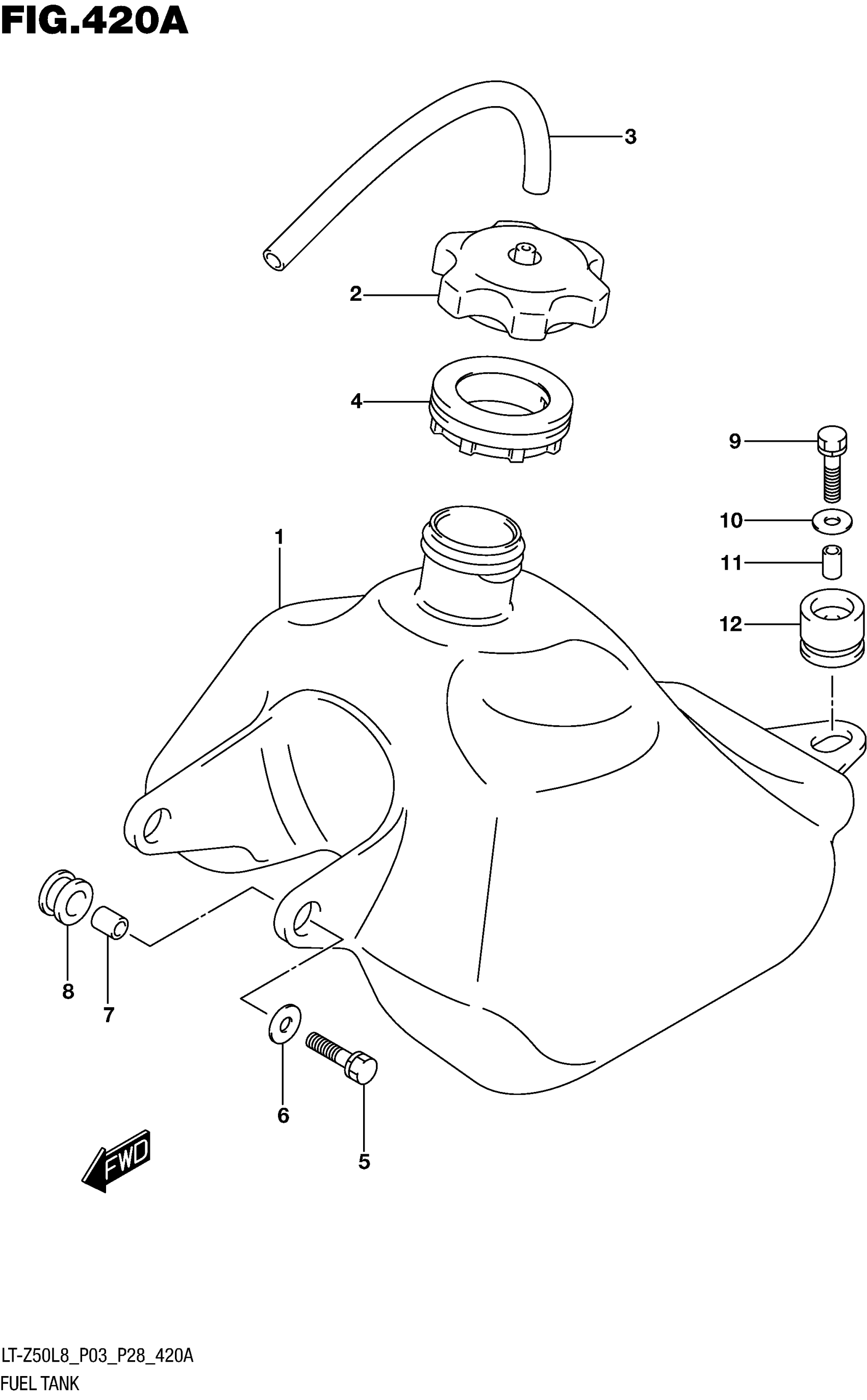

Suzuki LT-Z50L8 (2018) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-43GA0

$897.05

2

CAP ASSY, FUEL TANK

44200-09AA0

$65.53

3

HOSE,FUEL TANK BREATHER | L:600->260

44411-08H00

$10.90

4

RUBBER,FUEL TANK INLET

44261-43GA0

$8.63

5

BOLT, FRONT

01550-0625A

$1.97

6

WASHER This part replaces 09160-06132.

09160-06084

$1.78

7

SPACER

09180-06289

$2.56

8

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

9

BOLT, REAR

01550-0625A

$1.97

10

WASHER This part replaces 09160-06132.

09160-06084

$1.78

11

SPACER

09180-06267

$4.10

12

CUSHION,FUEL TANK REAR

44541-43F00

$7.63
