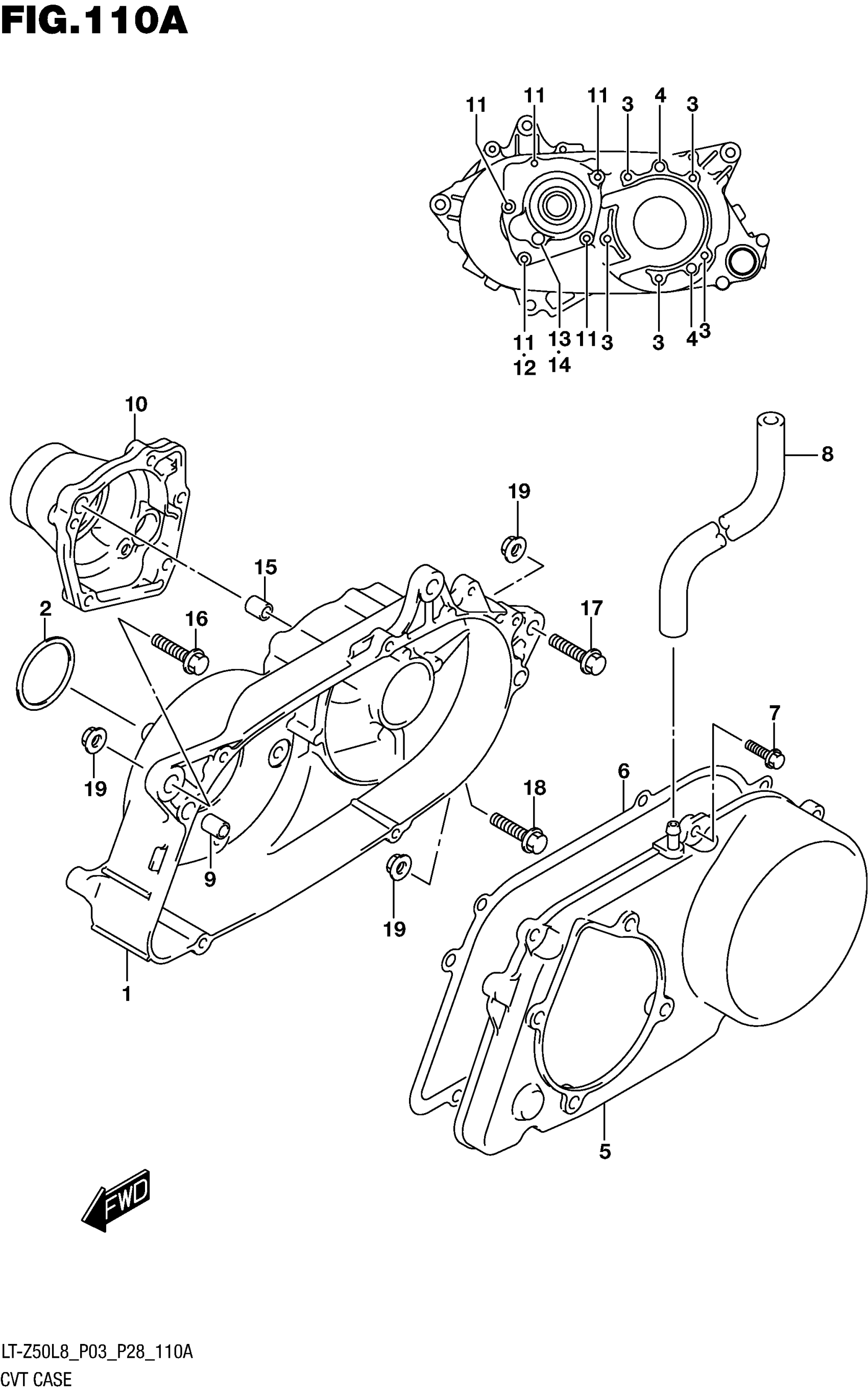

Suzuki LT-Z50L8 (2018) CVT CASE Diagram

#

Description
Price

1

CASE,CVT

11340-22G50

$160.78

2

GASKET,CVT CASE

11481-43G00

$3.25

3

BOLT, (6X20)

09103-06170

$3.03

4

PIN

04211-09149

$1.65

5

COVER,CVT CASE

11342-43G00

$162.72

6

GASKET,CVT CASE COVER

11482-43G00

$28.47

7

BOLT, (6X20)

09103-06170

$3.03

8

HOSE

09351-05092-600

Unavailable

9

PIN

04211-09149

$1.65

10

COVER,GEAR BOX

11431-22G02

$56.48

11

BOLT, (6X28)

09103-06182

$2.80

12

GASKET, OIL DRAIN PLUG

09168-06L01

$1.70

13

GASKET (8.2X14X1)

09168-08016

$1.65

14

PLUG

01550-0812B

$2.73

15

PIN

04211-09149

$1.65

16

BOLT

01550-0825B

$2.92

17

BOLT

01550-0830B

$4.10

18

BOLT

01550-0835B

$3.95

19

NUT

08319-3108B

$2.73
