Description

Price

1

SHAFT,COUNTER (NT:11)

24121-22G00

$121.57

2

SEAL, COUNTER SHAFT OIL | 17X40X5.0

09283-17016

$9.37

3

SHIM,13X22X0.5 (13X22X0.5) | 13X22X0.5

09181-13002

Unavailable

4

BEARING, COUNTER SHAFT, R | 12X16X10

09263-12024

$11.44

5

BEARING, COUNTER SHAFT, L

08110-62030

$18.06

6

CIRCLIP, COUNTER SHFT BRG, L

08331-41406

$1.95

7

SHAFT,DRIVE (NT:47)

24131-22G10

$126.22

8

WASHER, DRIVE SHAFT THRUST | 17X24X1.0

09181-17139

$2.81

9

SEAL,OIL,17X27X6 (17X27X6) | 17X27X6

09283-17026

$7.78

10

BEARING, DRIVE SHAFT, R

08110-62030

$18.06

11

SPROCKET,ENGINE (NT:10)

27511-43G00

$16.76

12

CHAIN ASSY (DID415S)

27600-22G00-082

$42.56

13

.JOINT SET, CHAIN

27620-22G00

$10.25

14

CIRCLIP, ENGINE SPROCKE

08331-31169

$1.80

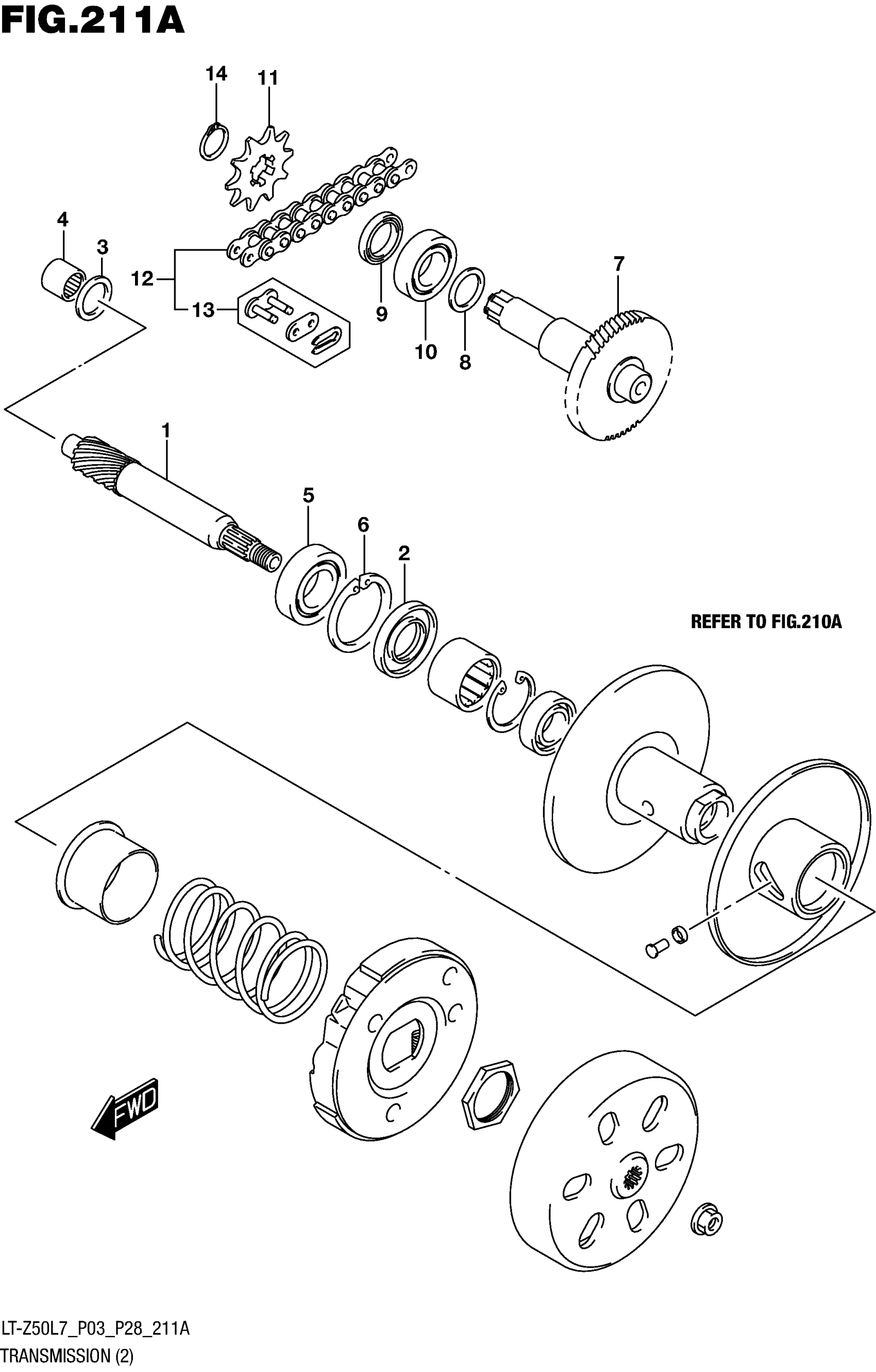

Suzuki LT-Z50L7 (2017) TRANSMISSION (2) Diagram
