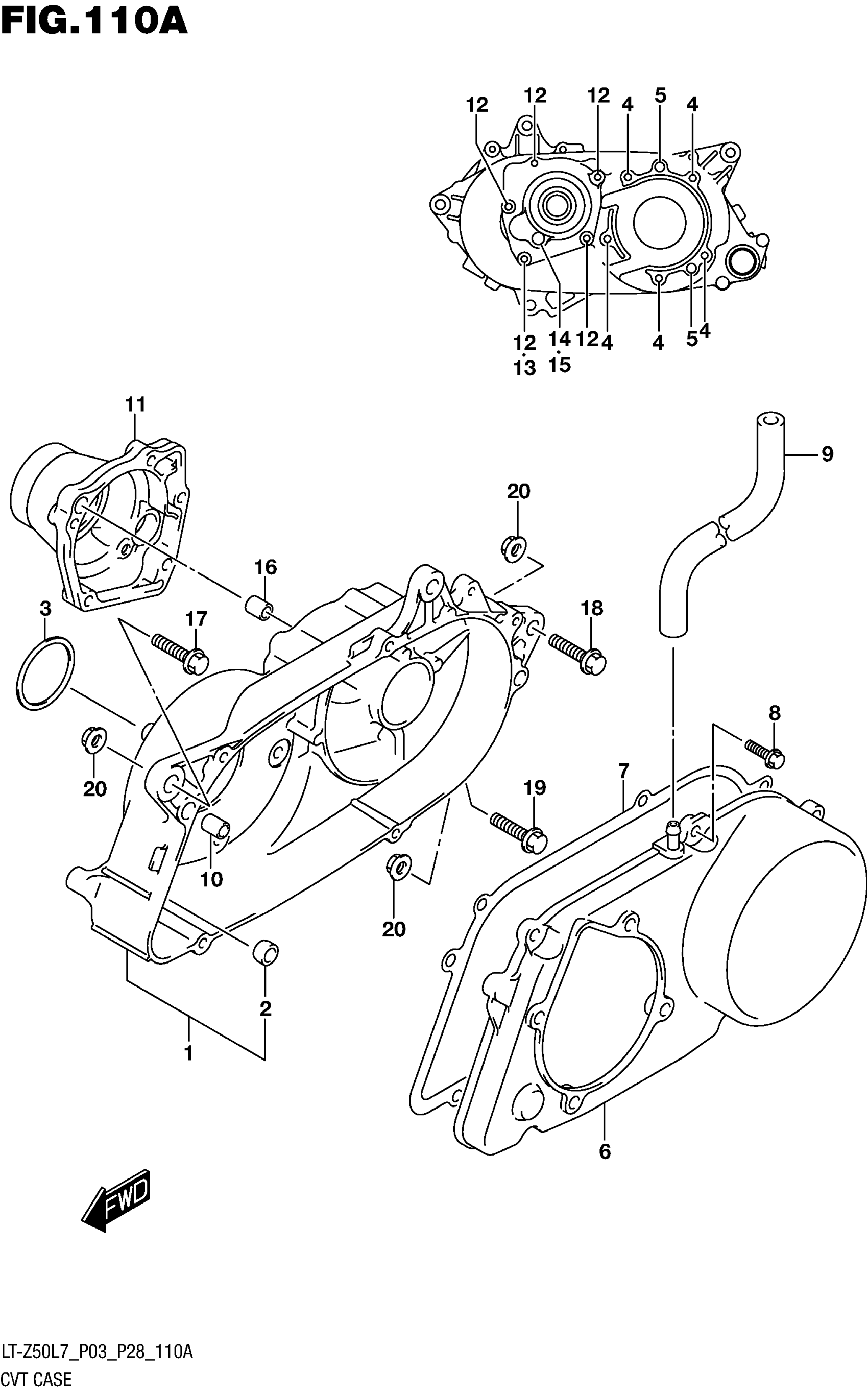

Suzuki LT-Z50L7 (2017) CVT CASE Diagram

#

Description
Price

1

CASE,CVT

11340-22G50

$178.92

2

.BUSH

09300-08016

$3.05

3

GASKET,CVT CASE

11481-43G00

$3.05

4

BOLT, (6X20)

09103-06170

$3.30

5

PIN

04211-09149

$1.64

6

COVER,CVT CASE

11342-43G00

$182.77

7

GASKET,CVT CASE COVER

11482-43G00

$22.79

8

BOLT, (6X20)

09103-06170

$3.30

9

HOSE

09351-05092-600

Unavailable

10

PIN

04211-09149

$1.64

11

COVER,GEAR BOX

11431-22G02

$63.75

12

BOLT, (6X28)

09103-06182

$3.05

13

GASKET, OIL DRAIN PLUG

09168-06L01

$1.92

14

GASKET (8.2X14X1)

09168-08016

$1.64

15

PLUG

01550-0812B

$2.73

16

PIN

04211-09149

$1.64

17

BOLT

01550-0825B

$2.01

18

BOLT

01550-0830B

$4.58

19

BOLT

01550-0835B

$4.42

20

NUT

08319-3108B

$2.75
