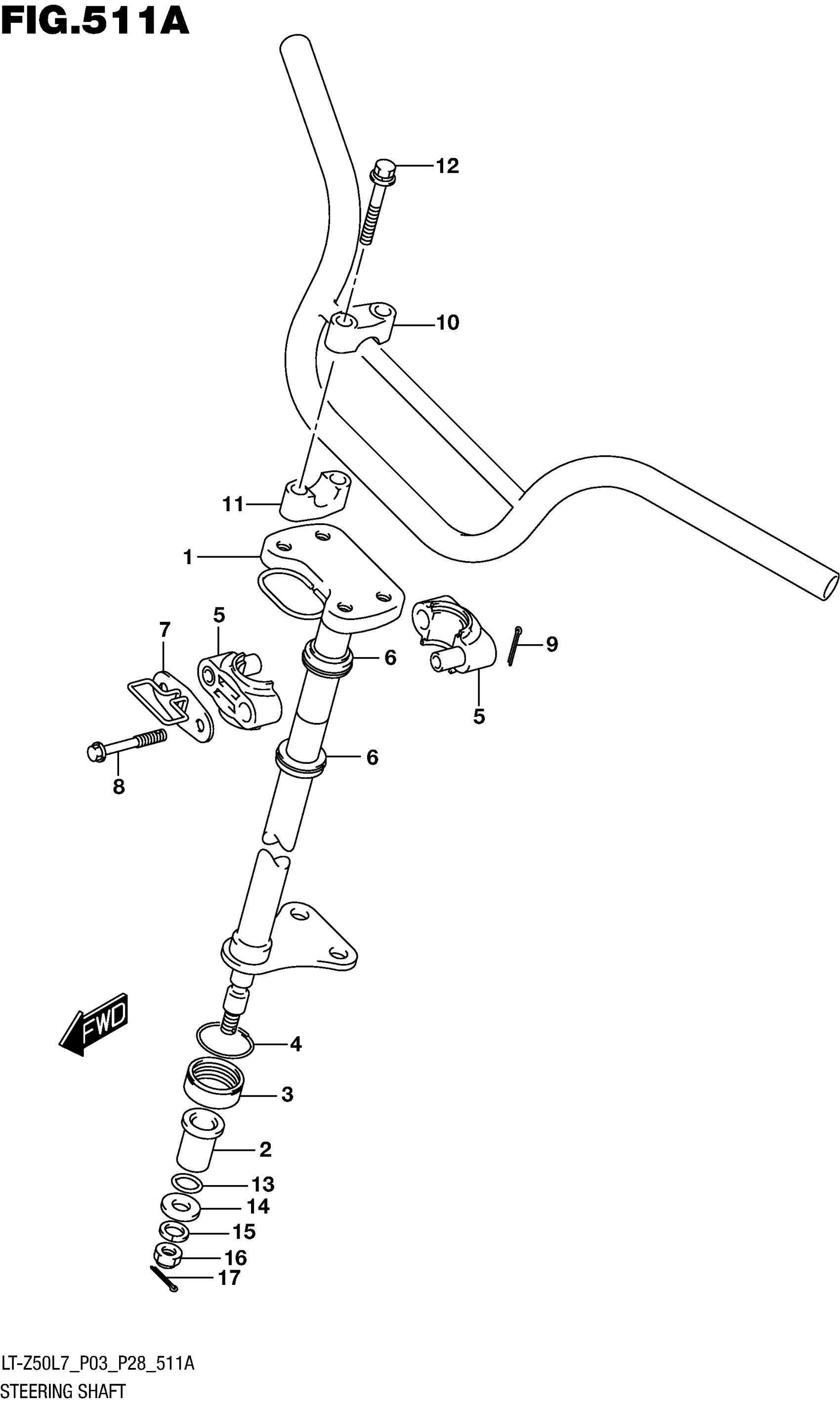

Suzuki LT-Z50L7 (2017) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT,STEERING

51650-43F00

$194.35

2

BUSH,STEERING SHAFT,LOWER

51661-40B00

$15.10

3

SEAL,STEERING SHAFT DUST | FOR LOCAL PART

51662-43FK0

$8.97

4

CLIP, DUST SEAL

09380-31002

$2.43

5

HOLDER,STEERING SHAFT

51670-18902

$18.02

6

DUST SEAL, STEERING

51678-18900

$8.12

7

REINF STEERING HOLDER

51680-43F00

Unavailable

8

BOLT (8X60)

09103-08085

$6.91

9

COTTER PIN

04111-2020A

$1.49

10

HOLDER, HANDLEBAR

56211-04200

$18.58

11

HOLDER,HANDLE BAR

56211-43G00

$27.85

12

BOLT

01550-0845B

$3.42

13

O RING (ID:13.8,D:2.50)

09280-14011

$4.77

14

WASHER

09160-10128-XC0

$2.62

15

LOCK WASHER

09162-10010

$3.72

16

NUT

08319-2110B

Unavailable

17

COTTER PIN

04111-2020A

$1.49
