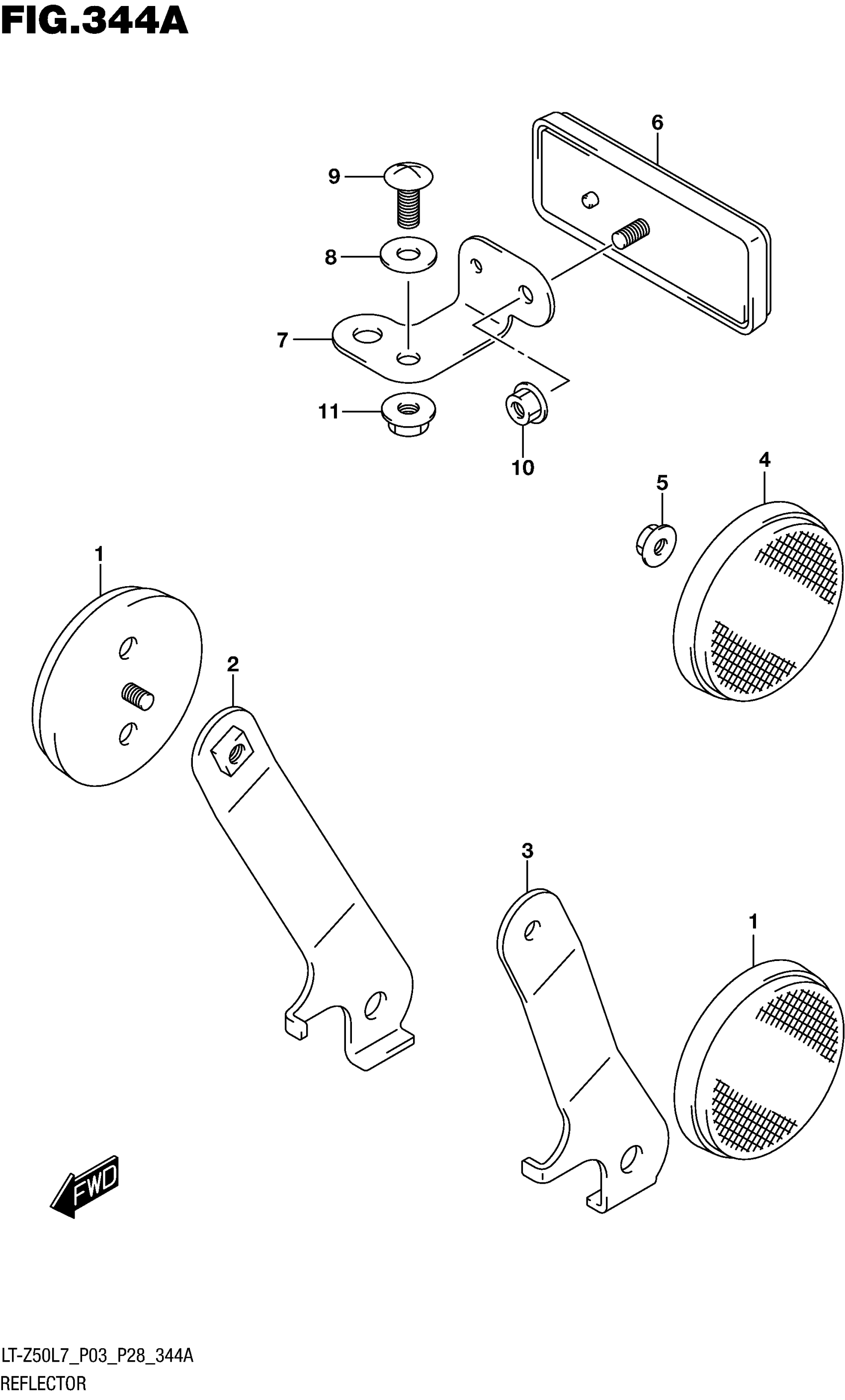

Suzuki LT-Z50L7 (2017) REFLECTOR (LT-Z50L7 P28) Diagram

#

Description
Price

1

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

2

BRACKET, FRONT SIDE REFLECTOR

35956-43F10

Unavailable

2

R

35956-43F10

Unavailable

3

BRACKET, FRONT SIDE REFLECTOR

35957-43F10

Unavailable

3

L

35957-43F10

Unavailable

4

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

5

NUT, REAR SIDE RR

08316-1005B

$2.50

6

REFLECTOR ASSY, REAR

35970-07F01

$20.88

7

BRACKET,REAR RR

35974-43G00

$7.57

8

WASHER, REAR RR BKT | 6.5X16X1.2

09160-06153

$1.65

9

SCREW, REAR RR BKT

02142-0616B

$1.78

10

NUT, REAR RR

08316-1005B

$2.50

11

NUT, REAR RR BKT

08316-1006B

$2.50
