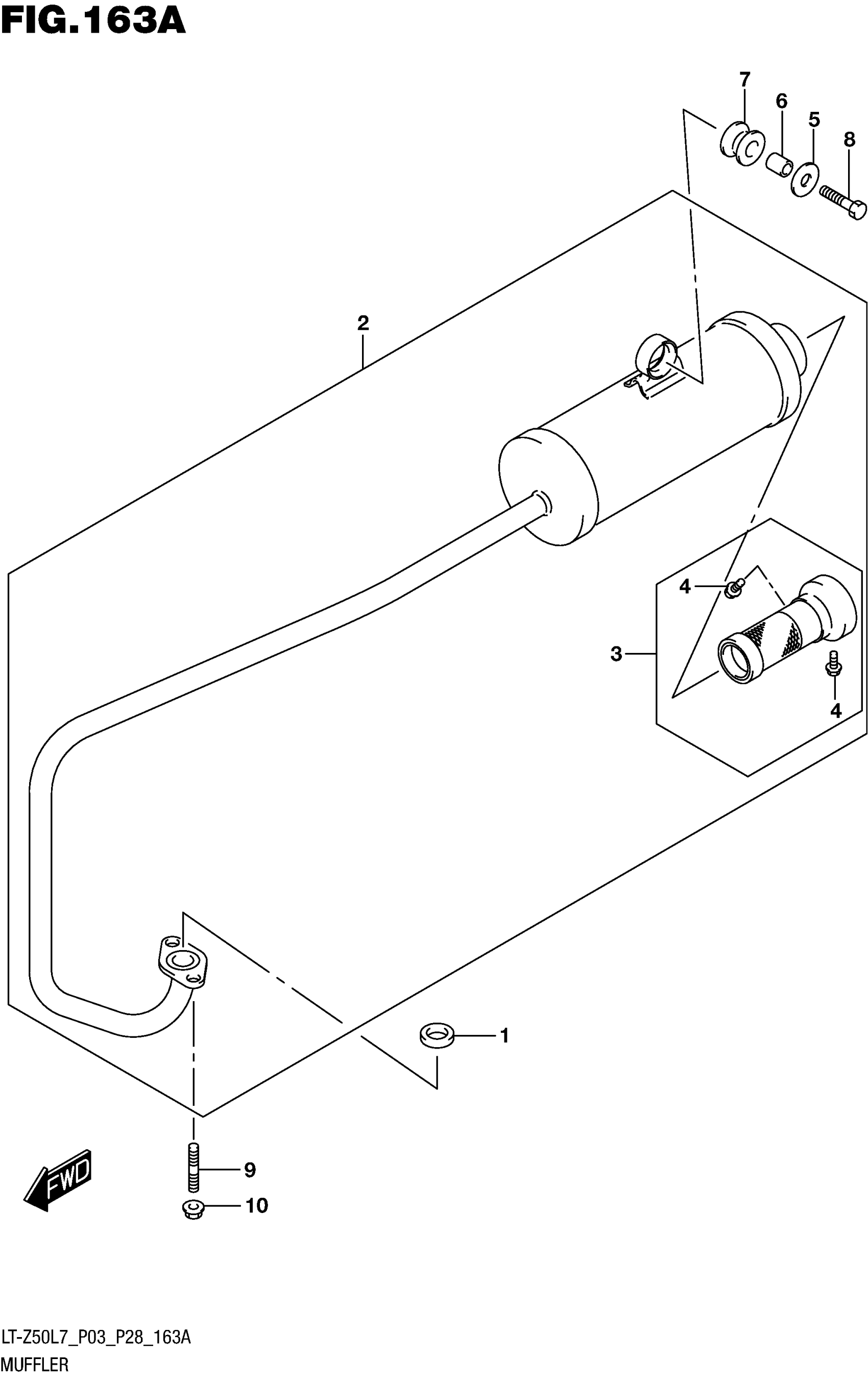

Suzuki LT-Z50L7 (2017) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHA PIPE

14181-22G01

$5.53

2

MUFFLER ASSY

14301-43G00

$318.75

3

.ARRESTER SET This part replaces 14850-43810.

14850-43811

$36.55

4

..BOLT

01547-0610B

$2.45

5

WASHER, (8.5X26X1.6)

09160-08151

$1.99

6

SPACER, (8.5X12X17.5)

09180-08194

$3.05

7

CUSHION

09320-12043

$7.98

8

BOLT, MUFFLER SUPPORT

01500-0835B

$3.04

9

BOLT, STUD

01421-0616B

$2.33

10

NUT

08316-1006B

$2.50
