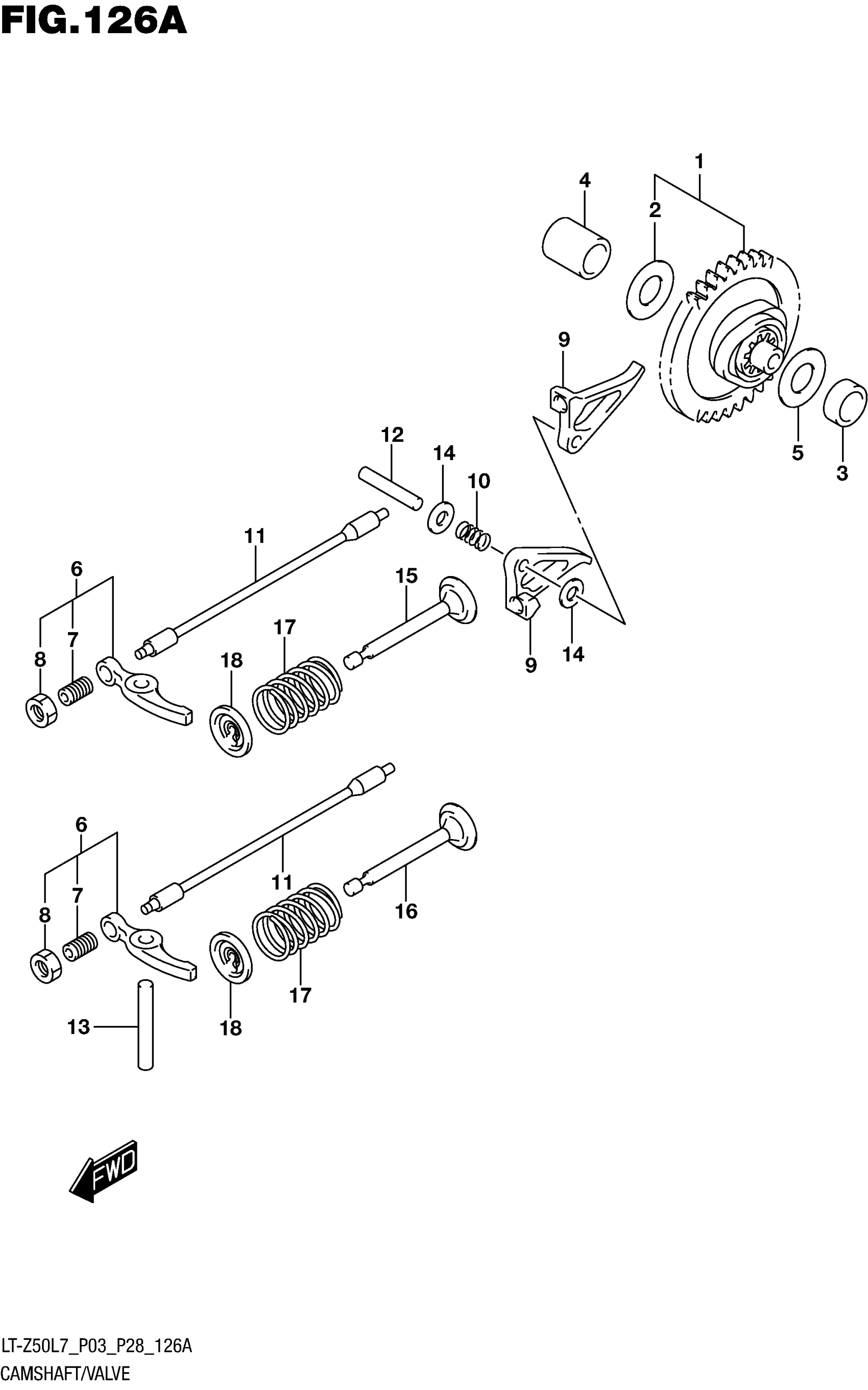

Suzuki LT-Z50L7 (2017) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT ASSY

12700-43G00

$240.94

2

.WASHER, CAMSHAFT

12713-22G00

Unavailable

3

BUSH,9X12X4.5 (9X12X4.5)

09300-09001

$5.28

4

BUSH,9X12X12 (9X12X12)

09300-09002

$6.20

5

WASHER

08221-10204

$2.38

6

ARM,VALVE ROCKER This part replaces 12840-22G20.

12840-22G10

$28.27

7

.SCREW,TAPPET ADJUSTING

12842-22G20

$3.38

8

.NUT, TAPPET ADJUSTING

12843-33G40

Unavailable

9

ARM,CAM ROCKER

12845-22G10

$21.70

10

SPRING,CAM ROCKER ARM

12847-22G00

$2.53

11

ROD,PUSH

12890-43G00

$26.46

12

ROLLER

09261-04005

$1.67

13

PIN,4X31.8 (4X31.8)

09261-04015

$2.39

14

WASHER

08322-0104B

$1.49

15

VALVE,INTAKE

12911-22G00

$17.10

16

VALVE,EXHAUST

12912-22G00

$17.10

17

SPRING,VALVE

12921-22G00

$3.77

18

RETAINER,VALVE SPRING

12931-22G00

$5.74
