2009 Suzuki LT-Z50 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2009 Suzuki LT-Z50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

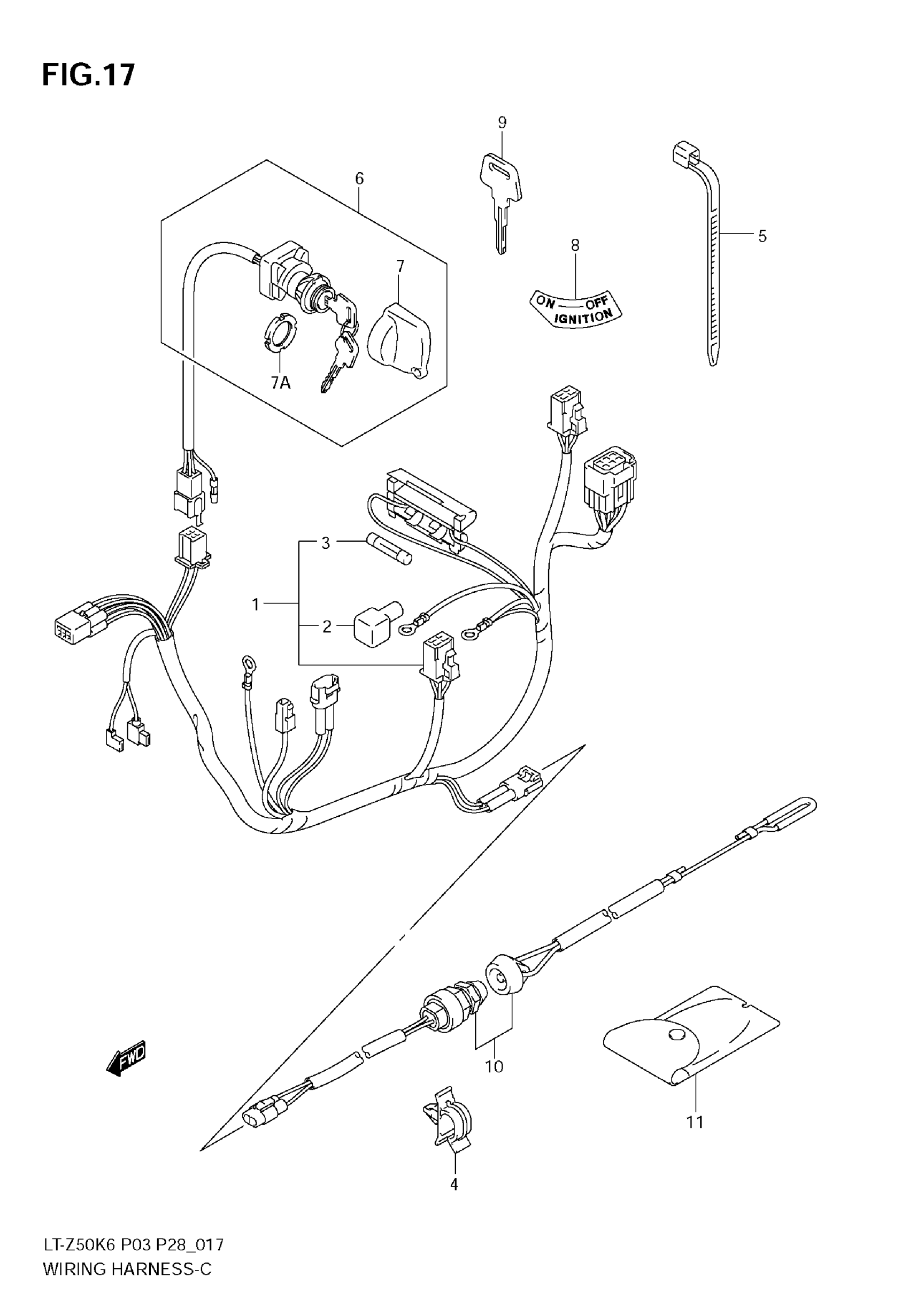

2009 Suzuki LT-Z50 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | Includes Item(s) 2 - 3 This part replaces 36610-43G00.

36610-43G01

1
Out of stock

2

CAP, BATTERY

33624-03A00

1
Out of stock

3

FUSE (10A)

09481-10001

2
Out of stock

4

CLAMP, WIRING HARNESS

09403-10319

1
Out of stock

5

CLAMP, WIRING HARNESS (L:125)

09407-14403

6
Out of stock

6

SWITCH ASSY,IGNITION | Includes Item(s) 7 - 7A This part replaces 37110-40B00.

37110-40B01

1
Out of stock

7

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

1
Out of stock

7A

.NUT,IGNITION SWITCH

37112-24500

1
Out of stock

8

PLATE, CONTROL IDENTIFI

37139-40B03

1
Out of stock

9

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

9

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock

9

KEY,BLANK (TYPE:E) | OPT

37146-19B20

1
Out of stock

9

KEY,BLANK (TYPE:F) | OPT

37146-19B30

1
Out of stock

10

SWITCH ASSY,EMERGENCY

37820-43G00

1
Out of stock

11

CASE, EMERGENCY SW STARTING

37910-04200

1
Out of stock
