2009 Suzuki LT-Z50 Magneto Diagram

← All diagrams

Find the part on the Magneto diagram for your 2009 Suzuki LT-Z50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

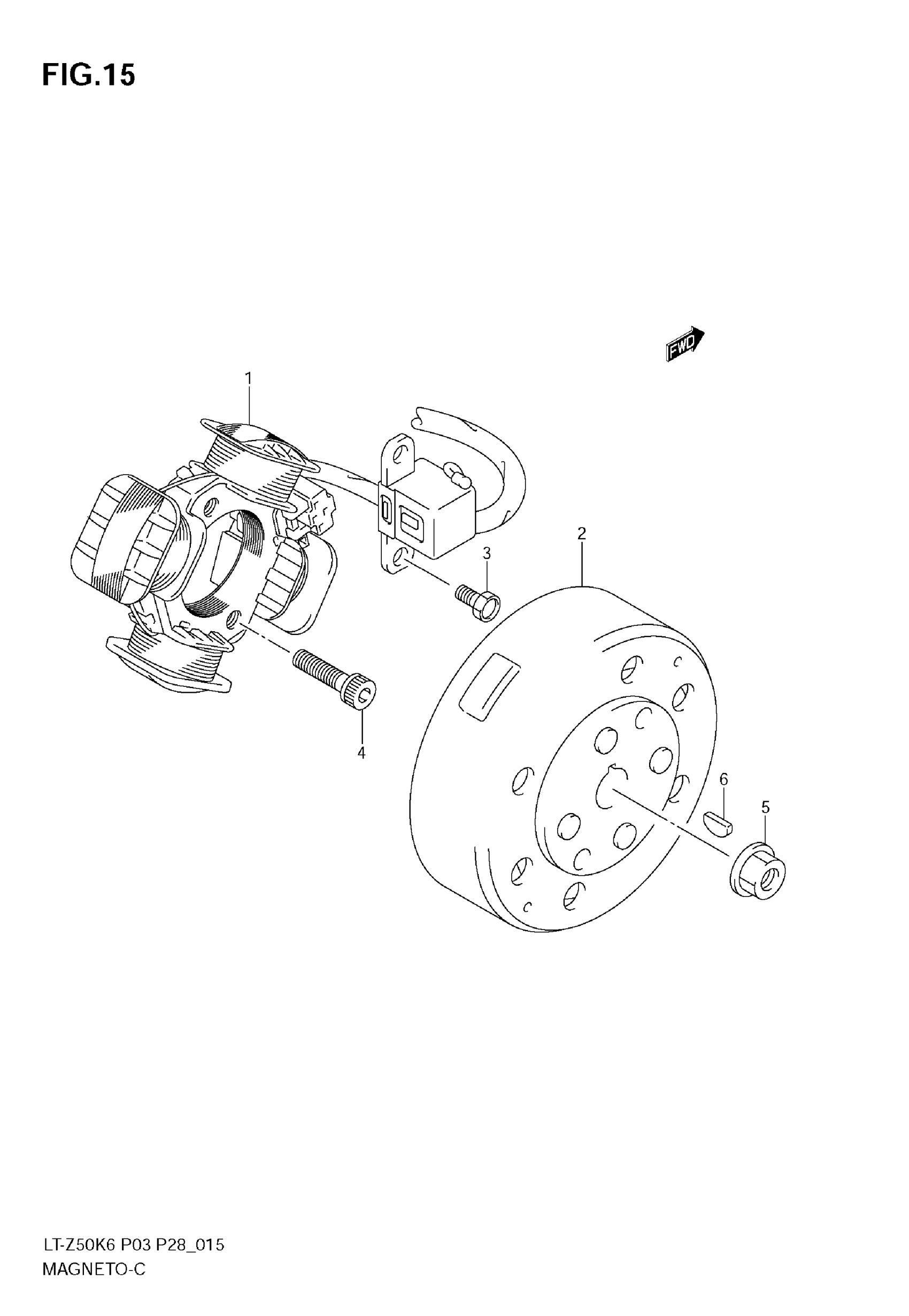

2009 Suzuki LT-Z50 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

32101-43G00

1
Out of stock

2

ROTOR ASSY

32102-43G00

1
Out of stock

3

BOLT, PULSER COIL (5X10)

09100-05019

2
Out of stock

4

BOLT, MAGNETO STATOR

07130-0625B

2
Out of stock

5

NUT, MAGNETO ROTOR

08316-1010B

1
Out of stock

6

KEY, MAGNETO ROTOR

08341-31039

1
Out of stock
