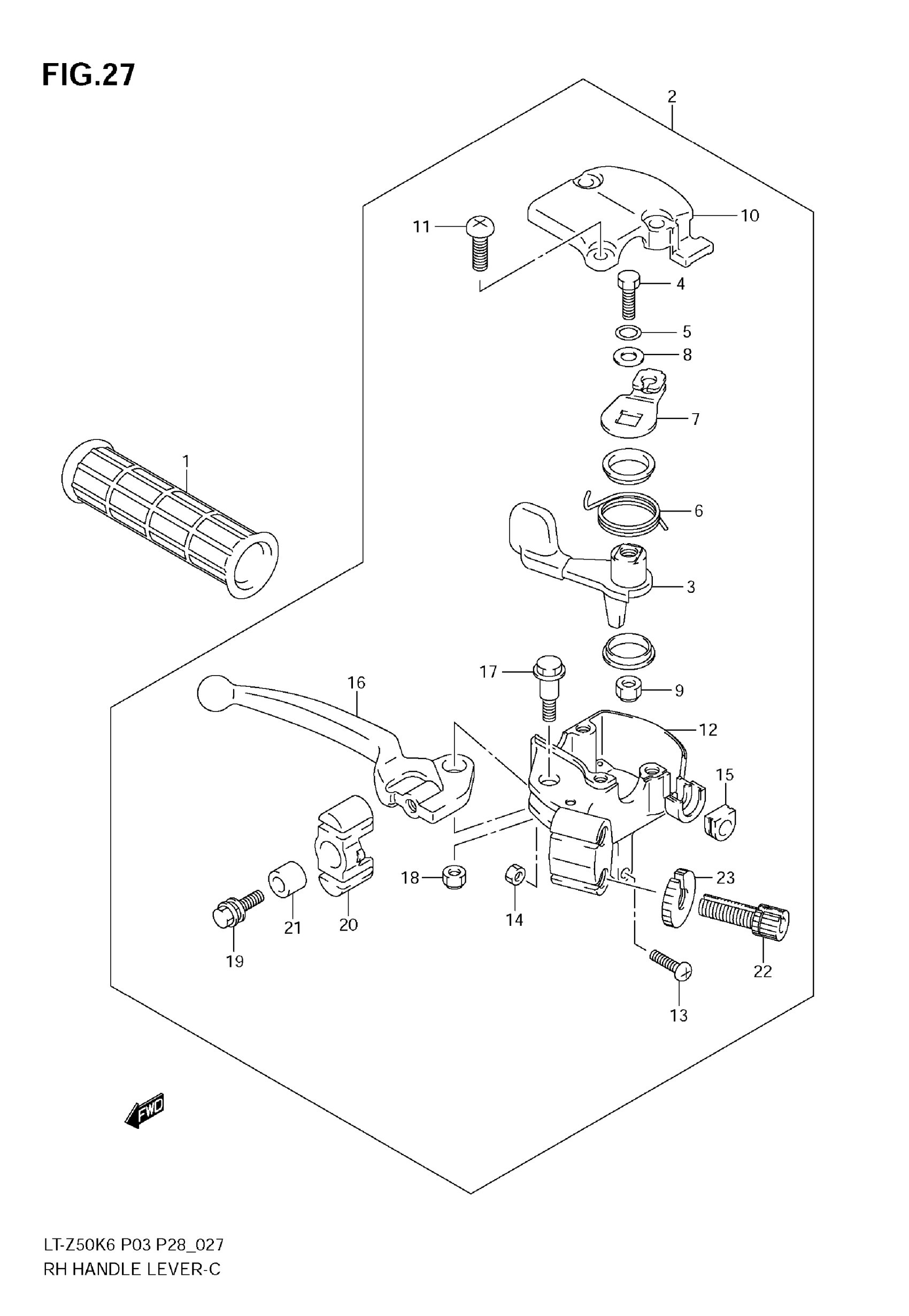

Suzuki LT-Z50 (2009) RH HANDLE LEVER Diagram

#

Description
Price

1

GRIP

57211-04600

$4.93

2

LEVER ASSY,FRONT BRAKE | Includes Item(s) 3 - 23

57300-43F00

$129.15

3

LEVER, THROTTLE

57112-43F00

$21.83

4

BOLT

01500-0620B

$2.15

5

BUSH

57136-43F00

Unavailable

6

SPRING, RETURN

57134-43F00

$5.40

7

ARM, THROTTLE LEVER

57114-43F00

Unavailable

8

WASHER (6.5X18X1.0)

09160-06028

$1.49

9

NUT

08319-2106B

$2.32

10

CASE, UPPER

57121-43F00

$30.47

11

SCREW

02112-0516B

$1.93

12

CASE, LOWER

57131-43F00

$40.67

13

SCREW

02112-0520B

$1.84

14

NUT This part replaces 08310-0005B.

08310-0005A

$1.84

15

DUST SEAL

58333-04200

Unavailable

16

LEVER, FRONT BRAKE

57421-43F00

$11.07

17

BOLT, PIVOT

57431-43F00

$5.33

18

NUT

08319-2106B

$2.32

19

BOLT

01550-0616B

$2.48

20

EQUALIZER

57396-43F00

$16.38

21

SPACER

57397-43F00

$7.80

22

ADJUSTER, CABLE

57441-43F00

$15.25

23

NUT

57442-43F00

$15.25
