2009 Suzuki LT-Z50 Label Diagram

← All diagrams

Find the part on the Label diagram for your 2009 Suzuki LT-Z50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

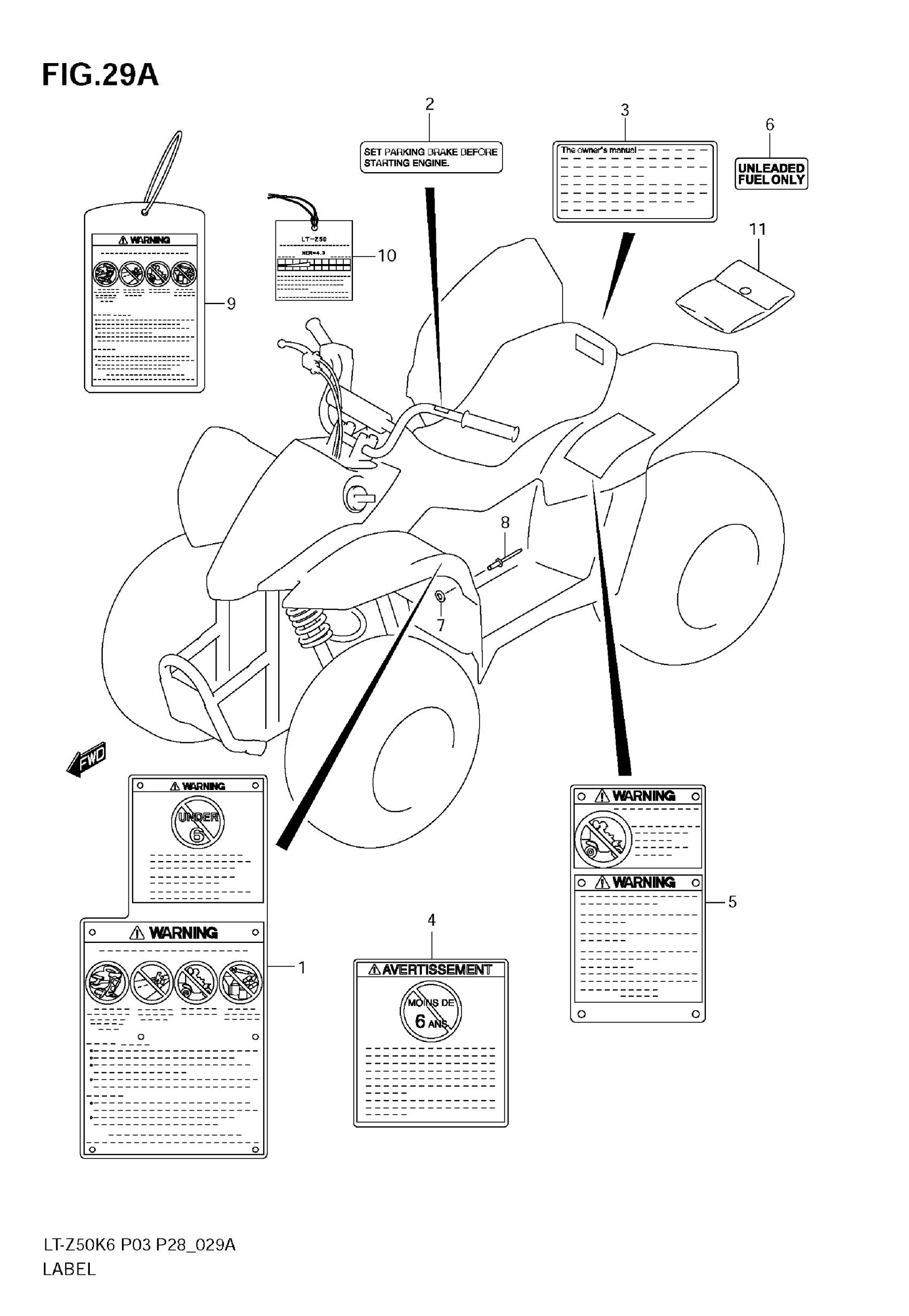

2009 Suzuki LT-Z50 Label Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LABEL, WARNING | E3,E28

68921-43G10

1
Out of stock

1

LABEL,GENERAL WARNING | E28 This part replaces 68921-05G30.

68921-05G31

1
Out of stock

2

LABEL,PARKING BRAKE | E3,E28 This part replaces 68343-04661.

68343-04662

1
Out of stock

2

LABEL, PARKING (FRENCH) | E28

68343-04670

—
Out of stock

3

LABEL,MANUAL NOTICE | E3 This part replaces 68353-26E02.

68353-26E03

1
Out of stock

4

LABEL, AGE 6 (FRENCH) | E28

68367-04260

—
Out of stock

5

LABEL, TIRE (ENGLISH) | E3,E28

68332-43G00

1
Out of stock

5

LABEL, TIRE | E28

68332-43G30

—
Out of stock

6

LABEL,UNLEADED | E28 This part replaces 68623-01B00.

68623-01B01

1
Out of stock

7

WASHER

68928-09F00

8
Out of stock

8

RIVET

68929-09F00

8
Out of stock

9

TAG, ATV | E3

68399-43G00

1
Out of stock

10

TAG, CONSUMER INFORMATION | E3

18810-43G10

1
Out of stock

11

BAG,OWNER'S MAN This part replaces 94980-01C01.

94980-01C02

1
Out of stock

12

MANUAL, OWNER'S | E3

99011-43G53-03A

1
Out of stock

12

MANUAL, OWNER'S | E28 DRAWING NOT SHOWN

99011-43G53-28B

—
Out of stock
