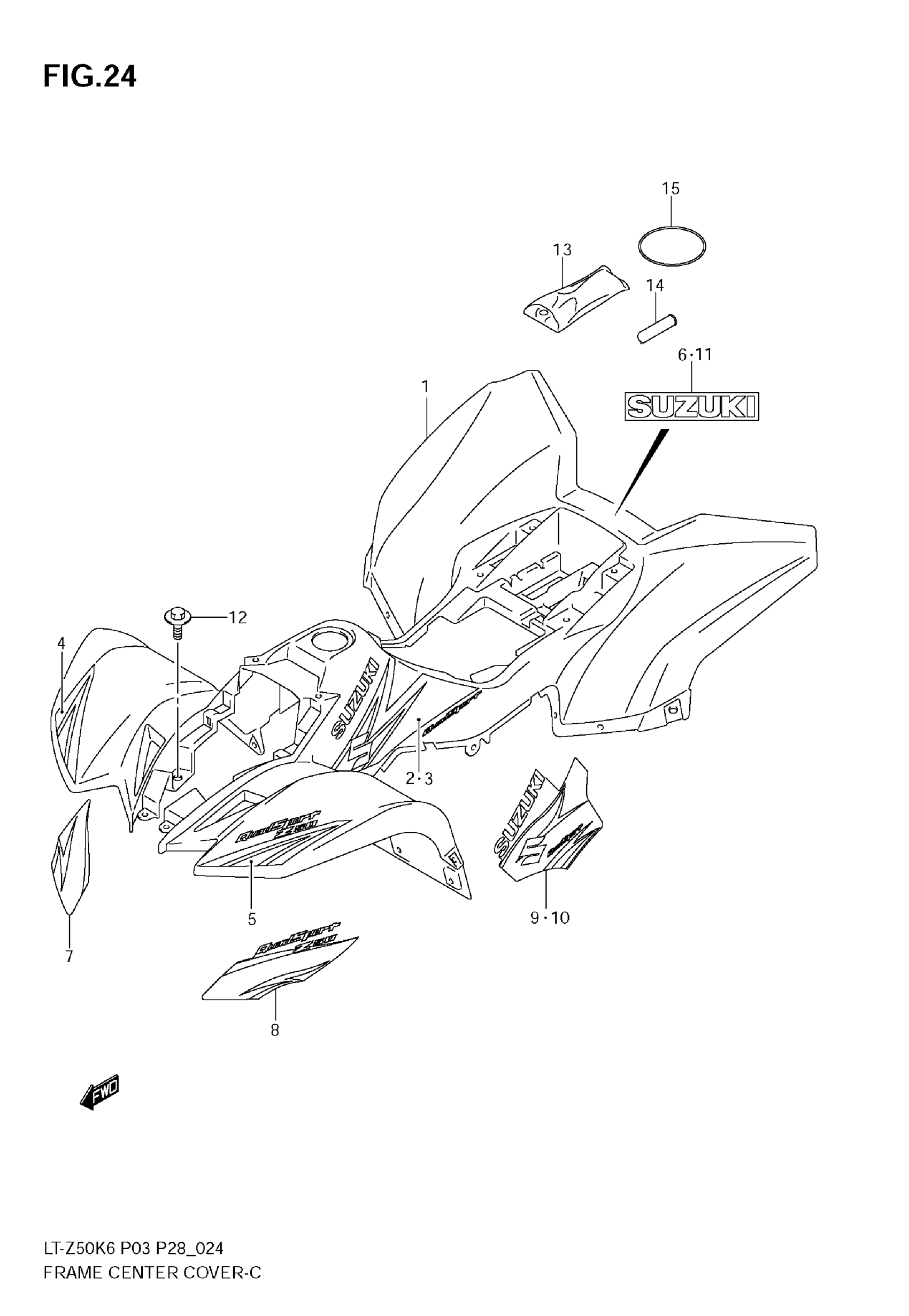

Suzuki LT-Z50 (2009) FRAME CENTER COVER (MODEL K6/K7) Diagram

#

Description
Price

1

COVER,FRAME CTR (YELLOW)

47311-43G00-YU1

$530.47

1

COVER, FRAME CENTER (WHITE)

47311-43G00-30H

$525.37

2

TAPE, CENTER RH | MODEL K6 FOR YU1

68135-43G00-CET

Unavailable

2

TAPE, CENTER RH | MODEL K6 FOR 30H

68135-43G00-CHJ

Unavailable

3

TAPE, CENTER LH | MODEL K6 FOR YU1

68145-43G00-CET

Unavailable

3

TAPE, CENTER LH | MODEL K6 FOR 30H

68145-43G00-CHJ

Unavailable

4

TAPE, FRONT RH | MODEL K6 FOR YU1

68135-43G10-CET

Unavailable

4

TAPE, FRONT RH | MODEL K6 FOR 30H

68135-43G10-CHJ

Unavailable

5

TAPE, FRONT LH | MODEL K6 FOR YU1

68145-43G10-CEZ

Unavailable

5

TAPE, FRONT LH | MODEL K6 FOR 30H

68145-43G10-CHG

Unavailable

6

EMBLEM, "SUZUKI" | MODEL K6 FOR YU1

68131-43FA0-CFL

Unavailable

6

EMBLEM, "SUZUKI" | MODEL K6 FOR 30H

68131-43FA0-CLM

Unavailable

7

TAPE, FRONT RH | MODEL K7 FOR YU1

68135-43G20-DSY

Unavailable

7

TAPE, FRONT RH | MODEL K7 FOR 30H

68135-43G20-DSF

Unavailable

8

TAPE, FRONT LH | MODEL K7 FOR YU1

68145-43G20-DSW

Unavailable

8

TAPE, FRONT LH | MODEL K7 FOR 30H

68145-43G20-DSB

Unavailable

9

TAPE, CENTER RH | MODEL K7 FOR YU1

68135-43G30-DSW

Unavailable

9

TAPE, CENTER RH | MODEL K7 FOR 30H

68135-43G30-DSB

Unavailable

10

TAPE, CENTER LH | MODEL K7 FOR YU1

68145-43G30-DSW

Unavailable

10

TAPE, CENTER LH | MODEL K7 FOR 30H

68145-43G30-DSB

Unavailable

11

EMBLEM, "SUZUKI" | MODEL K7 FOR YU1

68721-09A00-GY8

$14.47

11

EMBLEM, "SUZUKI" | MODEL K7 FOR 30H

68721-09A00-8YM

$14.47

12

BOLT, CENTER

09111-06081

$3.85

13

TOOL ASSY This part replaces 09800-21004.

09800-21061

$38.57

14

GAUGE ASSY,AIR PRESSUR

96200-18A02

$66.48

15

O RING

09280-85003

$6.63
