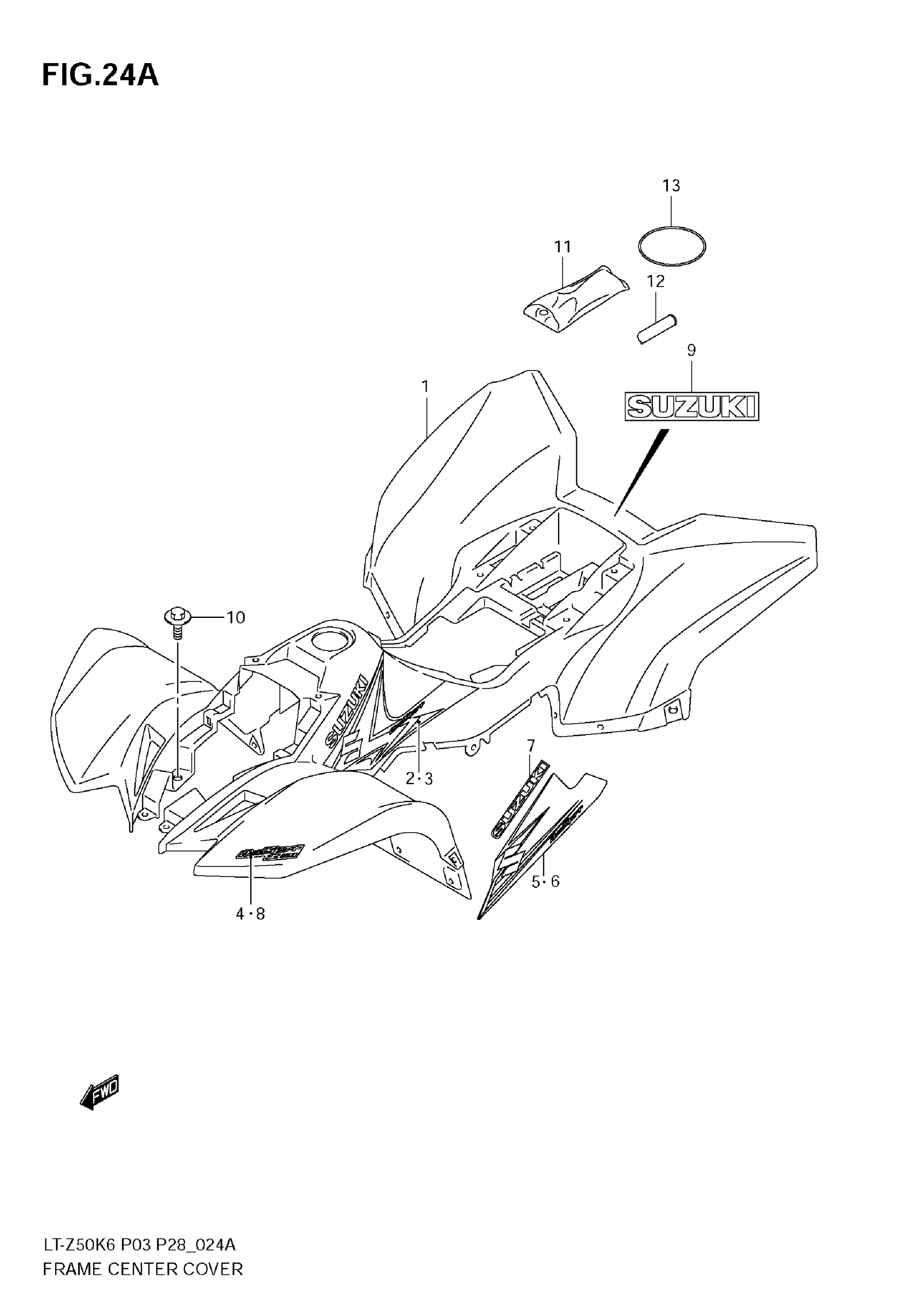

Suzuki LT-Z50 (2009) FRAME CENTER COVER (MODEL K8/K9) Diagram

#

Description
Price

1

COVER,FRAME CTR (YELLOW)

47311-43G00-YU1

$472.28

1

COVER, FRAME CENTER (WHITE)

47311-43G00-30H

$472.28

2

TAPE, CENTER RH | MODEL K8 FOR YU1

68135-43G40-EMA

Unavailable

2

TAPE, CENTER RH | MODEL K8 FOR 30H

68135-43G40-ELZ

Unavailable

3

TAPE, CENTER LH | MODEL K8 FOR YU1

68145-43G40-EMA

Unavailable

3

TAPE, CENTER LH | MODEL K8 FOR 30H

68145-43G40-ELZ

Unavailable

4

EMBLEM,FRAME COVER FRONT (WHI | MODEL K8 FOR YU1

68131-43G00-DCP

$23.47

4

EMBLEM, FRONT LH | MODEL K8 FOR 30H

68131-43G00-EMB

Unavailable

5

TAPE, CENTER RH | MODEL K9 FOR 30H

68135-43G50-GTE

Unavailable

5

TAPE, CENTER RH | MODEL K9 FOR YU1

68135-43G50-GTF

Unavailable

6

TAPE, CENTER LH | MODEL K9 FOR 30H

68145-43G50-GTE

Unavailable

6

TAPE, CENTER LH | MODEL K9 FOR YU1

68145-43G50-GTF

Unavailable

7

EMBLEM, SIDE | MODEL K9 FOR 30H

68131-43G10-8YM

$12.82

7

EMBLEM, SIDE | MODEL K9 FOR YU1

68131-43G10-GY8

$12.82

8

EMBLEM, FRONT LH | MODEL K9 FOR 30H

68131-43G00-FVJ

Unavailable

8

EMBLEM,FRAME COVER FRONT (WHI | MODEL K9 FOR YU1

68131-43G00-DCP

$23.47

9

EMBLEM, "SUZUKI" | FOR YU1

68721-09A00-GY8

$12.82

9

EMBLEM, "SUZUKI" | FOR 30H

68721-09A00-8YM

$12.82

10

BOLT, CENTER

09111-06081

$4.09

11

TOOL ASSY This part replaces 09800-21004.

09800-21061

$35.48

12

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

13

O RING

09280-85003

$7.25
