2009 Suzuki LT-Z50 Cylinder Diagram

← All diagrams

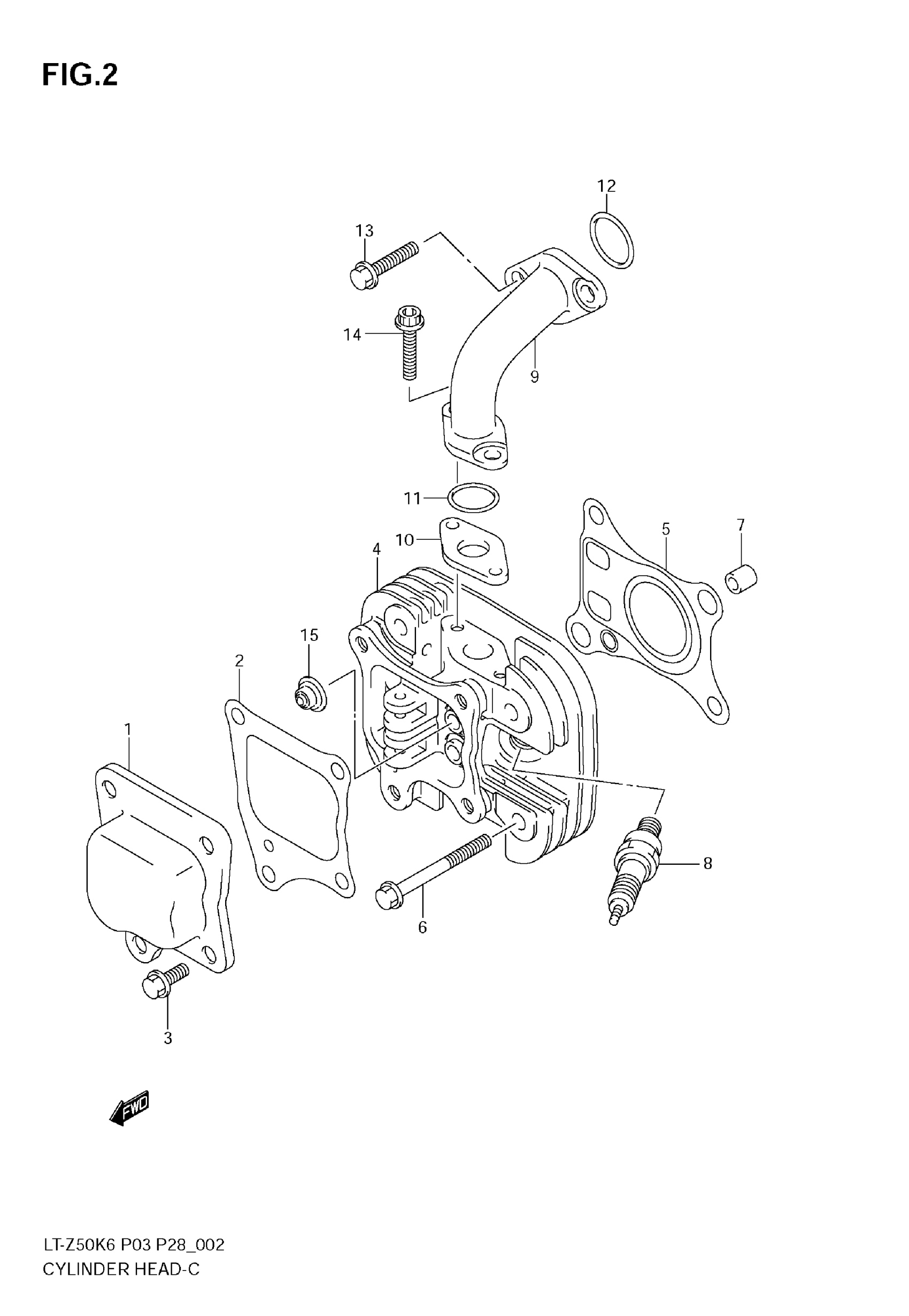

Find the part on the Cylinder diagram for your 2009 Suzuki LT-Z50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-Z50 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,CYLINDER HEAD

11171-22G00

1
Out of stock

2

GASKET, CYL HEAD COVER

11173-22G00

1
Out of stock

3

BOLT, 6X12

09103-06172

4
Out of stock

4

HEAD,CYLINDER

11110-22G00

1
Out of stock

5

GASKET, CYLINDER HEAD

11141-22G10

1
Out of stock

6

BOLT, 6X50

09103-06101

4
Out of stock

7

PIN

04211-09109

2
Out of stock

8

SPARK PLUG,CR6HSA (CR6HSA)

09482-00406

1
Out of stock

8

SPARK PLUG,U20FSR-U (U20FSR-U

09482-00407

—
Out of stock

9

PIPE,INTAKE

13111-43G00

1
Out of stock

10

INSULATOR,INTAKE PIPE

13117-43G00

1
Out of stock

11

O RING, D:1.9 ID:14.5

09280-15006

2
Out of stock

12

O RING, D:1.9 ID:21.8

09280-21010

1
Out of stock

13

BOLT, REAR

01550-0620B

2
Out of stock

14

BOLT, FRONT

07120-0620B

2
Out of stock

15

SEAL,OIL (4X11.6X7.9)

09289-04006

1
Out of stock
