2009 Suzuki LT-Z50 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2009 Suzuki LT-Z50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

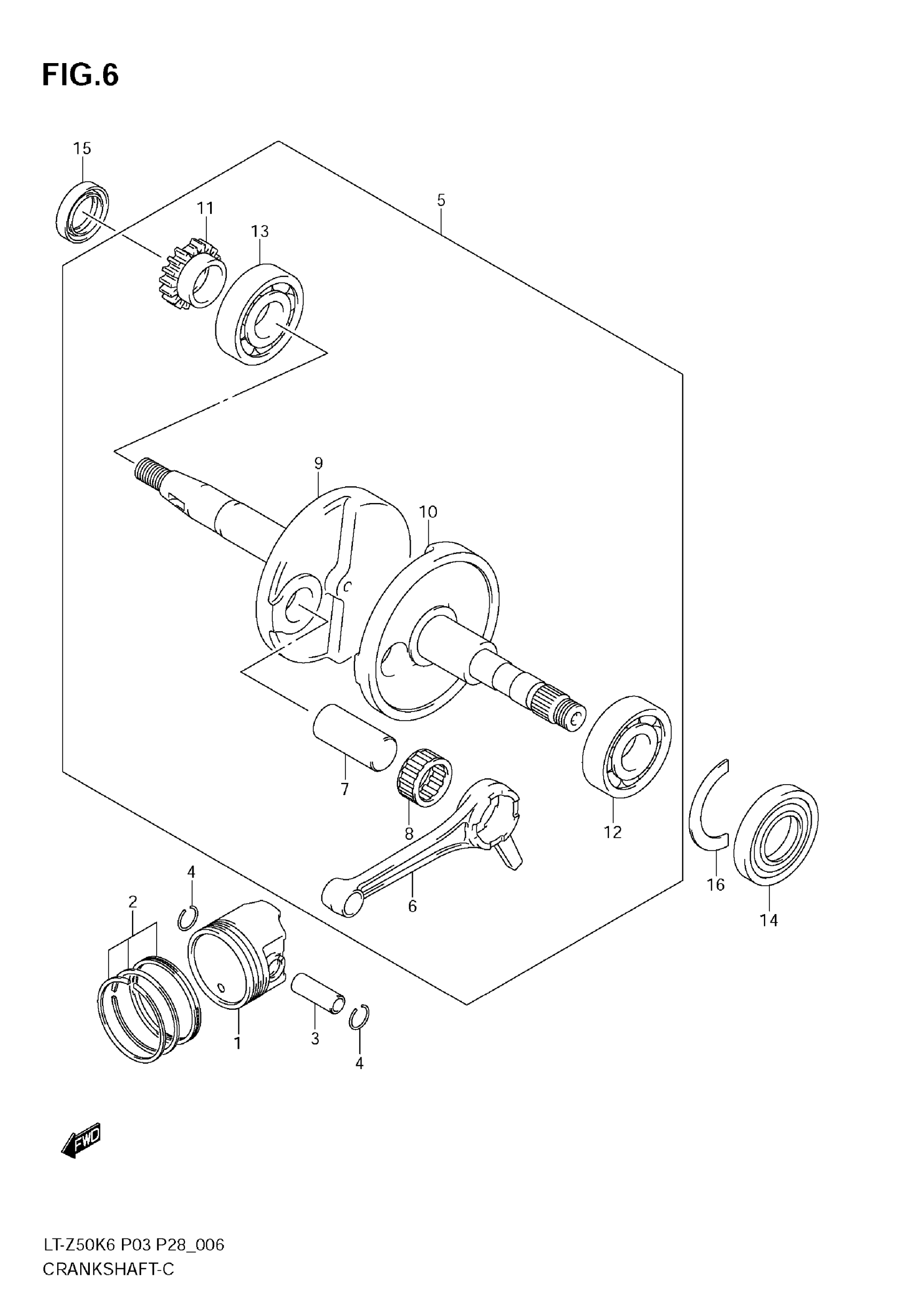

2009 Suzuki LT-Z50 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON

12111-22G02

1
Out of stock

2

RING SET,PISTON

12140-22G00

1
Out of stock

3

PIN,PISTON

12151-22G00

1
Out of stock

4

CIRCLIP

09381-10006

2
Out of stock

5

CRANKSHAFT ASSY | Includes Item(s) 6 - 13

12200-43G00

1
Out of stock

6

CONNROD

12161-22G10

1
Out of stock

7

PIN, CRANK

12211-37B00

1
Out of stock

8

BEARING, 16X22X11.8

09263-16034

1
Out of stock

9

CRANKSHAFT, R

12221-22G01

1
Out of stock

10

CRANKSHAFT, L

12261-22G01

1
Out of stock

11

GEAR, CAM DRIVE

12731-43G00

1
Out of stock

12

BEARING, L

09262-20106

1
Out of stock

13

BEARING, R

09262-17023

1
Out of stock

14

SEAL,CRANKSHAFT OIL,L

12227-22G00

1
Out of stock

15

SEAL,OIL,17X28X5.5 (17X28X5.5

09283-17027

1
Out of stock

16

RETAINER

09390-40003

1
Out of stock
