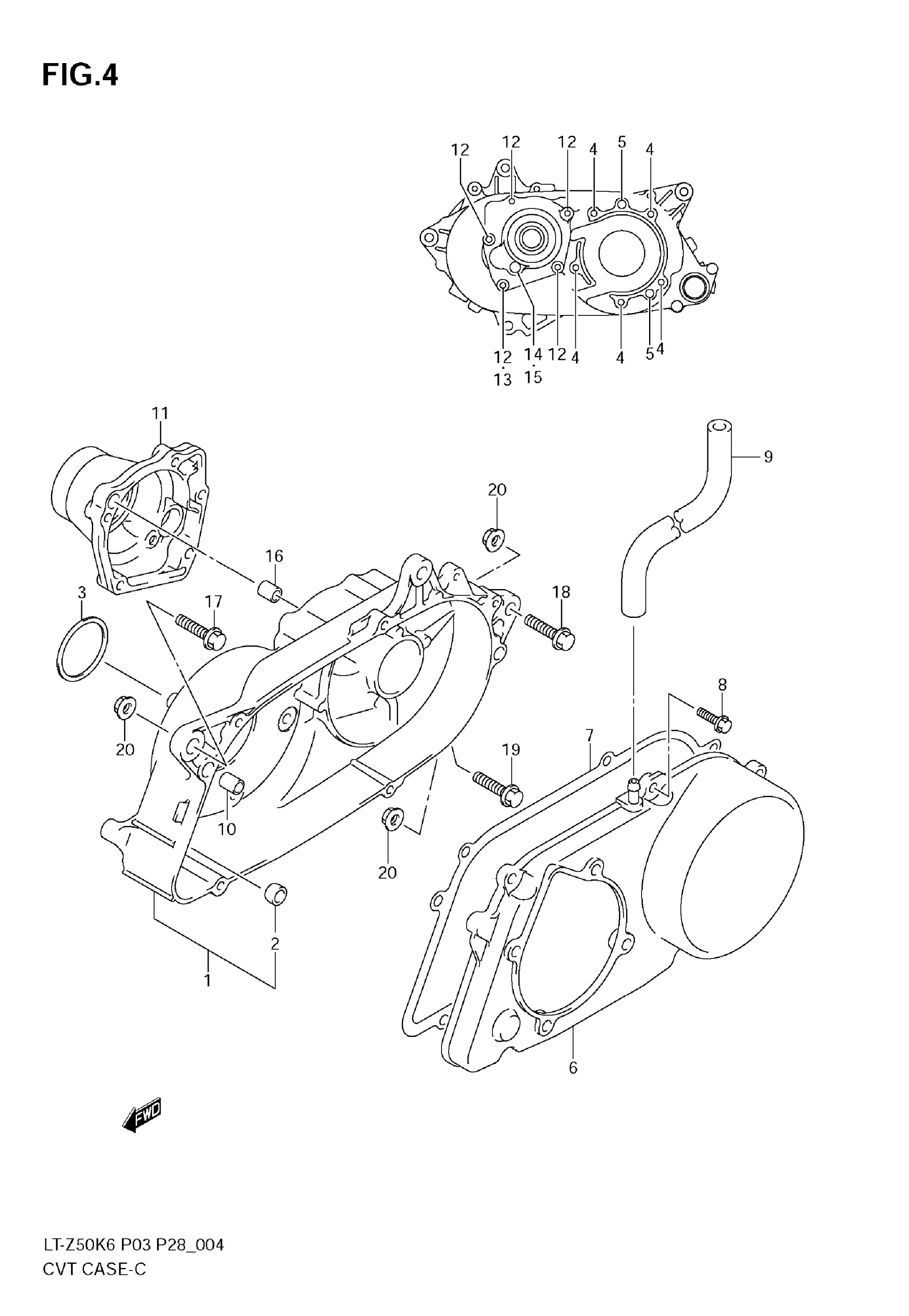

Suzuki LT-Z50 (2009) CVT CASE Diagram

#

Description
Price

1

CASE,CVT | Includes Item(s) 2

11340-22G50

$160.78

2

BUSH

09300-08016

$2.80

3

GASKET,CVT CASE

11481-43G00

$3.25

4

BOLT, 6X20

09103-06170

$3.03

5

PIN

04211-09149

$1.65

6

COVER,CVT CASE

11342-43G00

$162.72

7

GASKET,CVT CASE COVER

11482-43G00

$28.47

8

BOLT, 6X20

09103-06170

$3.03

9

HOSE

09351-05092-600

Unavailable

10

PIN

04211-09149

$1.65

11

COVER,GEAR BOX

11431-22G02

$56.48

12

BOLT, 6X28

09103-06182

$2.80

13

GASKET, 5.8X13X1.2

09168-06023

$2.35

14

GASKET (8.2X14X1)

09168-08016

$1.65

15

PLUG

01550-0812B

$2.73

16

PIN

04211-09149

$1.65

17

BOLT

01550-0825B

$2.92

18

BOLT

01550-0830B

$4.10

19

BOLT

01550-0835B

$3.95

20

NUT

08319-3108B

$2.73
