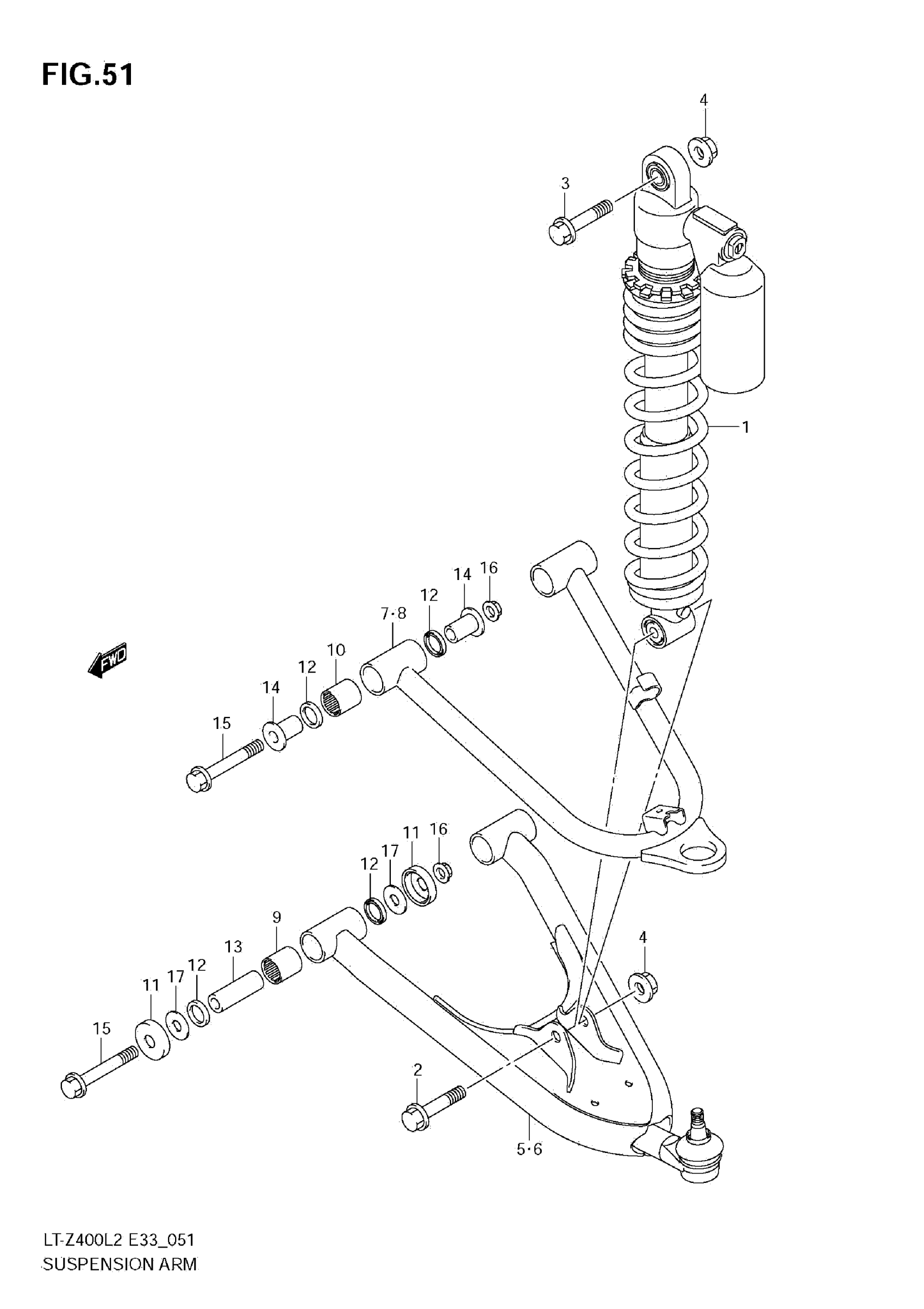

Suzuki LT-Z400L2 (2012) SUSPENSION ARM (LT-Z400L2) Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (RED)

52100-33H00-YKS

Unavailable

2

BOLT (10X48) | LOWER

09103-10352

$5.88

3

BOLT (10X38) | UPPER

09103-10351

$6.20

4

NUT

09159-10115

$3.55

5

ARM ASSY, SUSPENSION LOWER RH (SILVER)

52410-33H00-YD8

$314.93

6

ARM ASSY, SUSPENSION LOWER LH (SILVER)

52420-33H00-YD8

Unavailable

7

ARM ASSY, SUSPENSION UPPER RH (SILVER)

52430-33H00-YD8

Unavailable

8

ARM ASSY, SUSPENSION UPPER LH (SILVER)

52440-33H00-YD8

Unavailable

9

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

10

BEARING (17X24X27.5)

09263-17048

$24.35

11

SEAL,DUST This part replaces 52454-43B00.

52454-43B01

$7.73

12

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.76

13

SPACER, LOWER

52455-43B00

$21.67

14

SPACER, UPPER

52455-07G00

$27.23

15

BOLT (10X70)

09103-10033

$6.17

16

NUT

09159-10115

$3.55

17

WASHER

08211-10281

$2.03
