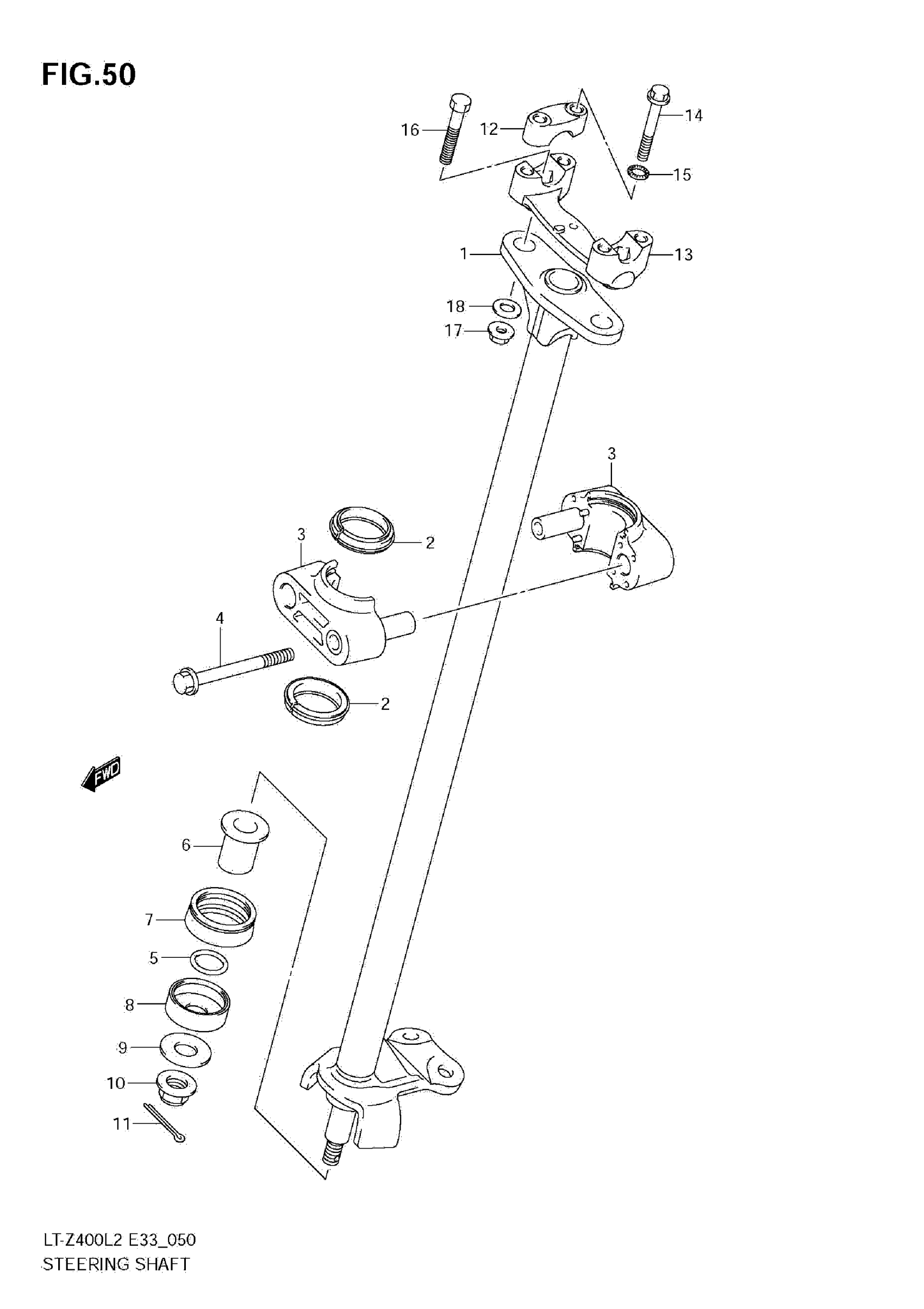

Suzuki LT-Z400L2 (2012) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT, STEERING

51650-33H00

Unavailable

2

DUST SEAL, STEERING HOLDER (27X38X8.5)

51678-24500

$6.64

3

HOLDER,STEERING SHAFT

51670-24500

$23.07

4

BOLT

01550-0875A

$3.55

5

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

6

BUSH, STEERING SHAFT LOWER (17X26X36.9)

51661-09F00

$30.05

7

SEAL,DUST This part replaces 51662-05G00.

51662-05G01

$6.42

8

SEAL,DUST This part replaces 51663-05G00.

51663-05G01

$7.13

9

WASHER (12.5X32X2.3)

09160-12073

$1.97

10

NUT

08319-3112B

$5.00

11

COTTER PIN

04111-2020A

$1.49

12

CLAMP, HANDLE HOLDER UPPER (BLACK)

56211-45G20-291

$30.47

13

CLAMP, HANDLE HOLDER LOWER (BLACK)

56211-45G10-291

$125.17

14

BOLT

01550-0835B

$3.95

15

WASHER

09164-08015

$3.21

16

BOLT

01500-1035B

$3.72

17

NUT

08319-3110B

$3.87

18

WASHER (10.5X25X3.2)

09160-10128-XC0

$2.62
