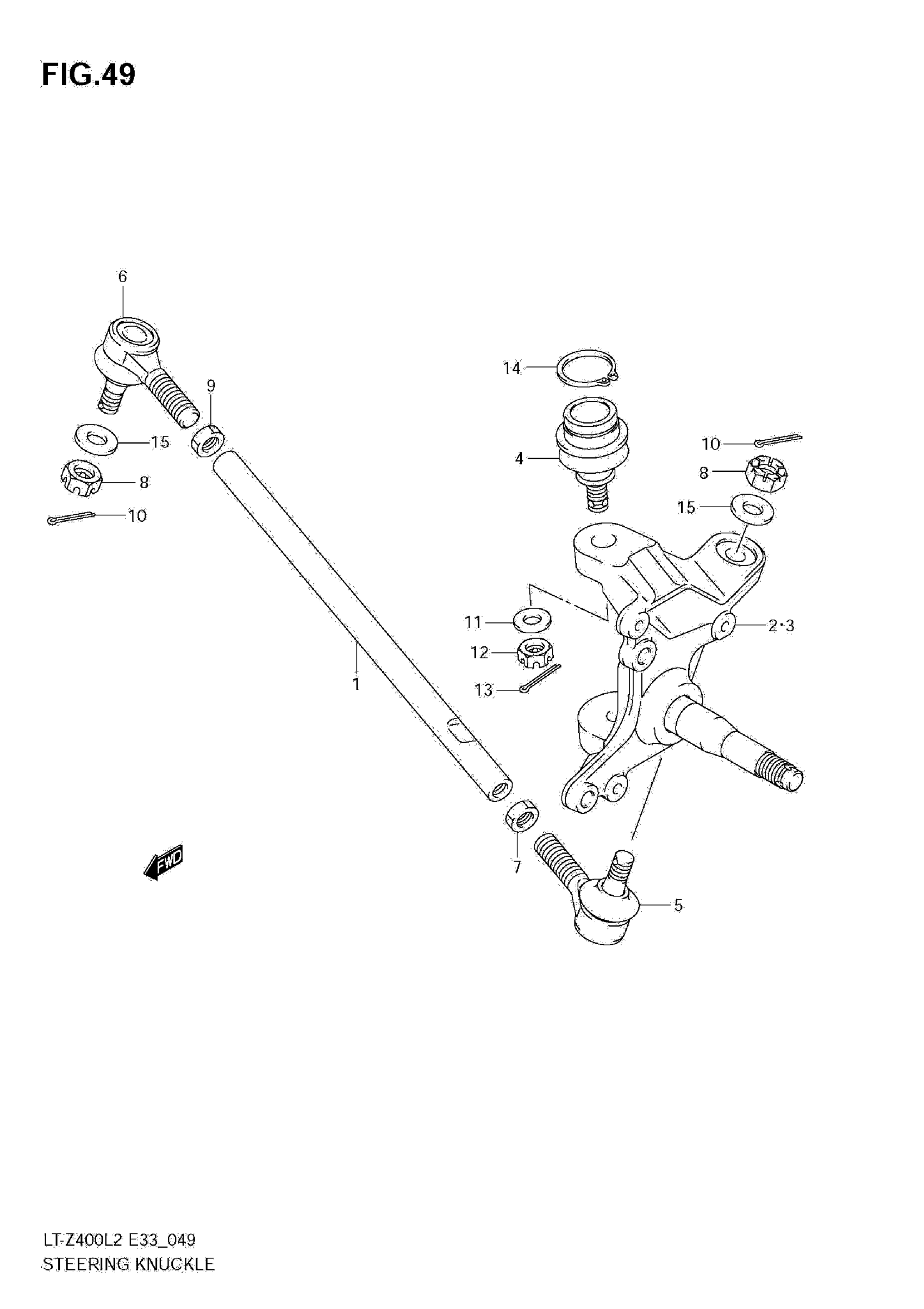

Suzuki LT-Z400L2 (2012) STEERING KNUCKLE Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-33H00

$32.00

2

KNUCKLE, STEERING RH

51230-33H00

Unavailable

3

KNUCKLE, STEERING LH

51240-33H00

$346.10

4

END, KNUCKLE STEERING UPPER

51210-31G10

$65.76

5

ROD, END RH

51260-45G00

$57.71

6

ROD, END LH

51270-45G00

$57.71

7

NUT, TIE ROD RH

51283-09F00

$4.12

8

NUT

08314-4010A

$2.71

9

NUT

09140-12035

$2.92

10

COTTER PIN

04111-2020A

$1.49

11

WASHER (10.5X19X2)

09160-10082

$1.61

12

NUT

08314-4010A

$2.71

13

COTTER PIN

04111-2020A

$1.49

14

CIRCLIP This part replaces 08331-3130A.

08331-31309

$2.57

15

WASHER (10.5X19X2)

09160-10082

$1.61
