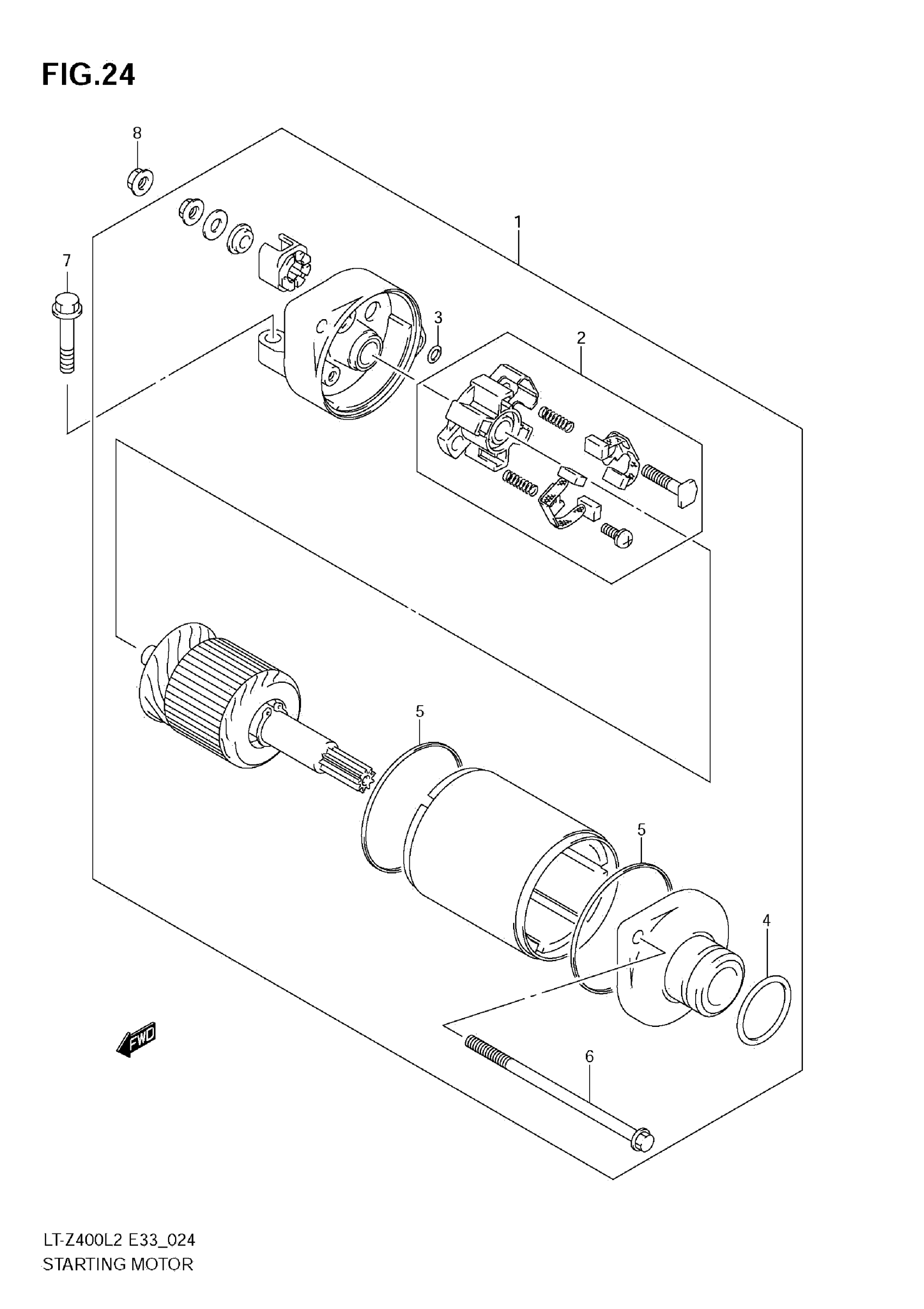

Suzuki LT-Z400L2 (2012) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY, STARTING

31100-29F10

$601.23

2

BRUSH HOLDER SET

31132-18H00

$72.00

3

O RING

31143-49040

$3.71

4

O RING

31156-98E00

$3.89

5

SQUARE RING

31264-38F10

$8.42

6

SET BOLT

31280-19F10

Unavailable

7

BOLT (6X25)

09103-06212

$2.47

8

NUT

08361-3506A

$1.80
