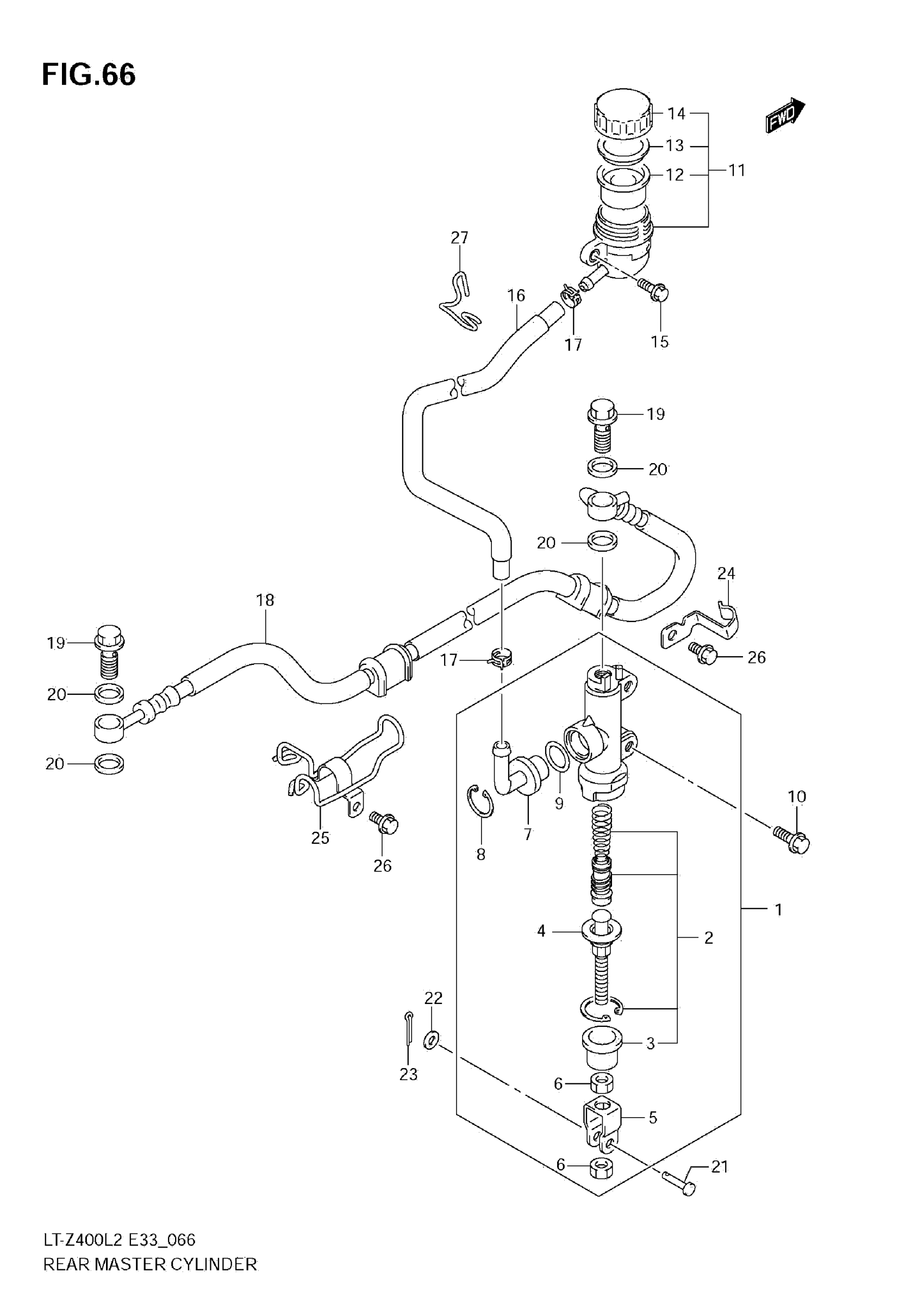

Suzuki LT-Z400L2 (2012) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-33H00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

ROD, PUSH

69670-36E00

$29.65

5

YOKE

69692-29F00

$21.77

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

CIRCLIP

69674-00B20

$3.97

9

O RING

69686-34200

$2.93

10

SCREW (6X16)

09139-06139

$3.23

11

TANK ASSY, REAR RESERVOIR

69740-03D00

$75.90

12

DIAPHRAGM

69667-00B20

$15.68

13

PLATE

69668-00B20

$7.67

14

CAP

69669-03D00

$22.65

15

BOLT

01547-0612A

$2.03

16

HOSE, REAR RESERVOIR TANK

69730-33H00

Unavailable

17

CLIP

09401-12404

$2.34

18

HOSE This part replaces 69480-33H00.

69480-33H01

$79.63

19

UNION

09360-10062

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

PIN

09200-08048

$2.92

22

WASHER (8.5X14X1.5)

09160-08090

$2.39

23

COTTER PIN

04111-2015A

$1.49

24

CLAMP, RR BRAKE HOSE

69261-33H00

Unavailable

25

GUIDE, RR BRAKE HOSE

69270-33H00

Unavailable

26

BOLT

01547-0612A

$2.03

27

GUIDE, RR RSVR TANK HOSE

69738-33H00

Unavailable
