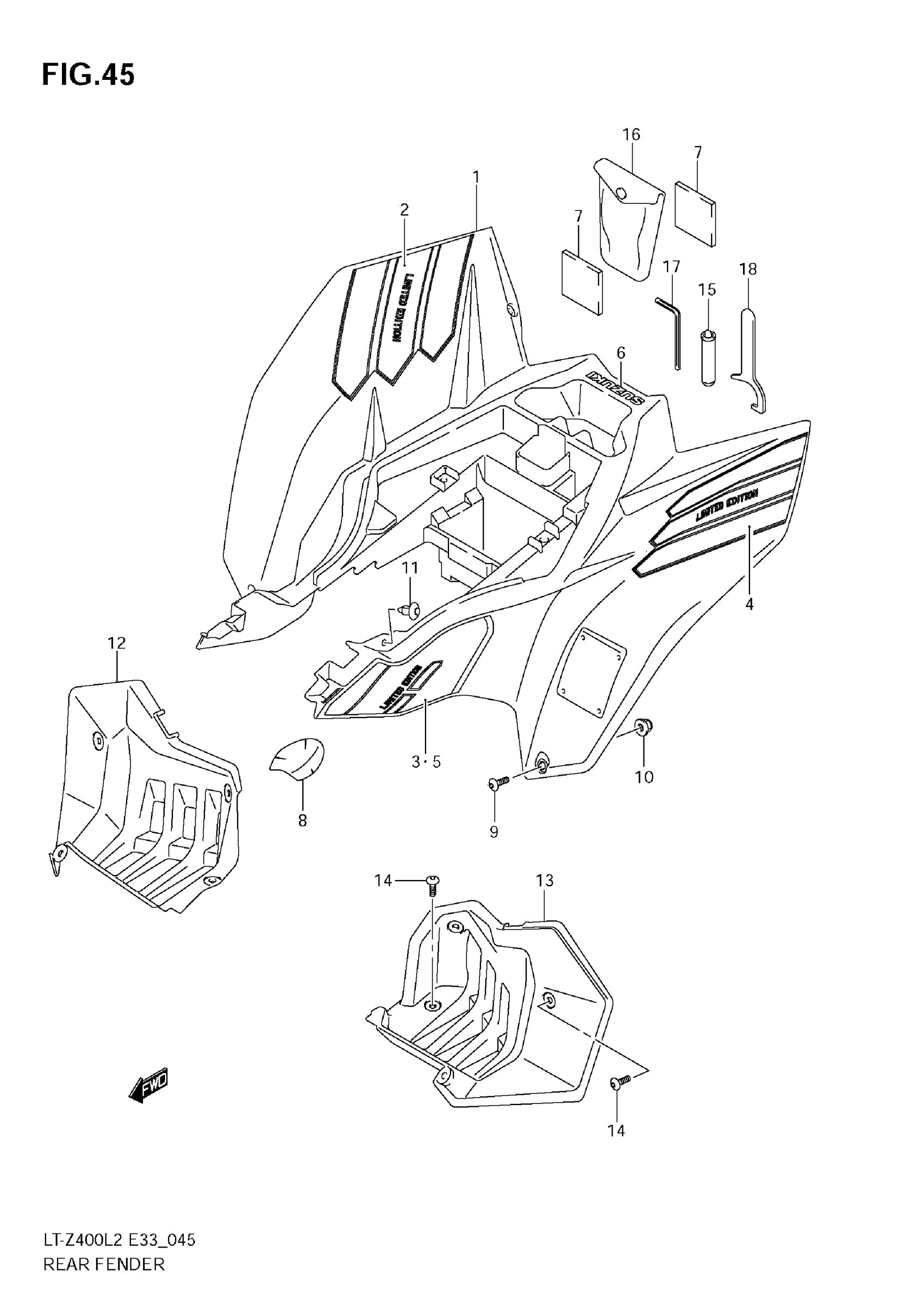

Suzuki LT-Z400L2 (2012) REAR FENDER (LT-Z400ZL2) Diagram

FENDER, REAR (BLACK)

63111-33H00-019

$617.23

TAPE,RR FENDER, This part replaces 68175-33HC0-YTZ.

68175-33HC1-YTZ

$85.38

TAPE, SIDE RH

68175-33HD0-YTZ

Unavailable

TAPE,RR FENDER, This part replaces 68176-33HC0-YTZ.

68176-33HC1-YTZ

$83.28

TAPE, SIDE LH

68176-33HD0-YTZ

Unavailable

EMBLEM SUZUKI (SILVER BLACK) This part replaces 68721-13A00-CT5.

68721-13A01-CT5

$9.48

CUSHION

33652-20C00

$2.99

SHIELD

63261-33H00

$17.37

BOLT (6X16)

09139-06158

$4.90

NUT

08319-3106A

$2.03

CLIP

09409-07333

$2.31

MUDGUARD, RH (BLACK)

63331-33H00-291

$110.28

MUDGUARD, LH (BLACK)

63341-33H00-291

$114.48

BOLT (6X16)

09139-06158

$4.90

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

TOOL ASSY This part replaces 09800-21046.

09800-21094

$24.87

HEXAGON, 5

09816-00059

$8.45

CLAMP,WRENCH

09822-00003

$10.34
