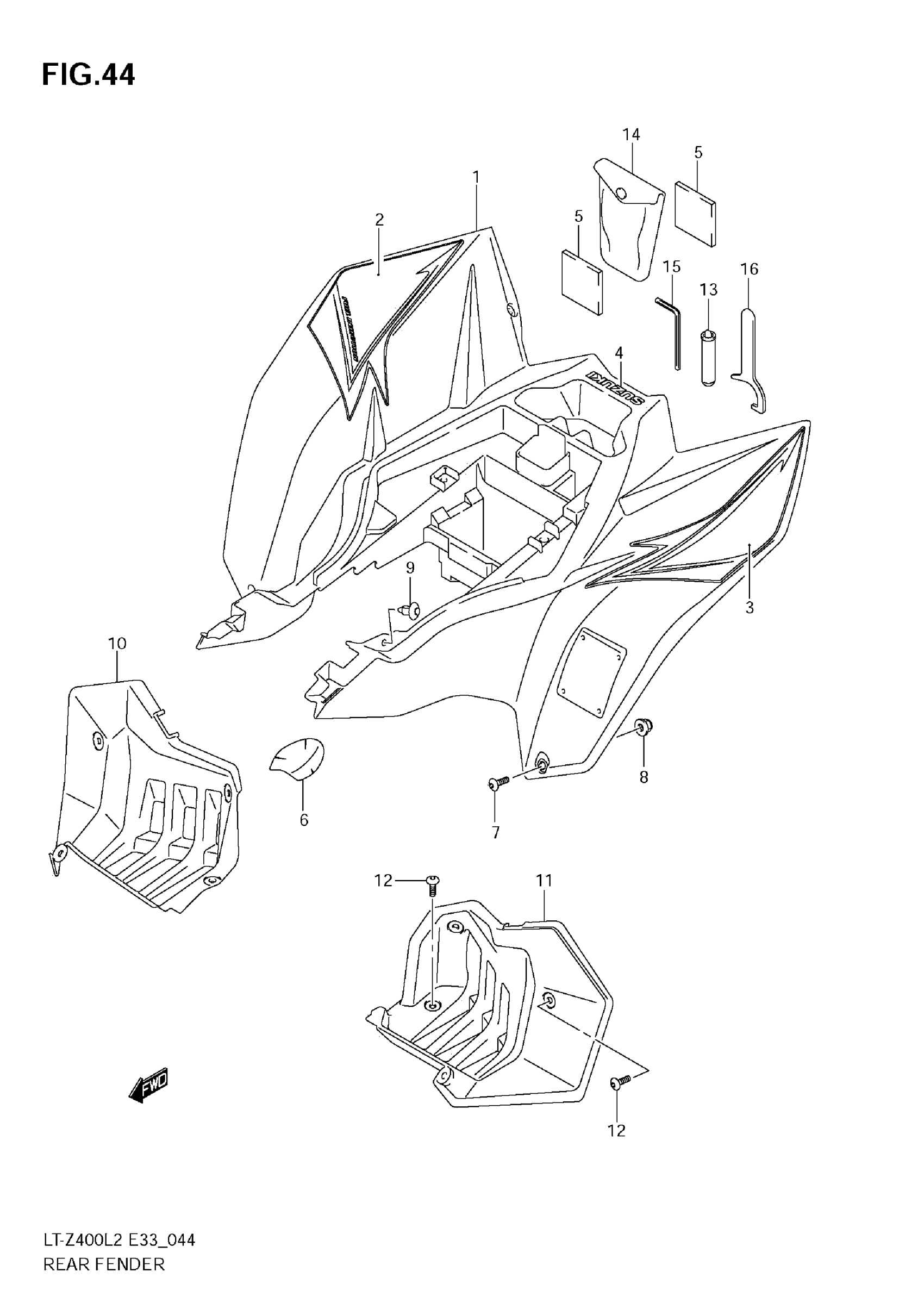

Suzuki LT-Z400L2 (2012) REAR FENDER (LT-Z400L2) Diagram

#

Description
Price

1

FENDER, REAR (WHITE)

63111-33H00-30H

$640.73

2

TAPE, RH

68175-33H10-HAP

$76.28

3

TAPE, LH

68176-33H10-HAP

$76.28

4

EMBLEM "SUZUKI" (WHITE/BLACK) This part replaces 68721-13A00-8YM.

68721-13A01-8YM

$9.30

5

CUSHION

33652-20C00

$2.99

6

SHIELD

63261-33H00

$17.37

7

SCREW (6X16)

09139-06158

$4.90

8

NUT

08319-3106A

$2.03

9

CLIP

09409-07333

$2.31

10

MUDGUARD, RH (BLACK)

63331-33H00-291

$110.28

11

MUDGUARD, LH (BLACK)

63341-33H00-291

$114.48

12

SCREW (6X16)

09139-06158

$4.90

13

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

14

TOOL ASSY This part replaces 09800-21046.

09800-21094

$24.87

15

HEXAGON, 5

09816-00059

$8.45

16

CLAMP,WRENCH

09822-00003

$10.34
