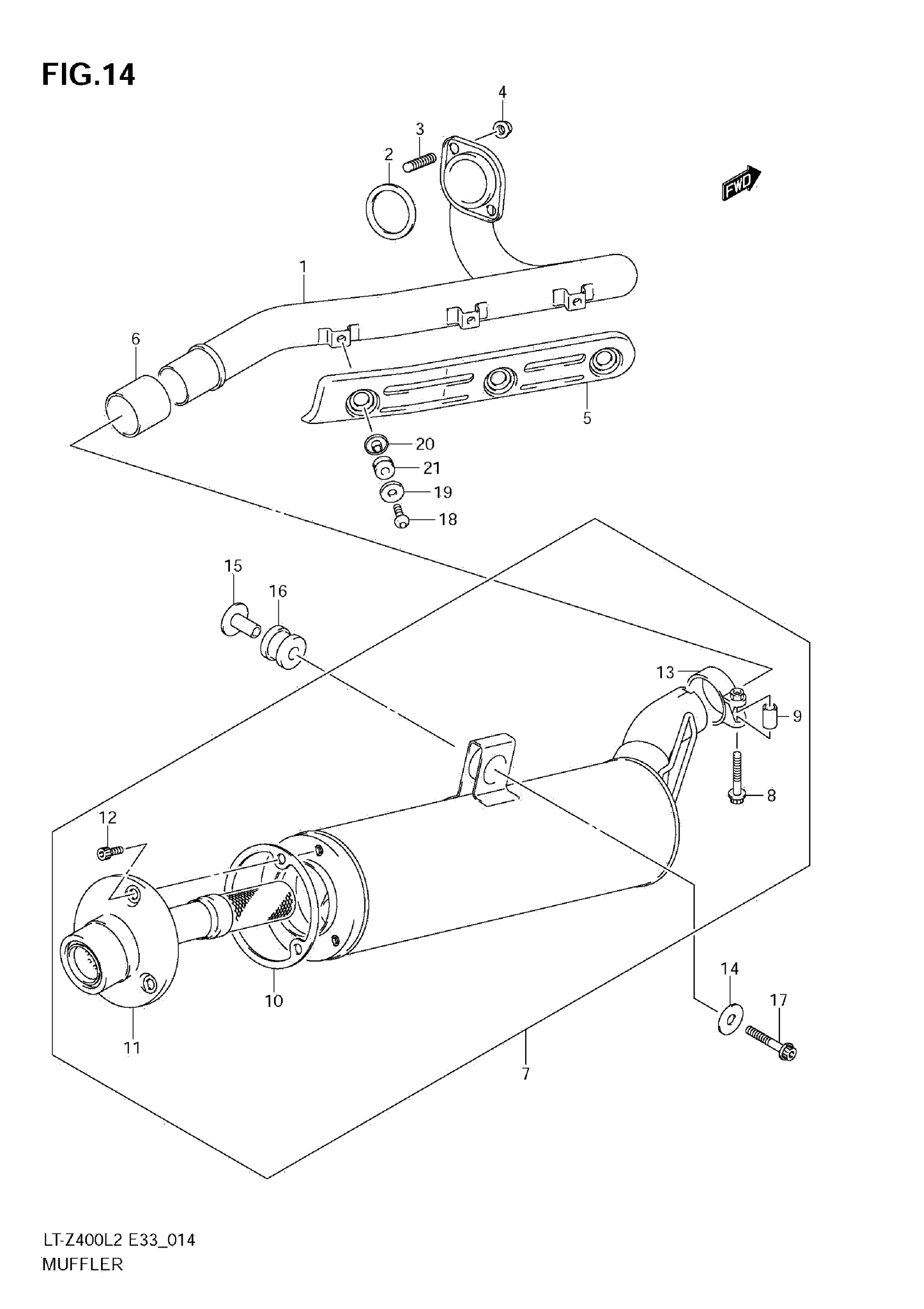

Suzuki LT-Z400L2 (2012) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-33H00

Unavailable

2

GASKET, EXHAUST PIPE

14181-29E02

$16.39

3

BOLT,STUD

01421-0825A

$2.03

4

NUT

08319-3108B

$2.73

5

COVER, EXHAUST PIPE

14180-33H00

Unavailable

6

CONNECTOR, MUFFLER

14771-07G00

$28.03

7

BODY, MUFFLER

14310-33H00

Unavailable

8

BOLT

07120-0840B

$3.82

9

SPACER

14424-07G01

$3.95

10

GASKET

14773-29F00

$6.58

11

ARRESTER

14850-07G11

$131.20

12

BOLT (6X10) This part replaces 09106-06068.

09106-06076

$3.29

13

CLAMP

14459-07G00

$21.57

14

WASHER (8.5X30X2.3)

09160-08503

$2.50

15

SPACER (8.6X12X24.2)

09180-08152

$5.83

16

CUSHION

09320-12071

$9.15

17

BOLT

07120-0840B

$3.82

18

SCREW (6X16)

09139-06139

$3.23

19

WASHER, EXHAUST PIPE COVER

14184-07G00

$1.98

20

SPACER, EXHAUST PIPE COVER

14185-07G00

$3.76

21

CUSHION

09320-08069

$8.37
