Description

Price

1

HUB, REAR WHEEL

64110-45G01

$245.55

2

RIM, REAR WHEEL (9X8.0AT) (BLACK)

65310-07G20-YPJ

Unavailable

3

NUT

09159-10114

$5.11

4

WASHER

09164-20002

$3.70

5

NUT

09141-20009

$28.85

6

COTTER PIN

04111-4035A

$1.49

7

WASHER, REAR AXLE NO.1

64723-45G00

$14.23

8

NUT, REAR AXLE

64871-45G00

$82.02

9

NUT, REAR AXLE LOCK

64872-45G00

$38.52

10

BOLT, REAR AXLE NUT

64873-45G00

$70.53

11

SNAP RING

09380-40004

$3.85

12

FLANGE,REAR SPROCKET MOUNTING

64611-33H00

$245.72

13

SPROCKET, REAR

64511-33H00

$105.25

14

BOLT (10X36)

09120-10001

$4.56

15

NUT

09159-10115

$3.55

16

TIRE, REAR

65110-07G00

$305.07

17

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

18

DUST SEAL (D:1.6,ID:39.8)

09281-40001

$6.20

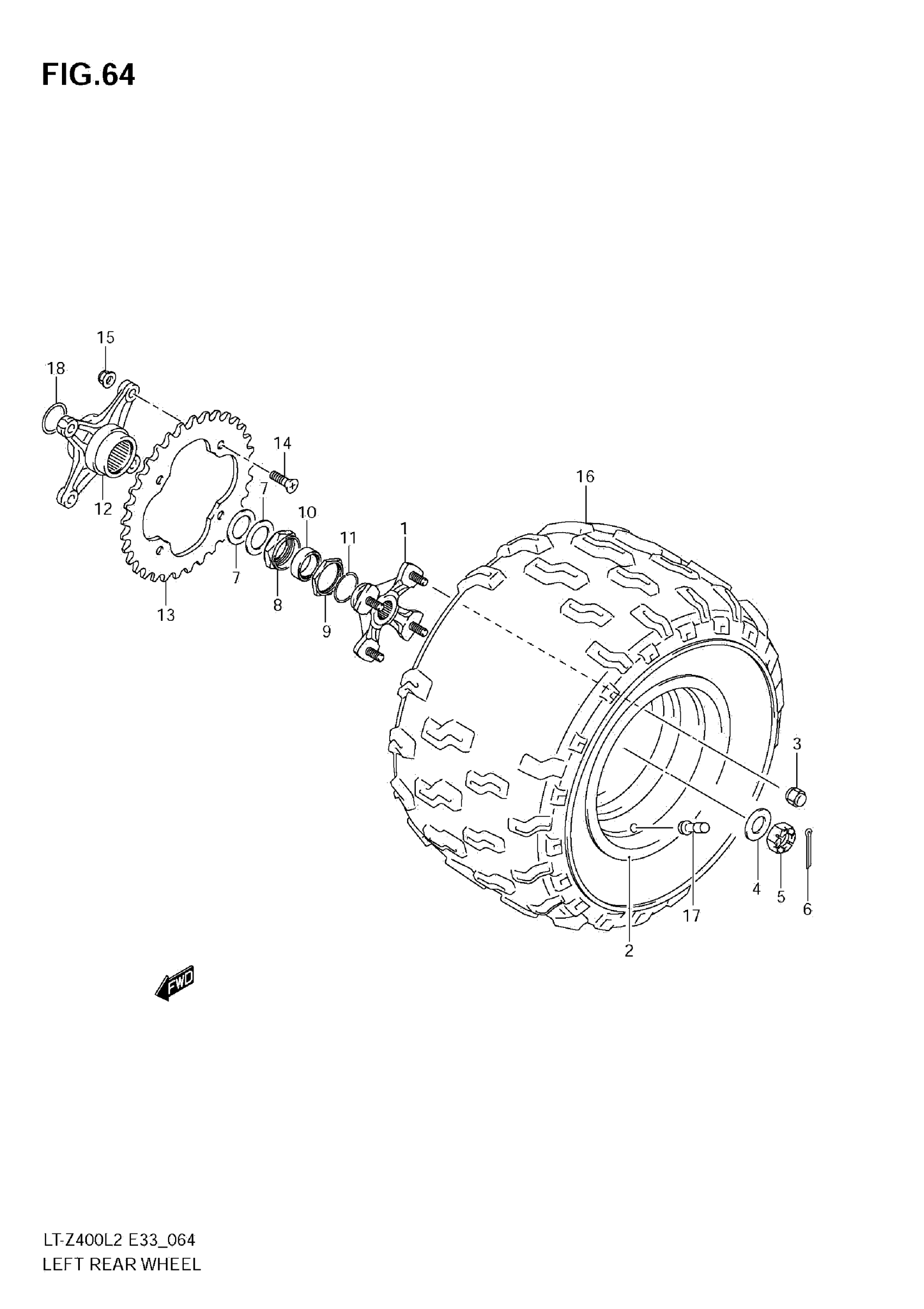

Suzuki LT-Z400L2 (2012) LEFT REAR WHEEL (LT-Z400ZL2) Diagram
