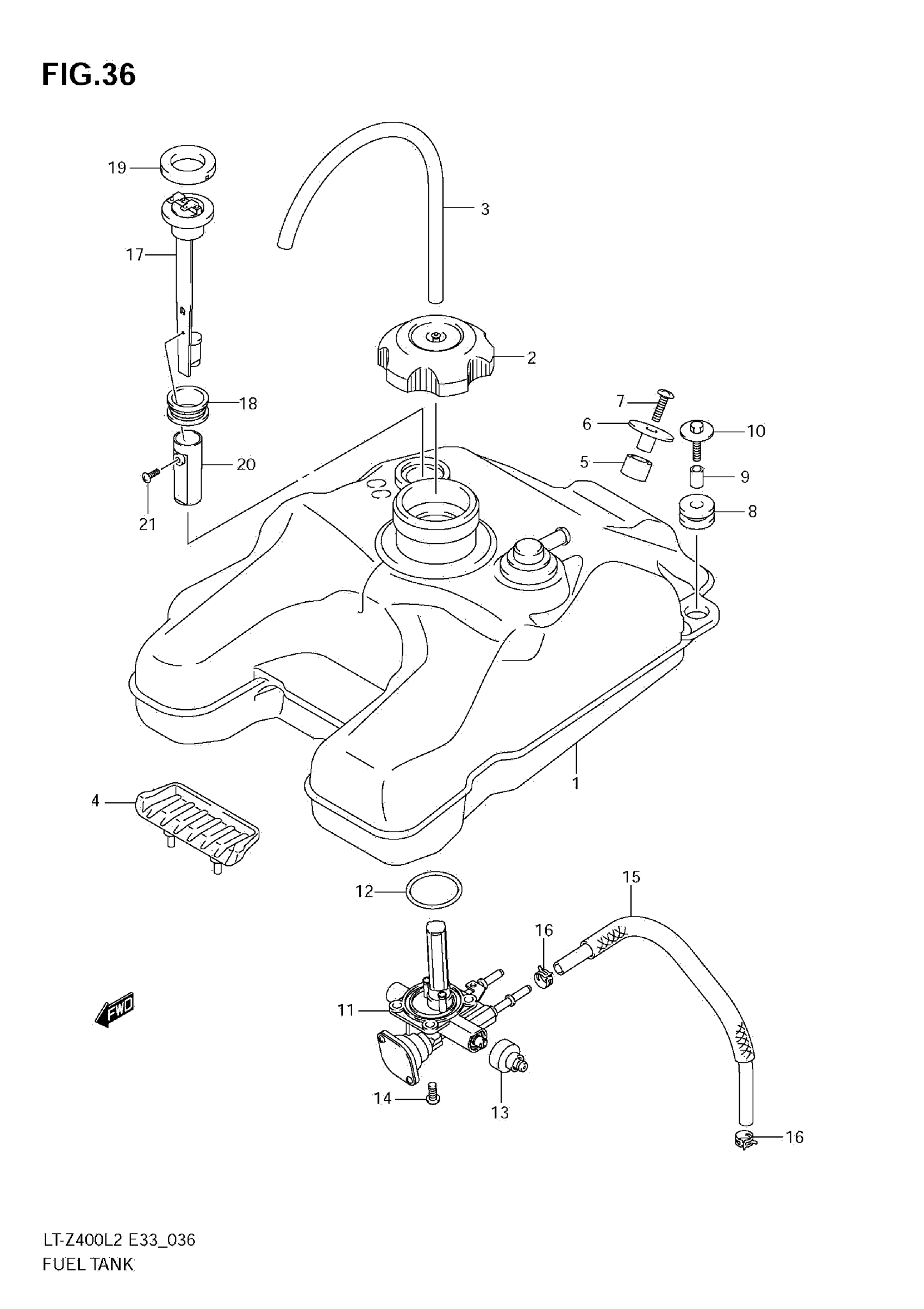

Suzuki LT-Z400L2 (2012) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-33HA0

Unavailable

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 | L600->290 This part replaces 09352-50823-600.

44421-13ER0

$10.06

4

CUSHION, FRONT

44541-33H00

Unavailable

5

SPACER, SEAT HOOK NO.2

44133-33H00

Unavailable

6

SPACER, SEAT HOOK

44132-33H00

Unavailable

7

SCREW

02142-0625B

$2.10

8

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

9

SPACER (6.5X10X14)

09180-06293

$2.58

10

BOLT (6X25)

09116-06190

$2.34

11

COCK ASSY,FUEL This part replaces 44300-33H00.

44300-33H01

$267.08

12

O RING

44348-33H00

$27.03

13

CAP, COCK VALVE

44363-33H00

$7.05

14

BOLT

01547-0612A

$2.03

15

HOSE, FUEL

44421-33H01

$74.52

16

CLIP

09401-12410

$2.31

17

GAUGE ASSY,FUEL This part replaces 34810-45G00.

34810-45G01

$102.47

18

GASKET

34825-45G00

$10.95

19

RETAINER

34813-45G00

$7.53

20

COVER

34827-45G00

Unavailable

21

SCREW

02142-0408A

$1.55
