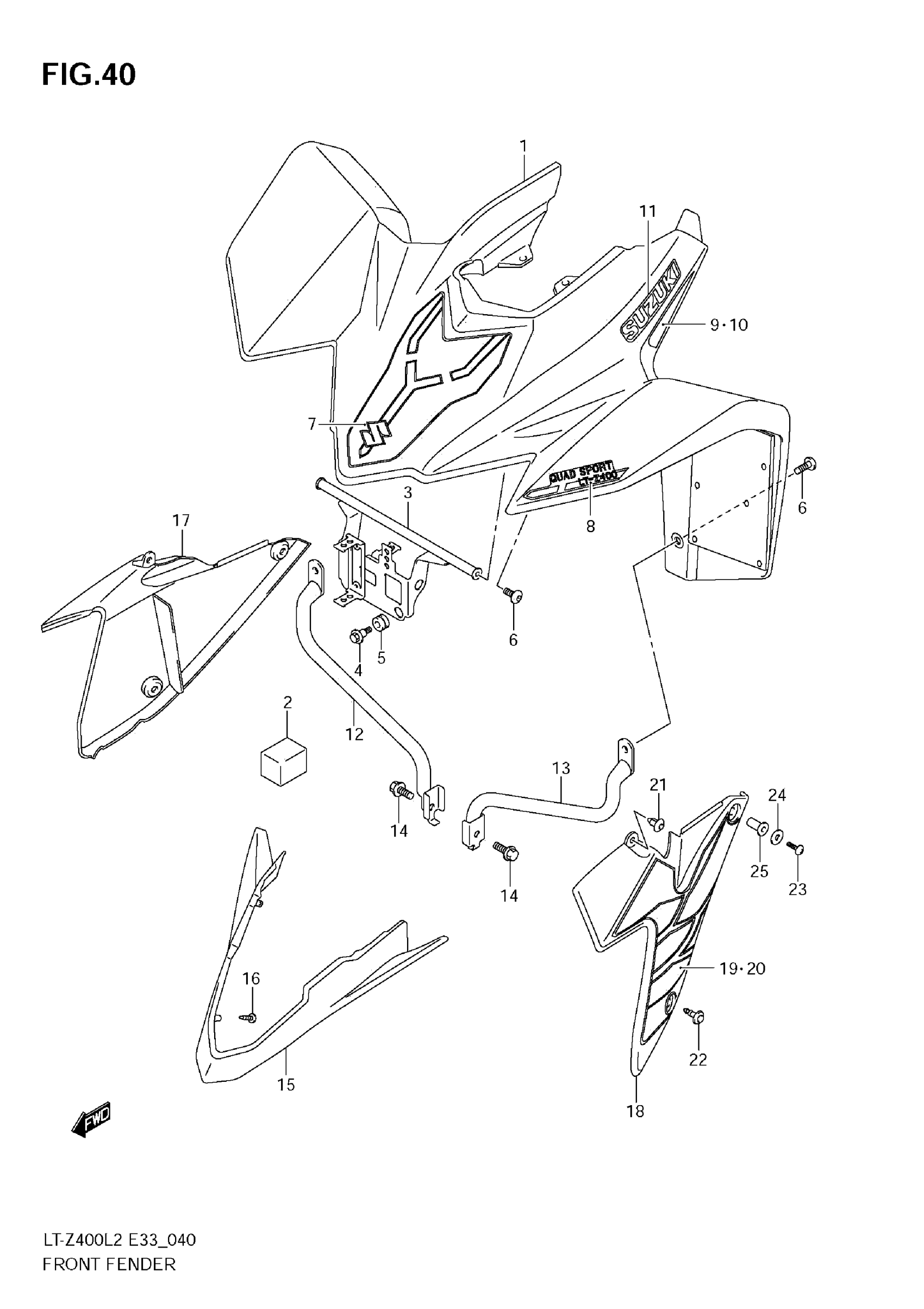

Suzuki LT-Z400L2 (2012) FRONT FENDER (LT-Z400ZL2) Diagram

#

Description
Price

1

FENDER, FRONT (GREEN)

53111-33H00-YTU

Unavailable

2

CUSHION, GUARD

44558-33H00

Unavailable

3

HOLDER, ELECTRIC PARTS

47410-33H00

Unavailable

4

BOLT (6X19)

09111-06092

$2.62

5

CUSHION

09320-08068

Unavailable

6

SCREW (6X16)

09139-06158

$4.90

7

TAPE, FRONT

68155-33HC0-YTZ

Unavailable

8

TAPE, FRONT LH

68156-33HD0-HRG

Unavailable

9

TAPE, REAR SIDE RH

68155-33HF0-YTZ

Unavailable

10

TAPE, REAR SIDE LH

68156-33HF0-YTZ

Unavailable

11

EMBLEM, "SUZUKI" (BLACK/GREEN)

68661-29F00-HRN

Unavailable

12

BRACKET, FENDER RH

53210-33H00

$55.17

13

BRACKET, FENDER LH

53220-33H00

$55.17

14

BOLT (8X16)

09103-08450

Unavailable

15

COVER, HEADLAMP (BLACK)

53119-45G00-019

$101.13

16

SCREW

03541-0516A

$1.49

17

COVER, SIDE RH (BLACK)

53112-33H00-019

Unavailable

18

COVER, SIDE LH (BLACK)

53122-33H00-019

Unavailable

19

TAPE, RH

68155-33HE0-YTZ

Unavailable

20

TAPE, LH

68156-33HE0-YTZ

Unavailable

21

CLIP

09409-07333

$2.31

22

CLIP

09409-08327

$2.32

23

SCREW

02142-0520B

$1.78

24

WASHER (5.5X20X1.4)

09160-05046

$1.92

25

NUT

09159-05045

$7.37
