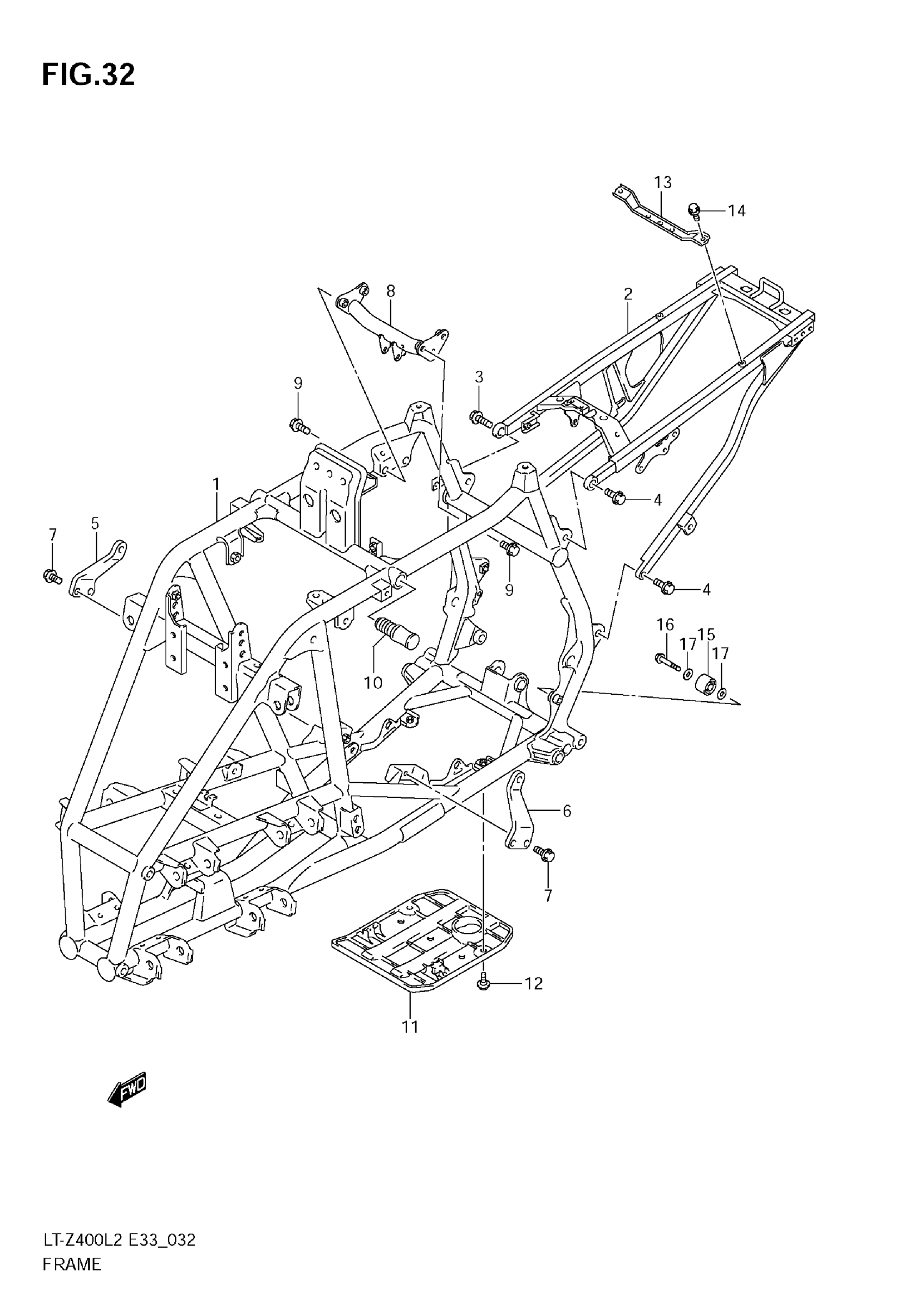

Suzuki LT-Z400L2 (2012) FRAME (LT-Z400L2) Diagram

#

Description
Price

1

FRAME (BLUE)

41100-33H10-YBA

$2,522.45

2

RAIL, SEAT (SILVER)

41200-33H01-YD8

Unavailable

3

BOLT (10X30) | RH

09103-10421

$4.25

4

BOLT (10X20) | LH

09103-10424

$4.77

5

PLATE, MOUNT FRONT RH

41911-07G00

$48.38

6

PLATE, MOUNT FRONT LH

41912-07G00

$48.38

7

BOLT

01550-0820A

$2.23

8

PLATE, MOUNT UPPER

41990-07G40

$100.02

9

BOLT

01560-0816B

Unavailable

10

GUARD, RADIATOR

43978-33H00

Unavailable

11

PROTECTOR, ENGINE

42511-07G00

$46.22

12

BOLT (6X12)

09111-06085

$4.54

13

PLATE, BATTERY

41560-33H01

$32.17

14

BOLT (6X20)

09103-06286

$2.20

15

ROLLER, CHAIN CONTROL

43910-37F00

$70.53

16

BOLT (8X41)

09103-08083

$3.70

17

SHIM (8X12X1)

09181-08111

$1.93
