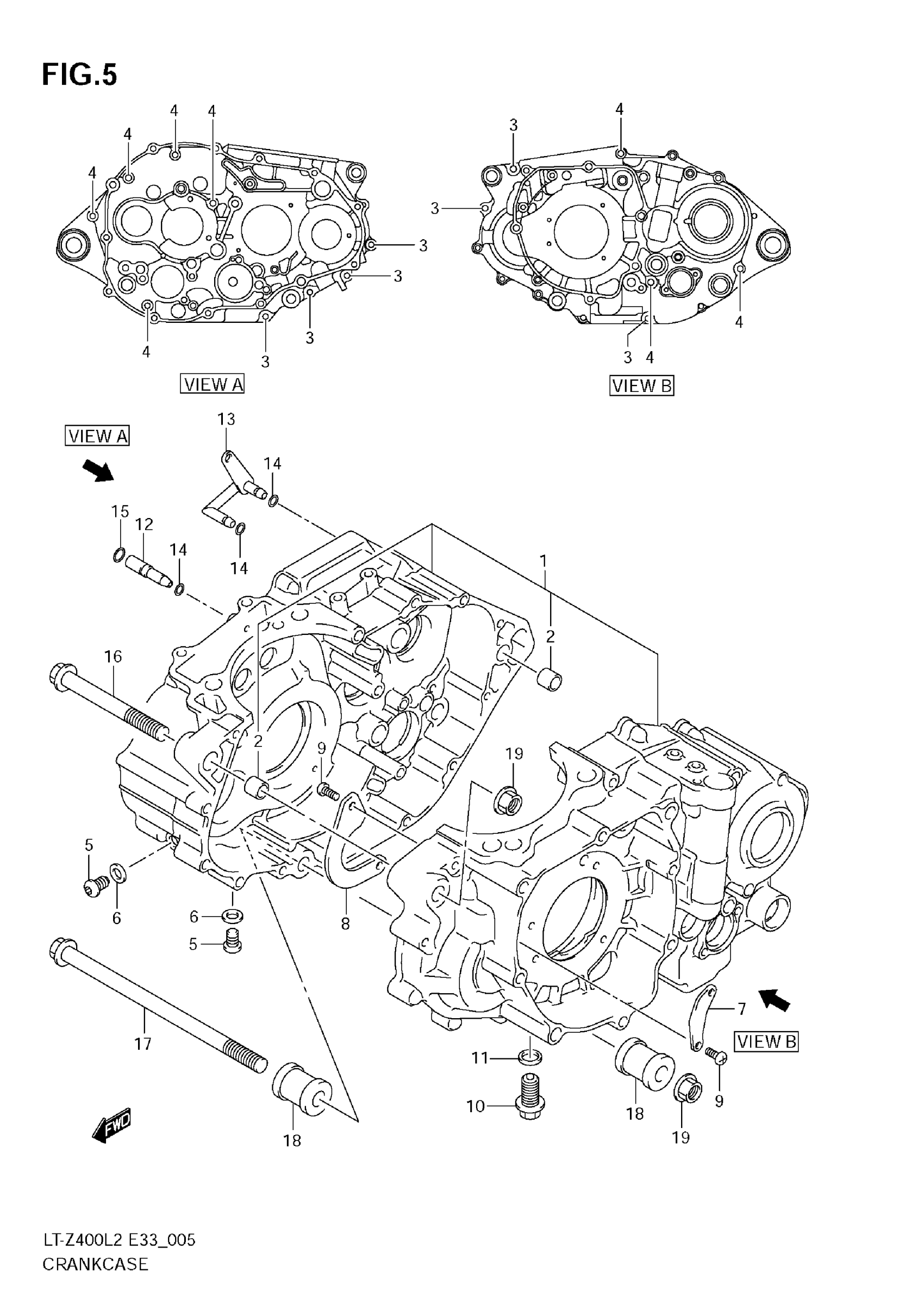

Suzuki LT-Z400L2 (2012) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-07820

Unavailable

2

PIN

04211-13189

$2.19

3

BOLT

01547-0640A

$2.32

4

BOLT

01547-0670A

$2.92

5

PLUG

09248-10010

$4.17

6

GASKET (10X14X3.6)

09168-10002

$2.13

7

SEPARATOR, OIL NO.1

11323-29F00

$3.22

8

SEPARATOR, OIL NO.2

11324-29F00

$5.17

9

SCREW (6X12)

09125-06122

$2.44

10

PLUG, OIL DRAIN

09247-12106

$2.73

11

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

12

PIPE, OIL INNER NO.1

11451-29F00

Unavailable

13

PIPE, T/M OIL INNER NO.2

11460-07G00

$34.15

14

O RING (D:1.9,ID:4.8)

09280-05004

$2.11

15

O RING (D:1.9,ID:6.8)

09280-07004

$1.53

16

BOLT (10X100)

09103-10110

$8.43

17

BOLT (10X180)

09103-10136

$9.32

18

SPACER,ENGINE MOUNTING (L:30)

11611-09F51

$17.67

19

NUT

09159-10115

$3.55
