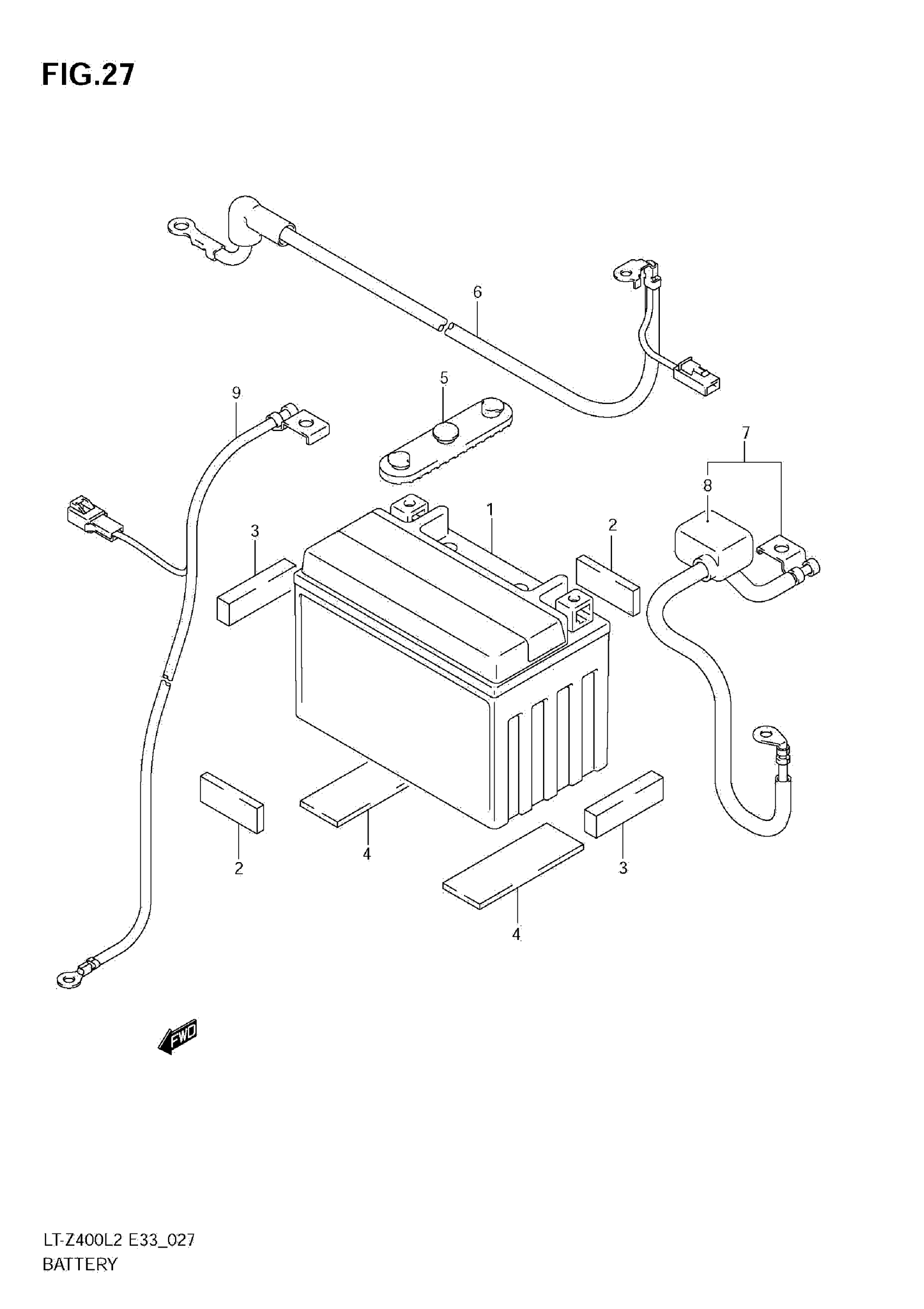

Suzuki LT-Z400L2 (2012) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (12V,8AH) This part replaces 33610-32C10.

33610-33E20

Unavailable

2

PROTECTOR (20X50X11)

33652-31F00

$3.43

3

CUSHION, REAR FENDER REAR | CUT AS REQUIRED This part replaces 33652-08420.

33651-37000

$4.48

4

PROTECTOR (10X110X5)

33652-33H00

Unavailable

5

PROTECTOR, BATTERY

33652-07G00

$4.04

6

WIRE,STARTER MO This part replaces 33810-33H10.

33810-33H11

$32.85

7

WIRE,BATTERY PL This part replaces 33820-33H00.

33820-33H02

$33.30

8

CAP, BATTERY PLUS

33624-16E00

$6.00

9

WIRE,BATTERY MI This part replaces 33860-33H00.

33860-33H01

$34.90
