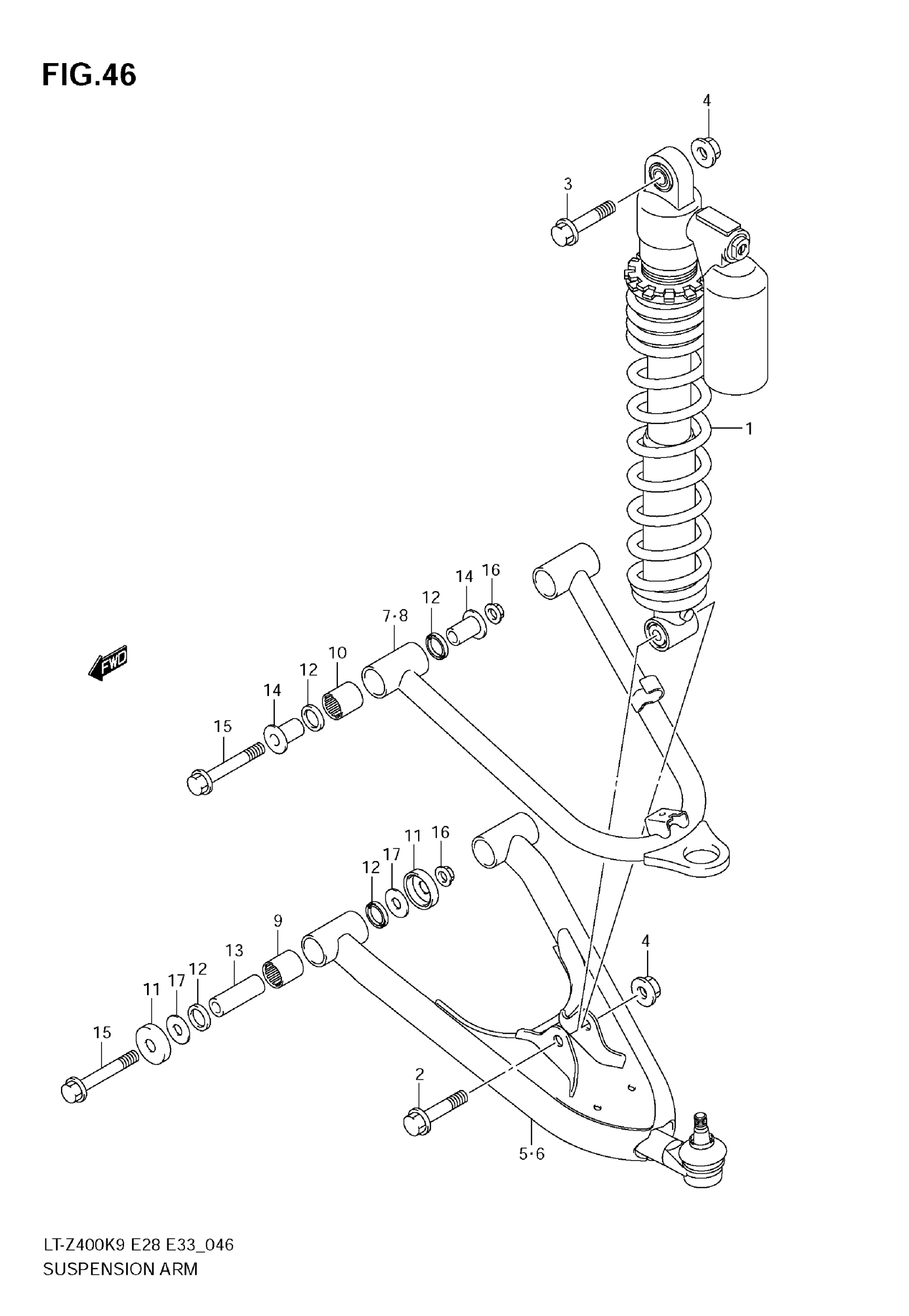

Suzuki LT-Z400 (2009) SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (RED) | E33 FOR YU1/ANT

52100-33H00-YKS

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (WHITE) | E33 FOR 30H

52100-33H00-28W

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (RED) | E28 FOR YU1/ANT

52100-33H10-YKS

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (WHITE) | E28 FOR 30H

52100-33H10-28W

Unavailable

2

BOLT, LOWER (10X48)

09103-10352

$5.88

3

BOLT, UPPER (10X38)

09103-10351

$6.20

4

NUT

09159-10115

$3.55

5

ARM ASSY, SUSPENSION LOWER RH (BLUE) | LT-Z400K9

52410-33H00-YBA

Unavailable

5

ARM ASSY, SUSPENSION LOWER RH (BLACK) | LT-Z400ZK9

52410-33H00-019

Unavailable

6

ARM ASSY, SUSPENSION LOWER LH (BLUE) | LT-Z400K9

52420-33H00-YBA

Unavailable

6

ARM ASSY, SUSPENSION LOWER LH (BLACK) | LT-Z400ZK9

52420-33H00-019

Unavailable

7

ARM ASSY, SUSPENSION UPPER RH (BLUE) | LT-Z400K9

52430-33H00-YBA

Unavailable

7

ARM ASSY, SUSPENSION UPPER RH (BLACK) | LT-Z400ZK9

52430-33H00-019

Unavailable

8

ARM ASSY, SUSPENSION UPPER LH (BLUE) | LT-Z400K9

52440-33H00-YBA

Unavailable

8

ARM ASSY, SUSPENSION UPPER LH (BLACK) | LT-Z400ZK9

52440-33H00-019

Unavailable

9

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

10

BEARING, UPPER

09263-17048

$24.35

11

SEAL,DUST This part replaces 52454-43B00.

52454-43B01

$7.73

12

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.76

13

SPACER, LOWER

52455-43B00

$21.67

14

SPACER, UPPER

52455-07G00

$27.23

15

BOLT

09103-10033

$6.17

16

NUT

09159-10115

$3.55

17

WASHER

08211-10281

$2.03
