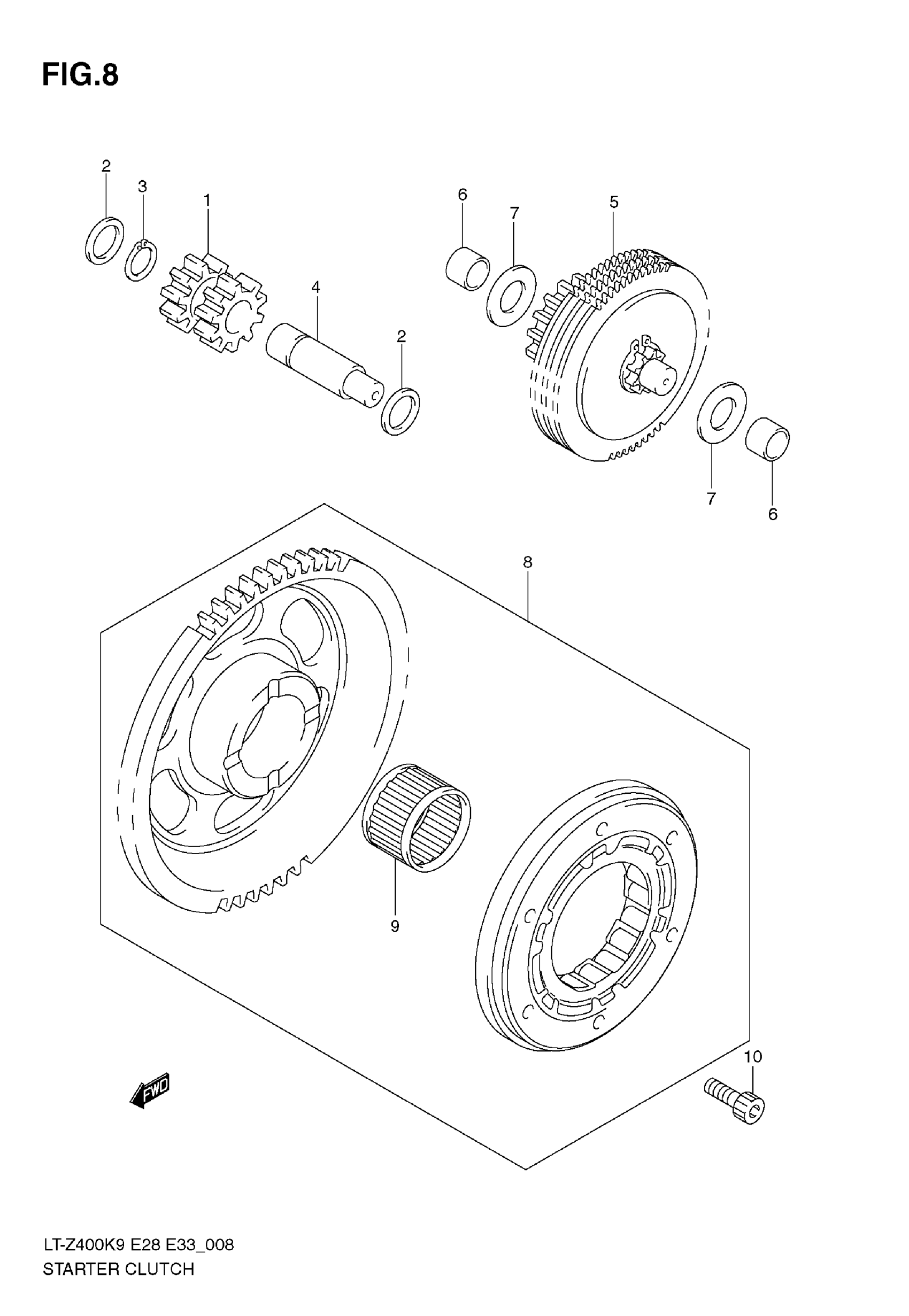

Suzuki LT-Z400 (2009) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE NO.1

12611-07G00

$59.87

2

WASHER

09181-12130

$2.06

3

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

4

PIN

12615-07G00

$17.74

5

LIMITER ASSY, STARTER IDLE GEAR

12600-29F00

$284.18

6

BUSH

12618-31G00

$4.03

7

WASHER

08211-10221

$2.28

8

CLUTCH SET, STARTER | Includes Item(s) 9

12600-29810

$233.93

9

BEARING (25X31X19)

09263-25049

$28.61

10

BOLT (6X16)

09106-06125

$3.40
