2009 Suzuki LT-Z400 Seat Diagram

← All diagrams

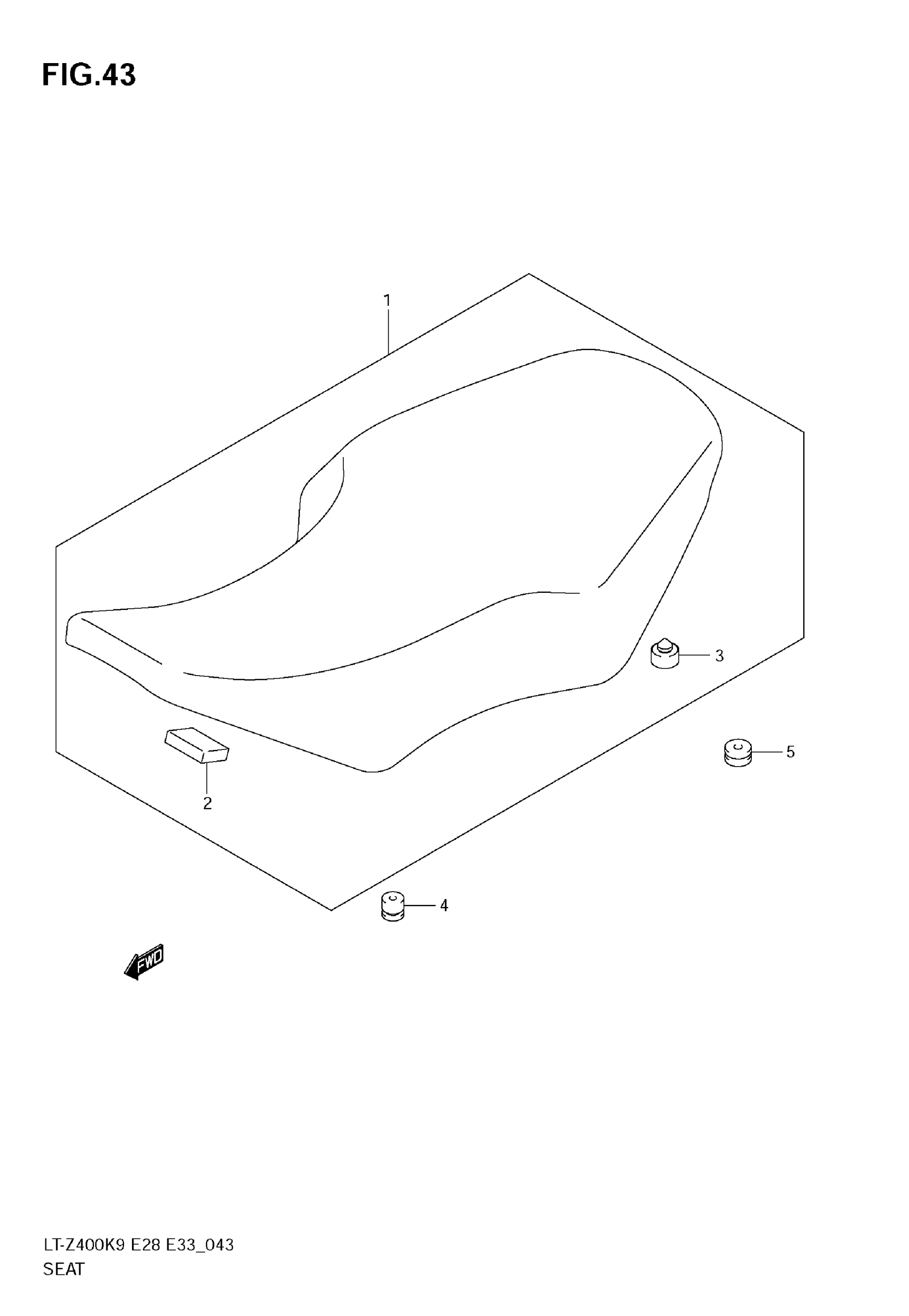

Find the part on the Seat diagram for your 2009 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-Z400 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY | LT-Z400K9 This part replaces 45100-33H00-U5J.

45100-33H01-U5J

1
Out of stock

1

SEAT ASSY | LT-Z400ZK9; Includes Item(s) 2 - 3 This part replaces 45100-33H00-P21.

45100-33H01-P21

1
Out of stock

2

CUSHION

45146-33H00

1
Out of stock

3

CUSHION

09321-10012

3
Out of stock

4

CUSHION, SEAT MOUNT FRONT

45141-07G00

2
Out of stock

5

CUSHION, SEAT MOUNT REAR

09320-09017

2
Out of stock
