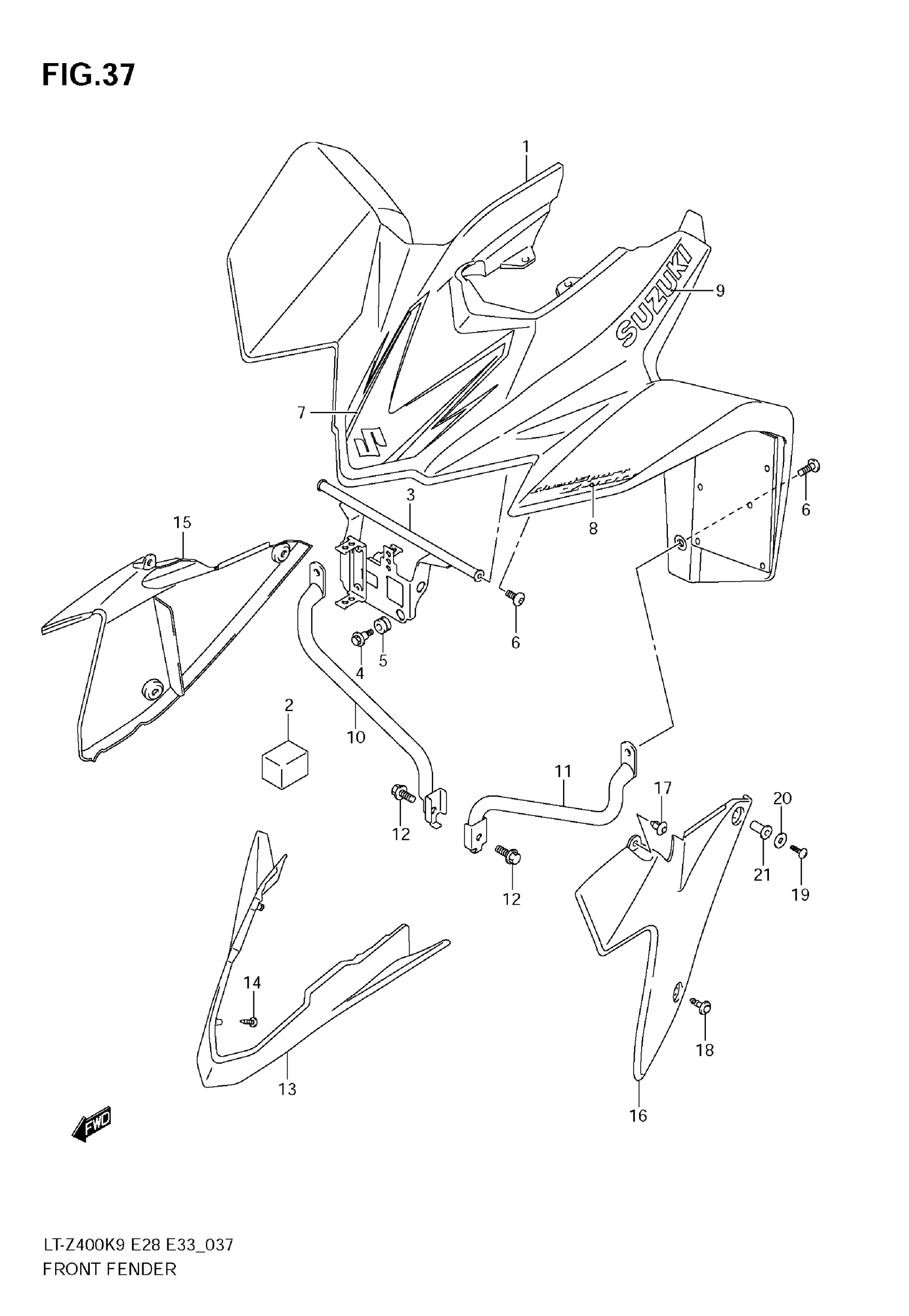

Suzuki LT-Z400 (2009) FRONT FENDER (LT-Z400) Diagram

#

Description
Price

1

FENDER, FRONT (WHITE)

53111-33H00-30H

$676.23

1

FENDER, FRONT (YELLOW)

53111-33H00-YU1

Unavailable

2

CUSHION, GUARD

44558-33H00

Unavailable

3

HOLDER, ELECTRIC PARTS

47410-33H00

Unavailable

4

BOLT

09111-06092

$3.30

5

CUSHION

09320-08068

Unavailable

6

SCREW

09139-06158

$4.42

7

TAPE, FRONT | FOR 30H

68155-33H00-FVG

Unavailable

7

TAPE, FRONT | FOR YU1

68155-33H00-FVH

Unavailable

8

EMBLEM, FRONT LH | FOR 30H

68151-33H00-FVJ

$22.08

8

EMBLEM, FRONT LH | FOR YU1

68151-33H00-DCP

Unavailable

9

EMBLEM,SUZUKI | FOR 30H This part replaces 68661-29F00-8YM.

68661-29F01-8YM

$21.97

9

EMBLEM,SUZUKI | FOR YU1 This part replaces 68661-29F00-GY8.

68661-29F01-GY8

$22.80

10

BRACKET, FENDER RH

53210-33H00

$62.27

11

BRACKET, FENDER LH

53220-33H00

$62.27

12

BOLT

09103-08431

$3.62

13

COVER, HEADLAMP (WHITE)

53119-45G00-30H

$115.72

13

COVER, HEADLAMP (YELLOW)

53119-45G00-YU1

$114.15

14

SCREW

03541-0516A

$1.37

15

COVER, SIDE RH (WHITE)

53112-33H00-30H

$106.75

15

COVER, SIDE RH (YELLOW)

53112-33H00-YU1

$106.75

16

COVER, SIDE LH (WHITE)

53122-33H00-30H

$257.36

16

COVER, SIDE LH (YELLOW)

53122-33H00-YU1

$106.75

17

CLIP, UPPER

09409-07333

$2.29

18

CLIP, LOWER

09409-08327

$2.31

19

SCREW

02142-0520B

$1.77

20

WASHER

09160-05046

$1.90

21

NUT

09159-05045

$6.65
