Description

Price

1

HUB, REAR WHEEL

64110-45G01

$245.55

2

RIM, REAR WHEEL (9X8.0AT) | LT-Z400K9

65310-07G10

$559.05

2

RIM, REAR WHEEL (9X8.0AT) (BLACK) | LT-Z400ZK9

65310-07G20-YPJ

Unavailable

3

NUT

09159-10114

$5.11

4

WASHER

09164-20002

$3.70

5

NUT, HUB

09141-20009

$28.85

6

COTTER PIN

04111-4035A

$1.49

7

AXLE, REAR

64711-33H00

$786.80

8

HOUSING, REAR DISC PLATE

69212-33H00

$251.78

9

SEAL, DUST

09281-40001

$6.20

10

HOUSING, RR AXLE BEARING

64715-33H00

$299.30

11

SPACER, RR AXLE BEARING

64731-45G00

$73.40

12

BRG,RR AXLE,40X This part replaces 09262-40015.

09262-40020

$65.39

13

SEAL, RR AXLE BEARING DUST

09283-52005

$15.29

14

DISC, REAR BRAKE

69211-07G00

$282.30

15

BOLT, DISC

09106-08160

$3.57

16

TIRE, REAR

65110-07G00

$305.07

17

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

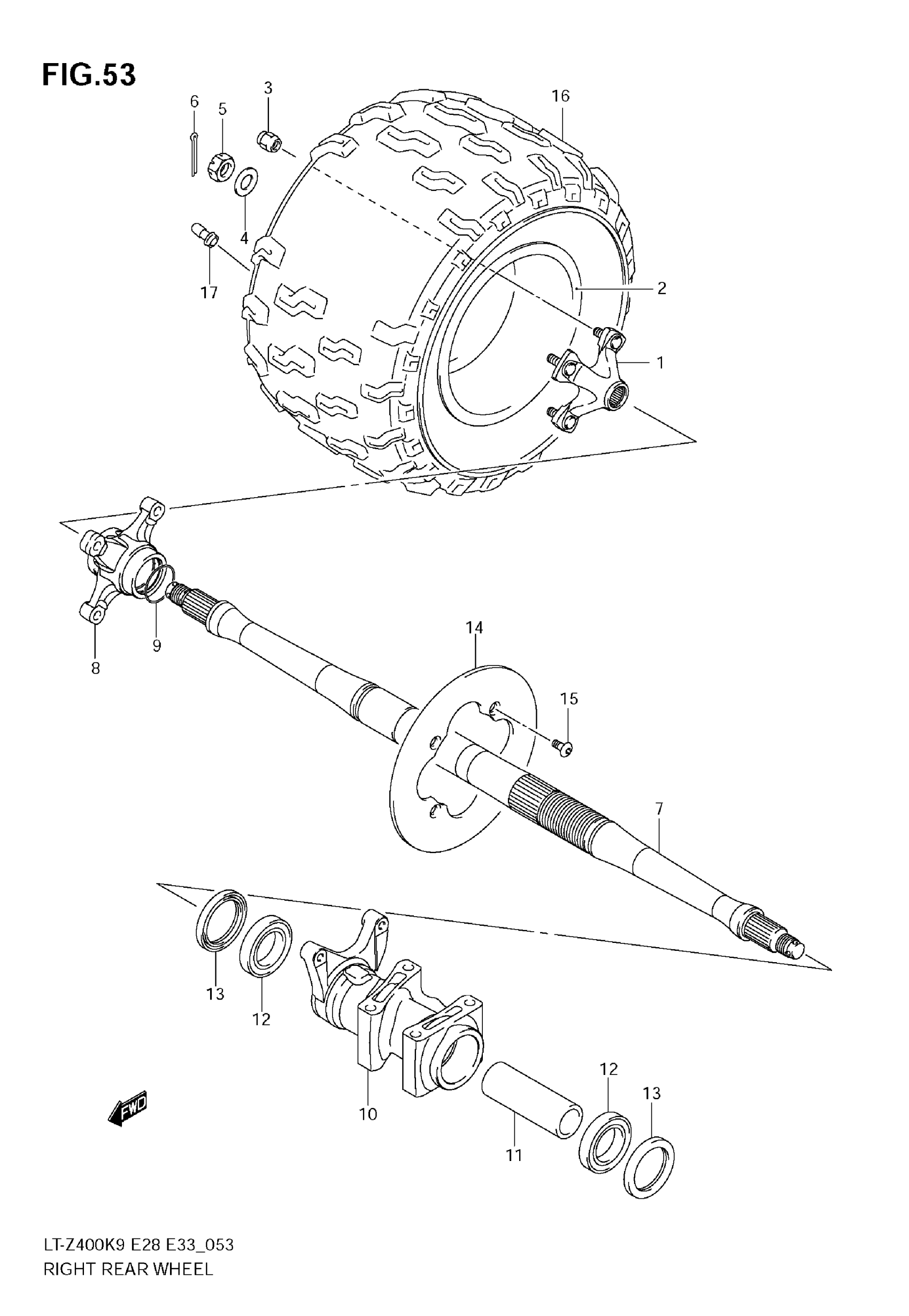

Suzuki LT-Z400 (2009) RIGHT REAR WHEEL Diagram
