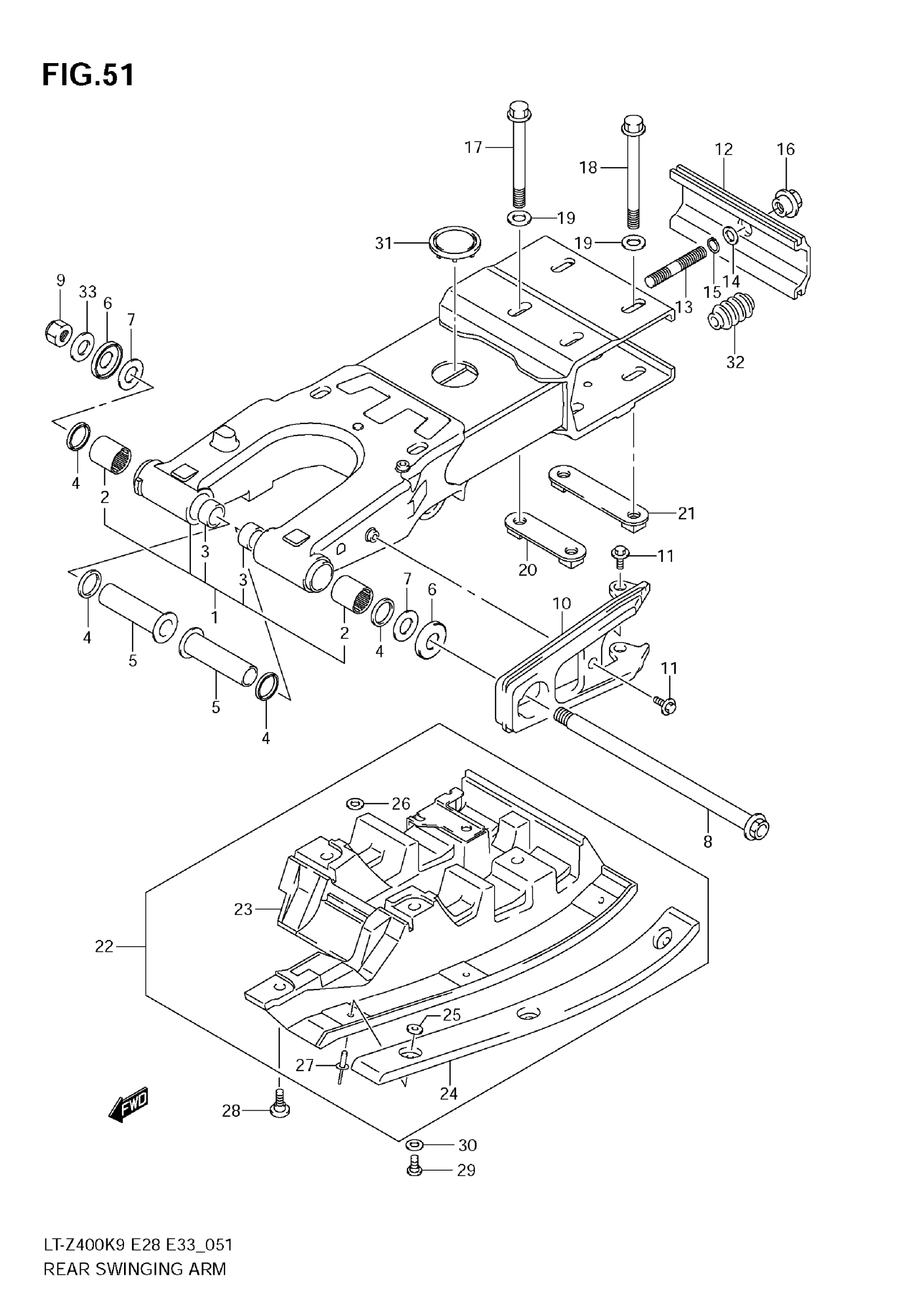

Suzuki LT-Z400 (2009) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM SET, REAR | Includes Item(s) 2 - 3

61101-07840

Unavailable

2

BEARING, PIVOT

09263-22017

$20.38

3

BUSH, RR SWINGING ARM PIVOT

61261-07G00

$19.68

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.46

5

SPACER

61252-07G00

$42.57

6

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$6.42

7

WASHER, THRUST

08211-17341

$2.53

8

SHAFT, PIVOT

61211-33H00

$108.50

9

NUT

09159-16007

$11.37

10

BUFFER,CHAIN TO This part replaces 61273-07G00.

61273-07G01

$20.32

11

BOLT

09116-06192

$2.44

12

PLATE, CHAIN ADJUSTER

61421-07G00

$85.67

13

BOLT, CHAIN ADJUSTER

09108-12014

$4.67

14

WASHER, CHAIN ADJUSTER NUT

09160-20081

$2.80

15

CIRCLIP

08331-3120A

$2.01

16

NUT, CHAIN ADJUSTER

61422-07G00

$20.81

17

BOLT, FR

09103-12074

$7.36

18

BOLT, RR

09103-12075

$7.02

19

WASHER

09160-12103

$2.89

20

WASHER, AXLE HOUSING SET FR

61470-07G10

$12.11

21

WASHER, AXLE HOUSING SET RR

61480-07G10

$13.14

22

GUARD SET, SWINGING ARM UNDER | Includes Item(s) 23 - 27

61305-07G10

$279.42

23

GUARD, SWINGING ARM UNDER

61391-07G10

$177.63

24

BUFFER, SWGARM GUARD

61396-07G20

Unavailable

25

WASHER, BUFFER

09160-04027

Unavailable

26

WASHER, INNER PLATE

09160-05049

$2.35

27

RIVET, BUFFER

09229-04048

Unavailable

28

BOLT, GUARD

61393-09F10

$6.72

29

BOLT, GUARD CENTER

09106-08076

$5.52

30

WASHER, GUARD CENTER

08322-0110B

$2.37

31

CAP, RR SWINGING ARM

61222-05A01

$16.38

32

BOOT, CHAIN ADJUSTER BOLT

61425-07G00

$6.63

33

WASHER, PIVOT

09160-16031

$2.80
