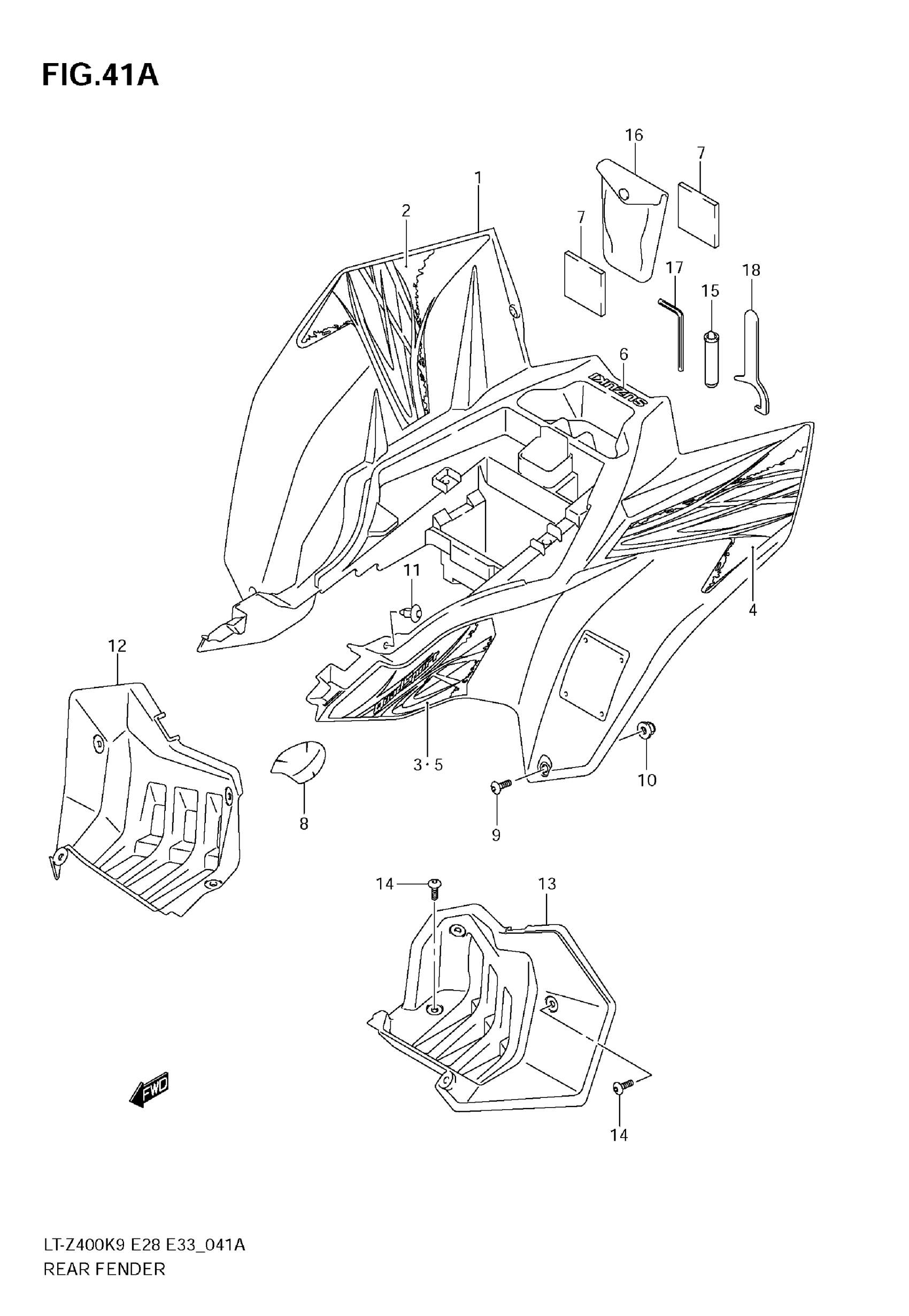

Suzuki LT-Z400 (2009) REAR FENDER (LT-Z400Z) Diagram

#

Description
Price

1

FENDER, REAR (RED)

63111-33H00-YT9

$640.73

2

TAPE, RH

68175-33HA0-GVM

Unavailable

3

TAPE, SIDE RH

68175-33HB0-GWA

Unavailable

4

TAPE, LH

68176-33HA0-GVM

Unavailable

5

TAPE, SIDE LH

68176-33HB0-GWA

Unavailable

6

EMBLEM

68721-13A00-ANT

Unavailable

7

CUSHION

33652-20C00

$2.99

8

SHIELD

63261-33H00

$17.37

9

BOLT

09139-06158

$4.90

10

NUT

08319-3106A

$2.03

11

CLIP

09409-07333

$2.31

12

MUDGUARD, RH (BLACK)

63331-33H00-291

$110.28

13

MUDGUARD, LH (BLACK)

63341-33H00-291

$114.48

14

BOLT

09139-06158

$4.90

15

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

16

TOOL ASSY This part replaces 09800-21046.

09800-21094

$24.87

17

HEXAGON, 5

09816-00059

$8.45

18

CLAMP,WRENCH

09822-00003

$10.34
