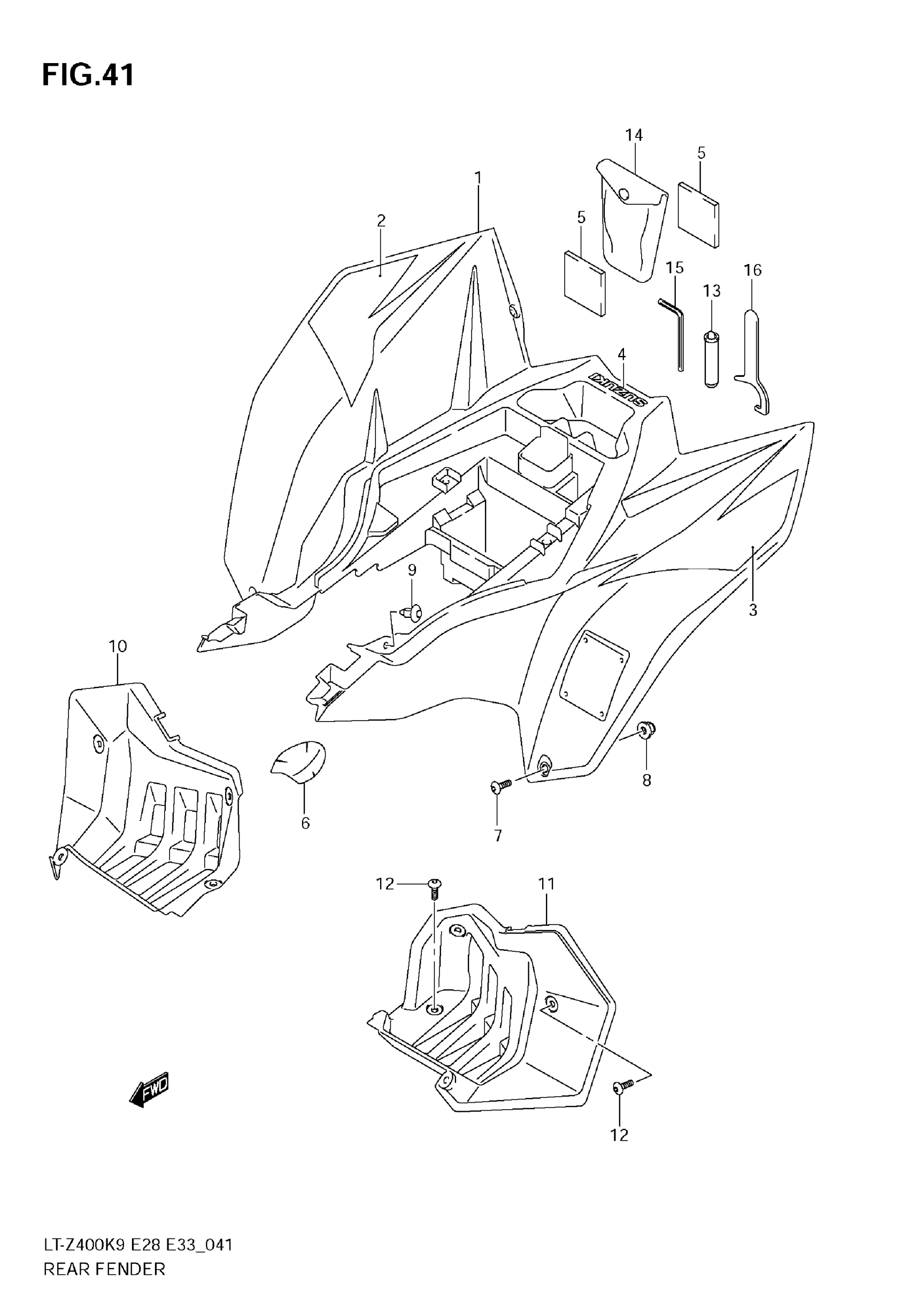

Suzuki LT-Z400 (2009) REAR FENDER (LT-Z400) Diagram

#

Description
Price

1

FENDER, REAR (WHITE)

63111-33H00-30H

$640.73

1

FENDER, REAR (YELLOW)

63111-33H00-YU1

Unavailable

2

TAPE, RH | FOR 30H

68175-33H00-FVP

Unavailable

2

TAPE, RH | FOR YU1

68175-33H00-FVR

Unavailable

3

TAPE, LH | FOR 30H

68176-33H00-FVP

Unavailable

3

TAPE, LH | FOR YU1

68176-33H00-FVR

Unavailable

4

EMBLEM "SUZUKI" (WHITE/BLACK) | FOR 30H This part replaces 68721-13A00-8YM.

68721-13A01-8YM

$9.30

4

EMBLEM SUZUKI (YELLOW BLACK) | FOR YU1 This part replaces 68721-13A00-GY8.

68721-13A01-GY8

$12.73

5

CUSHION

33652-20C00

$2.99

6

SHIELD

63261-33H00

$17.37

7

BOLT

09139-06158

$4.90

8

NUT

08319-3106A

$2.03

9

CLIP

09409-07333

$2.31

10

MUDGUARD, RH (BLACK)

63331-33H00-291

$110.28

11

MUDGUARD, LH (BLACK)

63341-33H00-291

$114.48

12

BOLT

09139-06158

$4.90

13

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

14

TOOL ASSY This part replaces 09800-21046.

09800-21094

$24.87

15

HEXAGON, 5

09816-00059

$8.45

16

CLAMP,WRENCH

09822-00003

$10.34
