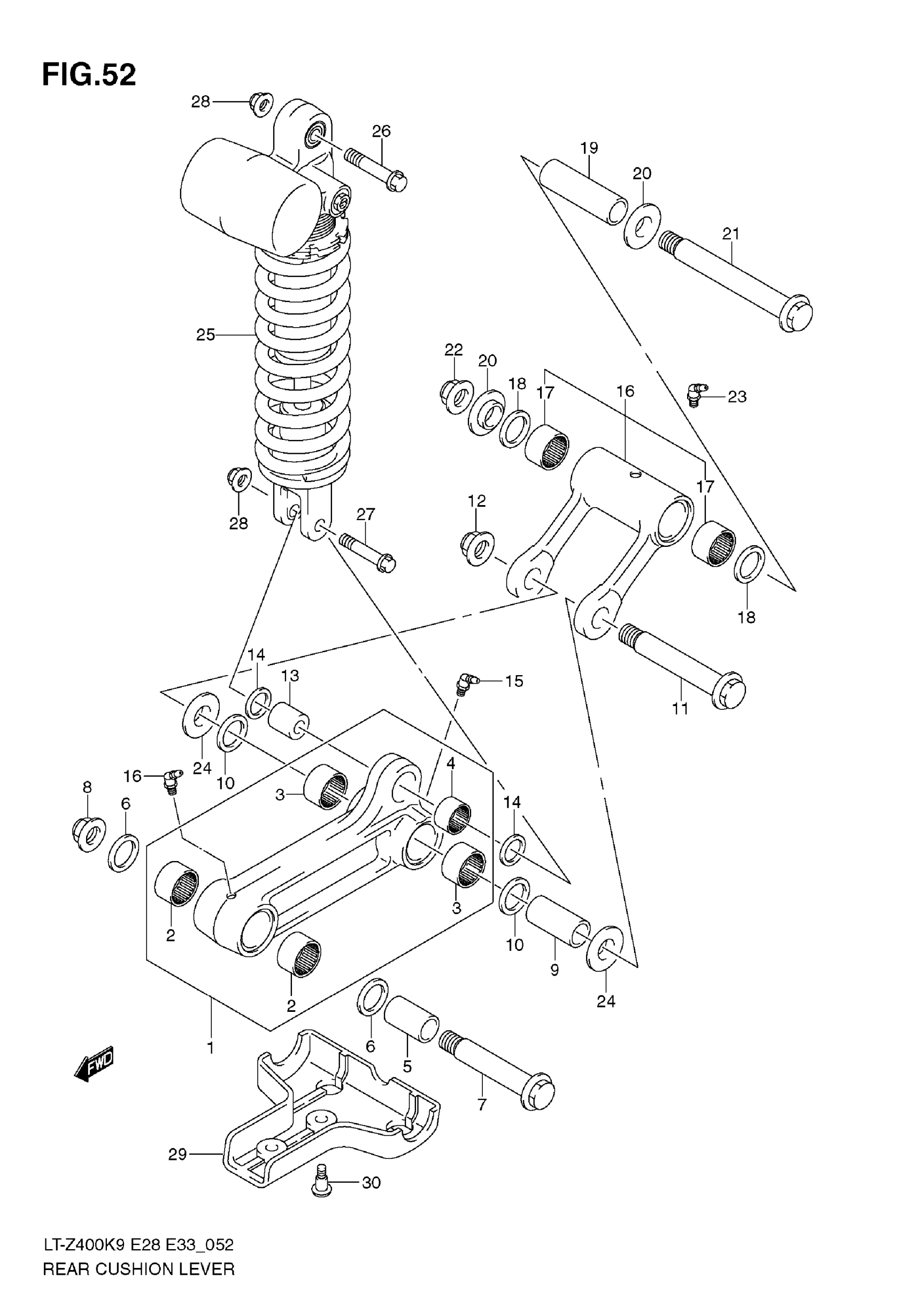

Suzuki LT-Z400 (2009) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, CUSHION | Includes Item(s) 2 - 4

62600-07810

Unavailable

2

BEARING, FRONT (20X27X15)

09263-20086

$15.38

3

BEARING, CENTER (20X27X15)

09263-20086

$15.38

4

BEARING, REAR (20X26X12)

09263-20083

$23.27

5

SPACER, FRONT

62317-37F00

$23.73

6

SEAL, FRONT DUST

62624-14500

$5.91

7

BOLT, FRONT

62658-07G00

$24.46

8

NUT

09159-12056

$6.86

9

SPACER, CENTER

62646-33H10

Unavailable

10

SEAL, CENTER DUST

62624-14500

$5.91

11

BOLT, CENTER

62621-37F00

$25.02

12

NUT

09159-12056

$6.86

13

SPACER, REAR

62684-36E00

$18.70

14

SEAL, REAR

09284-20001

$4.47

15

NIPPLE, GREASE

08351-3100A

$4.21

16

ROD SET, REAR CUSHION | Includes Item(s) 17

62601-33810

Unavailable

17

BEARING, ROD (20X27X15)

09263-20086

$15.38

18

SEAL, DUST

62624-14500

$5.91

19

SPACER, ROD

62646-33H00

Unavailable

20

SPACER, ROD SIDE

62647-37F00

$19.42

21

BOLT, ROD

62621-07G00

$22.08

22

NUT

09159-12056

$6.86

23

NIPPLE, GREASE

08351-3100A

$4.21

24

WASHER, CUSHION LEVER CENTER

08211-20323

$3.30

25

ABSORBER ASSY, REAR SHOCK (RED) | E33 FOR YU1/ANT

62100-33H00-YKS

Unavailable

25

ABSORBER ASSY, REAR SHOCK (WHITE) | E33 FOR 30H

62100-33H00-28W

Unavailable

25

ABSORBER ASSY, REAR SHOCK (RED) | E28 FOR YU1/ANT

62100-33H10-YKS

Unavailable

25

ABSORBER ASSY, REAR SHOCK (WHITE) | E28 FOR 30H

62100-33H10-28W

Unavailable

26

BOLT, UPPER

09103-10301

$6.52

27

BOLT, LOWER

09103-10149

$3.44

28

NUT, UPPER

09159-10115

$3.31

29

GUARD, REAR CUSHION LEVER

62681-07G00

$28.80

30

SCREW

09139-06120

$2.80
