Description

Price

1

HEADLAMP ASSY

35100-45G01-999

$278.22

2

BULB (14V40/40W)

09471-12217

$55.97

3

BRACKET, HEADLAMP ADJUST

35150-33H01

$25.98

4

BRACKET, HEADLAMP MOUNT

35160-33H00

$34.55

5

BOLT, BRACKET

01550-0612A

$1.97

6

SCREW, HEADLAMP (6X22.5)

09139-06118

$3.25

7

NUT, HEADLAMP ADJUST

09152-06023

$3.60

8

CUSHION

09320-10501

$6.23

9

CUSHION This part replaces 09320-07016.

09320-07020

$1.49

10

REFLEX REFLECTOR ASSY, FR SID | E28 This part replaces 35950-14A10.

35950-14A11

$15.23

11

BRACKET, FR SIDE RR, R | E28

35956-33H00

Unavailable

12

BRACKET, FR SIDE RR, L | E28

35957-33H00

Unavailable

13

SCREW, FR SIDE RR BKT (5X8) | E28

09125-05073

$2.38

14

NUT, FR SIDE RR | E28

08316-1005B

$2.50

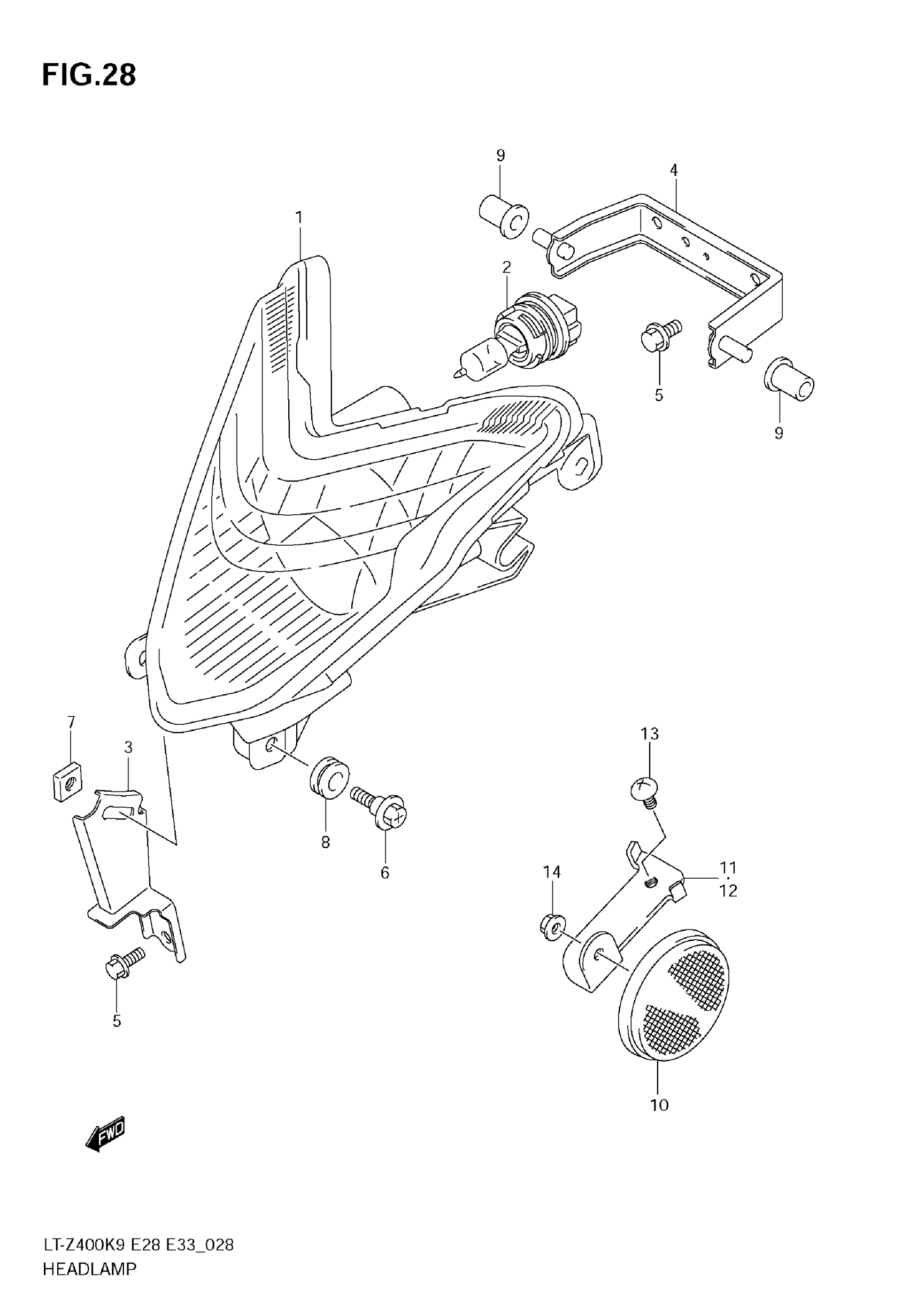

Suzuki LT-Z400 (2009) HEADLAMP Diagram
