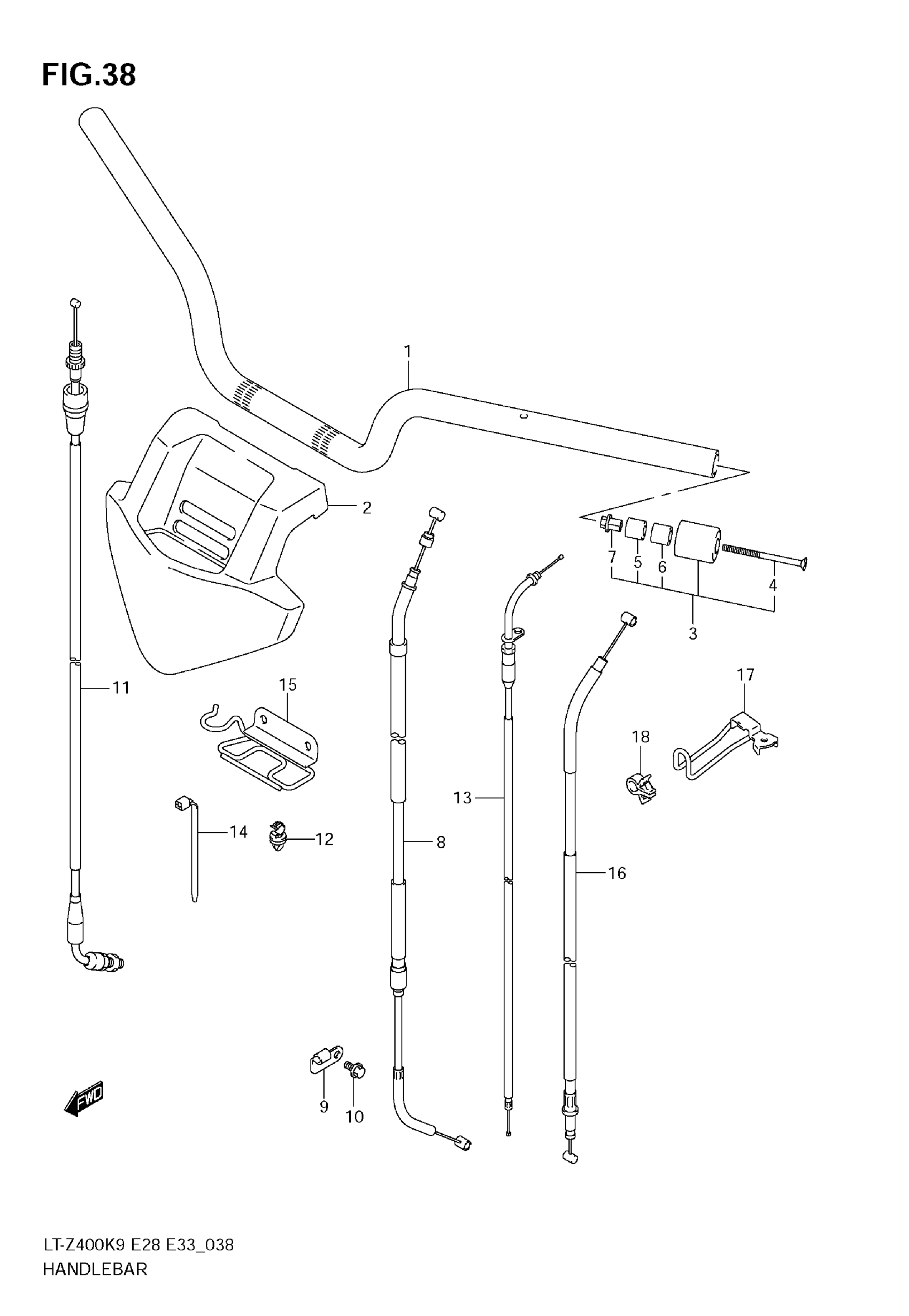

Suzuki LT-Z400 (2009) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-33H00

$278.07

2

COVER, STEERING HEAD (BRACK)

56171-33H00-291

$49.22

3

BALANCER SET,HA | Includes Item(s) 4 - 7 This part replaces 56200-33860.

56200-33862

$37.60

4

SCREW

02122-0670A

Unavailable

5

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

6

.SPACER (6.5X16X15)

09180-06161

$6.53

7

NUT

56273-10G10

$8.65

8

CABLE, CLUTCH

58200-33H00

$76.32

9

STOPPER, CLUTCH CABLE

58634-29F00

$12.57

10

BOLT

01550-0612B

$2.39

11

CABLE ASSY,THRO This part replaces 58300-33H00.

58300-33H01

$34.73

12

CLAMP, THROTTLE CABLE

09403-07331

$3.50

13

CABLE COMP STAR This part replaces 58410-33H00.

58410-33H01

$48.78

14

CLAMP, STATER CABLE

09407-11401

$2.63

15

GUIDE, CABLE

58620-33H00

Unavailable

16

CABLE, PARKING

58810-33H00

$85.15

17

GUIDE, PARKING CABLE

58630-33H00

Unavailable

18

CLAMP

09403-12312

$3.93

18

CLAMP

09403-07327

$3.93
